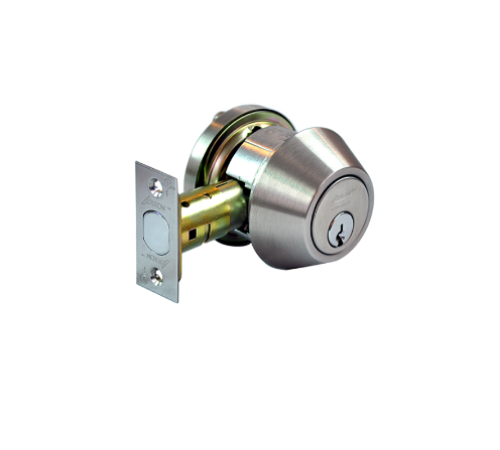

Arrow DBX61 Deadbolt, Single Cylinder

Arrow DBX61 Deadbolt, Single Cylinder, Arrow A Keyway, KA4

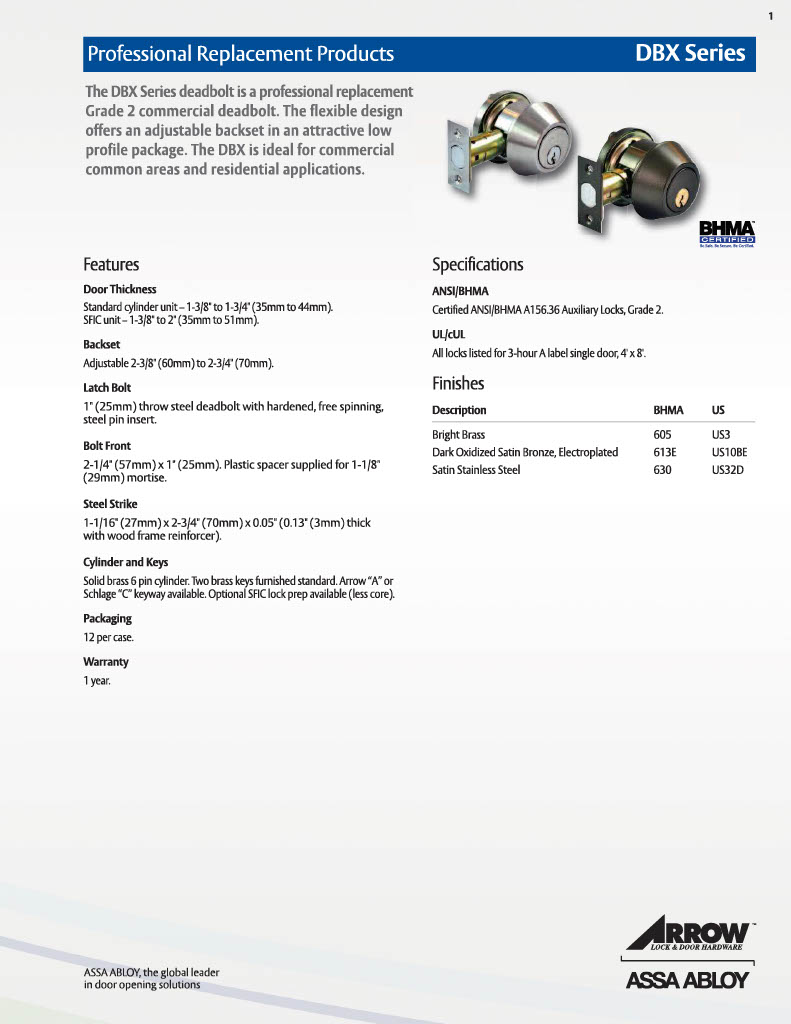

The DBX Series is a Grade 2 Commercial Deadbolt that features an adjustable backset in an attractive low profile package.

Certification: Designed to meet ANSI A156.5, Auxiliary Locks, Grade 2 Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device.

Features:Housing:

Solid zinc cylinder housing.

Backset:2-3/8" (60.32 mm) to 2-3/4" (69.85 mm), adjustable.

Deadbolt fronts: 2-1/4" (57.15 mm) x 1" (25.40 mm). Plastic spacer supplied for 1-1/8" (27.5mm) mortise.

Doors:1-3/8" (34.925 mm) to 2" (50 mm) thick standard.

Strikes:1/32" (2.3mm) steel with wood frame reinforcer.

Latch Bolt:1" (25mm) throw brass deadbolt with hardened, free spinning steel pin insert

Cylinder, Standard:Solid brass, drilled for 6 pins, pinned to 5 for stock. Supplied with two nickel plated brass keys per keyed lock.  Schlage CS keyway standard.

Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best or Falcon type cores.

Finish:US3, US10BL, US32D

Arrow DBX61,  DBX61 Arrow, DBX61 US3, DBX61 US10BL,   DBX61 US32D
