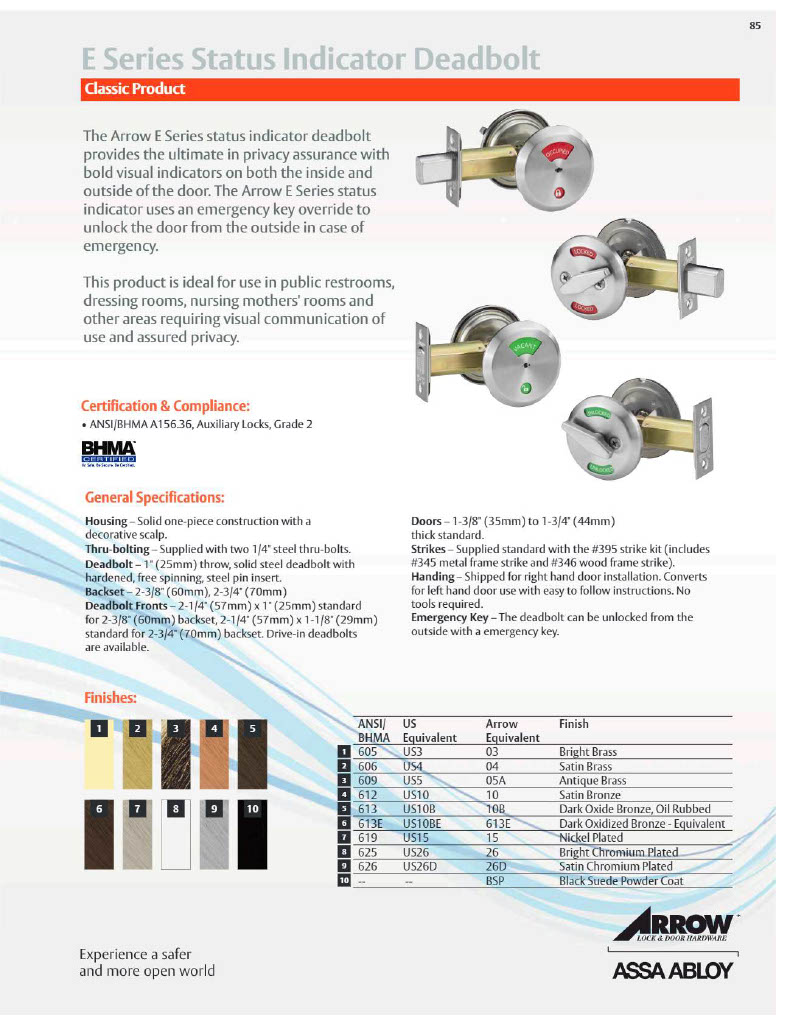

Arrow E50 (old style) Occupancy Indicator Deadbolt

Arrow  E50 Occupancy Indicator Deadbolt

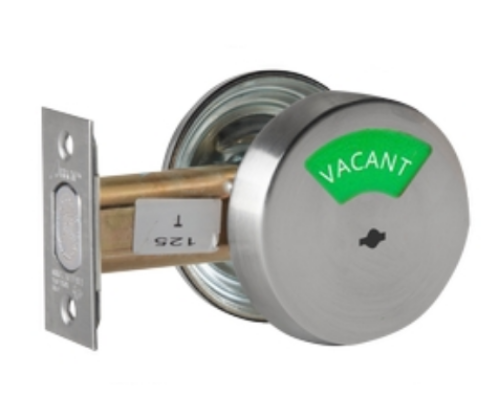

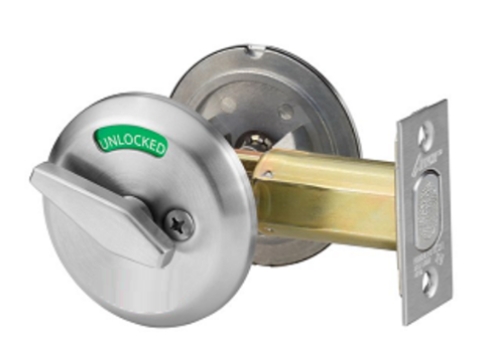

The Arrow Occupancy Indicator uses an emergency key override to unlock the door from the outside in case of emergency.

When the deadbolt is in the locked position, an external slot is exposed that provides for the use of the override key.

When this key is used, the key is captured in the deadbolt and cannot be removed until the deadbolt is retracted or turned to the “Vacant" or unlocked position.

This product is ideal for use in restroom facilities and other areas requiring visual notification of use and secured privacy.

Certification & Compliance:

ANSI A156.5, Auxiliary Locks, Grade 2 General

Specifications:

Housing– Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting– supplied with two 1/4" (6.35mm) steel thru-bolts. Deadbolt – 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Backset– 2-3/8" (60.32mm), 2-3/4" (69.85mm)

Deadbolt Fronts– 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2 -3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset.

Doors– 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.

Strikes– Supplied standard with the #346 wood frame strike.

Handing– All functions are reversible.

Emergency Key– The deadbolt can be unlocked from the outside with a emergency key.

Model:Arrow E50 E5010, E5010B, E5015, E5026, E5026D, E504, E503, E505A
