Product Details

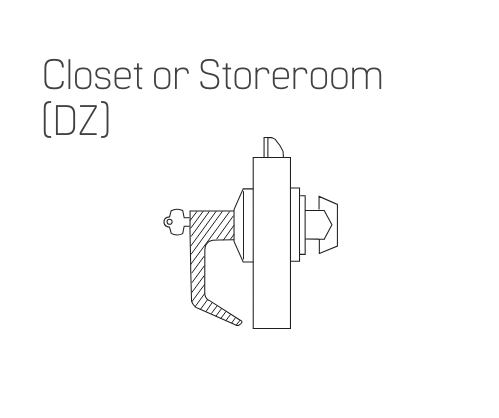

BEST 9K-3-7-DZ Grade 1 Closet or Storeroom*Lever Lock*
Latch operated by:Turning the key in the outside lever Turning the inside closet turn knob
Inside Lever Locked by:Always fixed
Inside Lever Unlocked by:Cannot be unlocked
Inside Locked by:Closet turn knob cannot be locked
Backset- 2 3/4" standard, 3 3/4" available.
Chassis- Critical latch and chassis components are brass or corrosion-treated steel. 2 1/16" diameter to fit 2 1/8" hole in door. (Conforms to ANSI A115.2)
Door thickness- Available for 1 3/4" to 2 1/4" doors only. Spacers available for 1 3/8" doors.

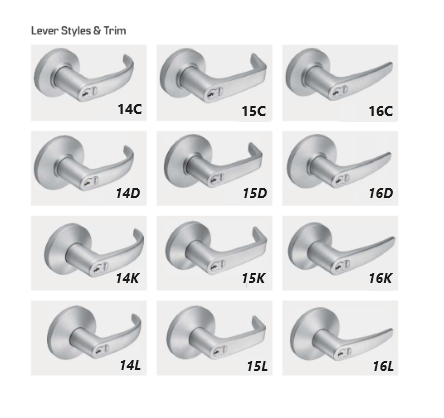

Roses
C - 3" Convex

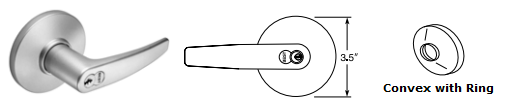

D - 3 1/2" Convex
K - 3" Convex - no ring
L - 3 1/2" Convex - no ring
Finish- 605 (US3) bright brass, 612 (US10) satin bronze, 613 (US10B) oxidized satin bronze, oil rubbed, 626 (US26D) satin chromium plated

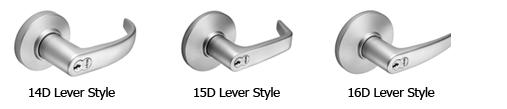

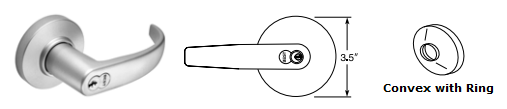

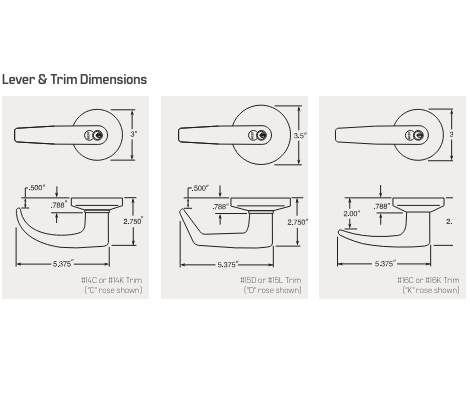

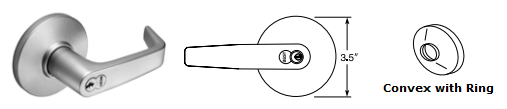

Lever handles- Lever handles are a high-quality zinc alloy. Trim components are brass or bronze. Body is approximately 5/8" in diameter; Handle is approximately 4 3/4" long (from center-line of chassis). #14 and #15 levers conform to California Administrative Code Title 19 and Title 24. All three styles of levers conform to the Illinois Accessibility Standard.
Mounting- In addition to standard door preparation (ANSI A115.2 for 1 3/4 doors), two additional holes are needed for through-bolts. Through-bolts require two 5/16 diameter holes located at 12 o'clock and 6 o'clock positions. A drill jig can be ordered to insure accuracy of the holes.
Projection on door- Approx. 2 3/4" when mounted on 1 3/4" door.
Strike- S3: Conforms to ANSI A115.2 for 1 3/4" doors (4 7/8" x 1 1/4" with curved lip).
Rose locking pin and rose assembly design offers great torque resistance. It prevents the locking pin from twisting, bending, or breaking under attack.The innovative design of the slotted key release cam and locking lug assembly create maximum attack resistance.Even though damaged, the lock still allows key access. In addition, the lever is fully functional from the inside. The hub-mounted torsion spring and strong retractor springs help prevent lever sag and offer a smooth and snappy operation.Strong through-bolt mounting studs increase torque resistance. Heavy rose liner material is highly attack resistant.Strong retractor springs provide resistance to lever sag.Zinc hubs with a shrouded locking lug, guaranteeing higher quality and increased torque resistance.The outside lever sleeve is a seamless one piece construction made of a hardened steel alloy that provides additional reinforcement in the locking lug slot.
Model:Best 9K37DZ, 9K-37DZ14D-S3 9K37DZ14DS3605, 9K37DZ14DS3612, 9K37DZ14DS3613, 9K37DZ14DS3626, 9K37DZ15DS3605, 9K37DZ15DS3612, 9K37DZ15DS3613, 9K37DZ15DS3626, 9K37DZ16DS3605, 9K37DZ16DS3612, 9K37DZ16DS3613, 9K37DZ16DS3626, 9K37DZ14CDS3605, 9K37DZ14CDS3612, 9K37DZ14CDS3613, 9K37DZ14CDS3626, 9K37DZ15CDS3605, 9K37DZ15CDS3612, 9K37DZ15CDS3613, 9K37DZ15CDS3626, 9K37DZ16CDS3605, 9K37DZ16CDZ3612, 9K37DZ16CDS3613, 9K37DZ16CDS3626, 9K37DZ14KDS3605, 9K37DZ14KDS3612, 9K37DZ14KDS3613, 9K37DZ14KDS3626, 9K37DZ15KDS3605, 9K37DZ15KDS3612, 9K37DZ15KDS3613, 9K37DZ15KDZ3626, 9K37DZ16KDZ3605, 9K37DZ16KDS3612, 9K37DZ16KDS3613, 9K37DZ16KDS3626, 9K37DZ14LDS3605, 9K37DZ14LDS3612, 9K37DZ14LDS3613, 9K37DZ14LDS3626, 9K37DZ15LDS3605, 9K37DZ15LDS3612, 9K37DZ15LDS3613, 9K37DZ15LDS3626, 9K37DZ16LDS3605, 9K37DZ16LDS3612, 9K37DZ16LDS3613, 9K37DZ16LDS3626
