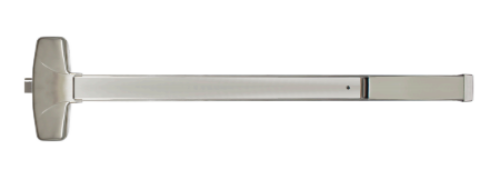

Cal-Royal 6600EO / F6600EO Rim Push Bar Exit Panic Device

Cal-Royal 6600EO / F6600EO Rim Push Bar Exit Panic Device

Door Thickness:1-3/4" thick standard optional 2-1/4" thick. 4 1/2" minimum Stile Width for single or double door application using standard 938 strike and pull lever, thumbpiece and escutcheon trims.

Chassis:Steel material for Panic and Fire Grade.

Cover:Zinc or Stainless Steel S304 material. Covers stock hollow metal doors with 161 cut out

Mounting:Furnished with wood and machine screws. Available thru-bolts on request. (5) Thru-Bolts are included and standard packaging on fire rated devices

End Cap:Steel or Stainless Steel S304 construction

End Bracket:Steel material

Hand:Non-Handed

Latch Bolt:Stainless Steel S304, 3/4" throw with anti-pick feature

Spring:Stainless Steel S304 material

ANSI Standard:A156.3, Grade 1

Rail Assembly:Heavy Gauge Extruded Steel body with Steel or Stainless Steel S304 push pad

Strike:938 packed standard (See strike page)

Dogging Feature:Allen-Type key furnished standard on non-fire labeled devices

Mullion:Available

UL and ULC Listed:6600 Series for Panic. F6600 Series for Fire Exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

Dimensions: Touchbar height to finished floor: 41" (1041mm) at center

Touchbar projection: Neutral 2-5/8" (67mm), Depressed 1-7/8" (48mm)

Center case:8-1/16 x 2 3/4 x 2 1/2 (205 mm X 70 mm X 63 mm)

6600EO36 And F6600EO36 Actual Length: 32" - Max Cut Down: 6" Door size: 30" to 36" door width - Push Bar Length 21"

6620EO48 And F6620EO48 Actual Length: 44" - Max Cut Down: 12" Door size: 36" to 48" door width - Push Bar Length 26 1/2"

Model: Cal Royal, 6600EO36, F6600EO36, 6620EO48, F6620EO48, US32D, US3, US4, US10, US10B, L1 Black

All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters' Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes

All springs shall be of stainless steel throughout

All exit devices shall be of chassis mounted unit construction

All exit devices shall be ANSI A156.3, Grade 1

All exit devices shall be of touch bar design with smooth operation and be operative over 2/3 of the door's clear opening width
