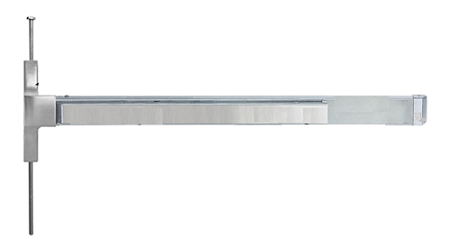

Cal-Royal GLSCVR9800 / FGLSCVR9800 Narrow Stile Concealed Vertical Rod Panic Bar Exit Device

Product Details

Cal-Royal GLSCVR9800 / FGLSCVR9800 Narrow Stile ConcealedVertical Rod Type Panic And Fire Exit Devices

For Doors:Metal or Aluminum Glass doors with 1 3/4" minimum stile width, 1 3/4" thickness for single or double door application

Chassis:Non-ferrous Alloy (Panic Grade)

Cover:Non-ferrous plated material.

Mounting:Furnished with wood and machine screws   Hand:Handed. Specify RHR or LHR

Top and Bottom Bolts:Stainless Steel. Top and bottom bolt travel 7 /16" (11 mm) Stainless Steel. Adjustable to 1" (25 mm)

Spring:Stainless Steel throughout

ANSI Standard: A156.3, Grade 1

Rail Assembly:Heavy gauge extruded aluminum body with Stainless Steel push pad

Strike:260 Top and 265 Bottom strikes packed standard

Dogging Feature:Available for 36" bar only. Allen-type key furnished standard.

Mullion:Available

UL and ULC Listed*:*GLSCVR9800 Series for Panic & Safety for all types of 4' x 8' single doors and 8' x 8' double doors for Panic & Safety. FGLSCVR9800 Series for all types of 4' x 8' single doors for up to 3 hour fire labelled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

Dnimensios:

Push Rail Height To Tinished Floor:41" (1041 mm) at center

Push Rail Projection:Neutral 3 5/8" (92 mm) - Depressed 2 7/8" (73 mm)

Center Case:8 1/16" x 1 - 1/8" x 2 3/8" (205 mm x 29 mm x 60 mm)

Model:GLSCVR983684 And FGLSCVR983684 Actual lenght: 34 17/32" Max cut down: 6" Door size: 30" to 36" door width

Model:GLSCVR984884 Actual lenght: 46 11/32" Max cut down: 18" Door size: 36 to 48 door width

Model: GLSCVR9800, FGLSCVR9800, GLSCVR983684,FGLSCVR983684, GLSCVR984884, FGLS9800EO48, FGLSCVR983684, US32D, US10B, US3

Cal-Royal GLSCVR9800 / FGLSCVR9800 Narrow Stile Concealed Vertical Rod Panic Bar Exit Device

SKU: GLSCVR9800

In Stock

Size *

Model *

Finish *

US32D - Satin Stainless Steel
US32D - Satin Stainless Steel
US10B - Oil Rubbed Bronze [+$43.84]
US10B - Oil Rubbed Bronze [+$43.84]

Handing *

Alarm *

Electrical Options *

Signal Switch Options *

$726.27

$860.77

You saved $134.50

About this item



Cal-Royal GLSCVR9800 / FGLSCVR9800 Narrow Stile ConcealedVertical Rod Type Panic And Fire Exit Devices

For Doors:Metal or Aluminum Glass doors with 1 3/4" minimum stile width, 1 3/4" thickness for single or double door application

Chassis:Non-ferrous Alloy (Panic Grade)

Cover:Non-ferrous plated material.

Mounting:Furnished with wood and machine screws   Hand:Handed. Specify RHR or LHR

Top and Bottom Bolts:Stainless Steel. Top and bottom bolt travel 7 /16" (11 mm) Stainless Steel. Adjustable to 1" (25 mm)

Spring:Stainless Steel throughout

ANSI Standard: A156.3, Grade 1

Rail Assembly:Heavy gauge extruded aluminum body with Stainless Steel push pad

Strike:260 Top and 265 Bottom strikes packed standard

Dogging Feature:Available for 36" bar only. Allen-type key furnished standard.

Mullion:Available

UL and ULC Listed*:*GLSCVR9800 Series for Panic & Safety for all types of 4' x 8' single doors and 8' x 8' double doors for Panic & Safety. FGLSCVR9800 Series for all types of 4' x 8' single doors for up to 3 hour fire labelled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

Dnimensios:

Push Rail Height To Tinished Floor:41" (1041 mm) at center

Push Rail Projection:Neutral 3 5/8" (92 mm) - Depressed 2 7/8" (73 mm)

Center Case:8 1/16" x 1 - 1/8" x 2 3/8" (205 mm x 29 mm x 60 mm)

Model:GLSCVR983684 And FGLSCVR983684 Actual lenght: 34 17/32" Max cut down: 6" Door size: 30" to 36" door width

Model:GLSCVR984884 Actual lenght: 46 11/32" Max cut down: 18" Door size: 36 to 48 door width

Model: GLSCVR9800, FGLSCVR9800, GLSCVR983684,FGLSCVR983684, GLSCVR984884, FGLS9800EO48, FGLSCVR983684, US32D, US10B, US3
