Cal Royal NM8010 Heavy Duty Grade 1, Passage Mortise Lockset

The Cal-Royal NM8010 is built to ANSI A156.13 Series 1000, which is the Extra Heavy Duty classification. That's the top tier for commercial mortise locks, a step above standard heavy duty, and it's why the NM Series ends up on door schedules for schools, hospitals, government buildings, and high-traffic commercial facilities across the US. It exceeds one million operating cycles in testing, carries a UL Listed 3-hour fire rating, and is approved under both the Florida Building Code and Texas Hurricane evaluation programs. Very few mortise locks at this price point carry all of those certifications together.

For the full NM Series function lineup or other Cal-Royal mortise configurations, browse Cal-Royal mortise locks, or view all commercial mortise locks across every brand we carry.

NM8010 Function: Passage, ANSI F01

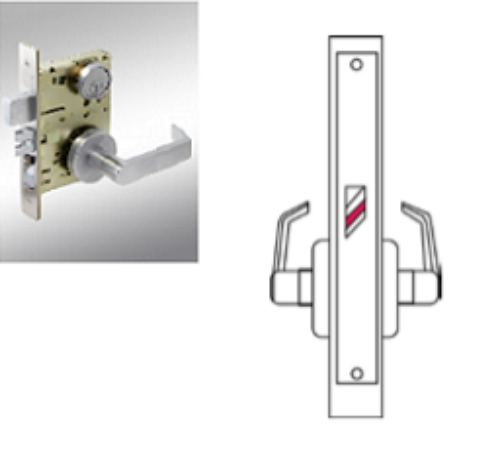

The NM8010 is the passage function in the NM Series. ANSI Function F01 means the latch bolt is operated by lever from either side at all times, with no cylinder. The inside lever is always free for immediate egress. There's no key, no turn button, and no locking mechanism. It's specified for corridors, interior hallways, vestibules, and any opening where free passage is required in both directions without restricted entry. If your project requires an entrance, storeroom, or classroom function, those are separate NM Series SKUs: NM8050 for office/entrance (F04), NM8070 for classroom (F05), and NM8080 for storeroom (F07).

Cal-Royal NM8010 Technical Specifications

ANSI standard: A156.13, Series 1000, Extra Heavy Duty, Operational and Security Grade 1. Federal Specification Type 86 conformance. Cycle test: exceeds 1,000,000 cycles. UL Listed fire rating: 3-hour "A" Label, for use on single and pairs of fire doors. UL10C and UBC 7-2-1997 compliant. BHMA Certified Lifetime Warranty. Meets Buy American Act. Hurricane approved: Florida Building Code FL13922-R8 and Texas Evaluation ID DR-472. Door thickness: 1-3/4". Backset: 2-3/4". Handed: yes, easily field reversible. Available finishes: 7 standard ANSI/BHMA finishes. Multiple lever designs available.

Lock Case and Front Construction

The NM8010 lock case is heavy gauge zinc chromate steel, which provides rust resistance without requiring stainless steel pricing. The front plate is heavy gauge steel measuring 8" x 1-1/4" x 3/32", accommodating both flat doors and doors beveled 1/8" in 2". Over the steel front sits an armored wrought brass face, attached by machine screws to the lock case. This layered construction is what separates the NM Series from budget mortise alternatives that use thinner gauge steel throughout. The strike is a non-handed curved brass piece measuring 4-7/8" x 1-1/4", with a curved-up strike available on request. The "F" mark is stamped on the strike, confirming UL fire listing compliance for the complete assembly.

Hurricane Approval: What It Means and Why It Matters

Most distributors don't mention it, but the Cal-Royal NM Series carries Florida Building Code approval (FL13922-R8) and Texas Department of Insurance Evaluation ID DR-472. Both programs require independent testing of door hardware under wind and impact loading beyond standard ANSI requirements. For projects in Florida, Texas, and other hurricane-exposure regions, specifying non-approved hardware can create compliance issues during final inspection. The NM8010 clears both programs, which simplifies specification in coastal and high-wind markets.

NM Series Lever and Finish Options

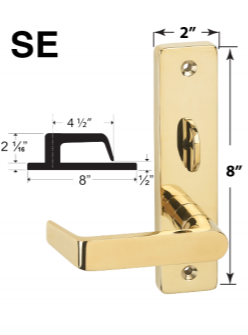

The NM8010 ships with sectional lever trim. Multiple lever design options are available across the NM Series, including standard and specialty profiles. Seven architectural finishes are available per ANSI/BHMA A156.18 standards. The lockset is handed at the factory and field reversible after installation, which covers both RHR and LHR door swings without ordering a separate version.
