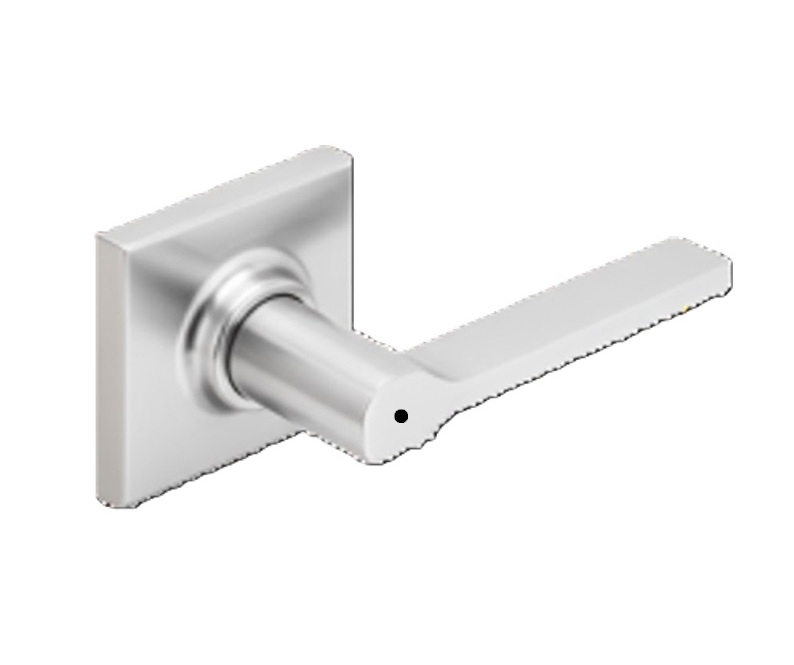

Cal-Royal ROC20-SQ US26D Grade 2, Privacy Lock, Satin Chrome

Cal-Royal ROC20-SQ US26D Grade 2, Privacy Lock, Satin Chrome

ANSI: F76

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button.

Door Range - 1-3/8" to 2" thickness doors.

Backset - 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front - 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike - ASA strike standard, "T" and full lip strike available.

Latchbolt - 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
