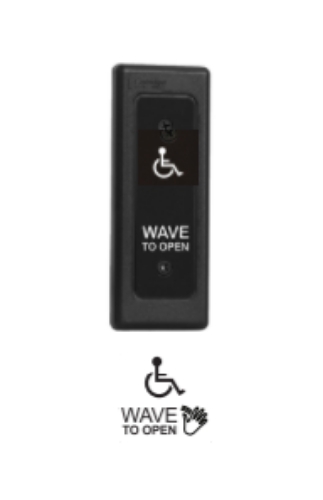

Camden CM-332/42N SureWave CM-332 Series Touchless Switch, 1" to 28" Range, 2 Relays, Narrow Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish

Camden CM-332/42N SureWave CM-332 Series Touchless Switch, 1" to 28" Range, 2 Relays, Narrow Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish

CM-332 touchless switches provide "state of the art" door activation and control while eliminating the spread of germs.

These line powered touchless switches offer an adjustable operating range, selectable motion sensing and relay operating modes, hold open timer(s), REX and door position inputs, and the option for a light ring and wireless transmitter.

MODEL: CM-332  - Wired Touchless Switch, w/ built-in door control, 2 Relays, option for CM-TX99 wireless transmitter and light ring.

CM-330/324/325 FEATURES:- Wired, wireless and hybrid (wirless/wired) models.

• Indoor/outdoor use. -4 F to +153 F (-20 C to +85 C) operating temp. Gasket included in package.

• Battery powered wireless models offer 2 year battery life using standard 'AA' alkaline batteries.

- Line powered models offer 12/24V AC/DC operation.

• 1 and 2 relay wired models, SPDT, Form 'C'.

• Narrow (jamb), single and and double gang faceplates.

• Polycarbonate (black) and stainless steel faceplates.

• Advanced active infra-red technology with fast response.

• Heavy duty 3 or 5 Amp rated relay.

• Adjustable operating range up to 28", refer to model specification.

• CM-331/332 Series: Selectable auto range (operation) mode of up to 6".

• Adjustable time delay, refer to model specifcation.

• Selectable fail safe/fail secure operation.

• CM-331/332 Series: Active output for external alrm, LED or annunciator.

• CM-332/333 Series: 'Request to exit' and external door contact inputs.

• CM-331/332 Series: Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status.

**SPECIFICATIONS:

FACEPLATE SIZE:**N - Narrow Compatible narrow jamb surface mount box CM-23D.

FACEPLATE MATERIAL:  Supplied Black Polycarbonate Standard.

FACEPLATE GRAPHIC:  42.

NO. OF IR SENSORS:2.

OPERATING VOLTAGE:12-24 VOLTS, AC/DC - 10%.

CURRENT DRAW:40mA.

STANDARD OPERATING RANGE:1"- 28" (25.4MM - 711.2M).

AUTO OPERATION RANGE: 6"- 40" (152.4MM - 1.016M) HAND. 6"- 72" (152.4MM - 1.820M) BODY.

OPERATING MODES (MOTION SENSING MODES): MOMENTARY. MOMENTARY WITH ALARM. MAINTAINED (LATCHING). AUTO RANGE.

RELAY OPERATING MODES: SINGLE EVENT. TOGGLE. SEQUENCE. SECURITY.

RELAY OUTPUT:(2) FORM "C" (SPDT).

RELAY CONTACT RATING:3 AMPS @ 30 VDC.

OUTPUT TYPE:FAIL SAFE OR FAIL-SECURE.

INPUTS:'REQUEST TO EXIT' EXTERNAL (DOOR CONTACT) INPUT.

CURRENT DRAW:8mA MAX.
