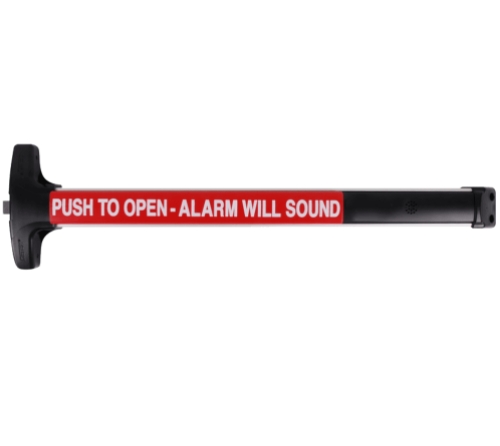

Detex V40 EA LD 628, Hardwired Alarmed Rim Exit Device - Less Dogging - Aluminum

Detex V40 EA CD, Hardwired Alarmed Rim Exit Device -Less Dogging

LD - Less Dogging.

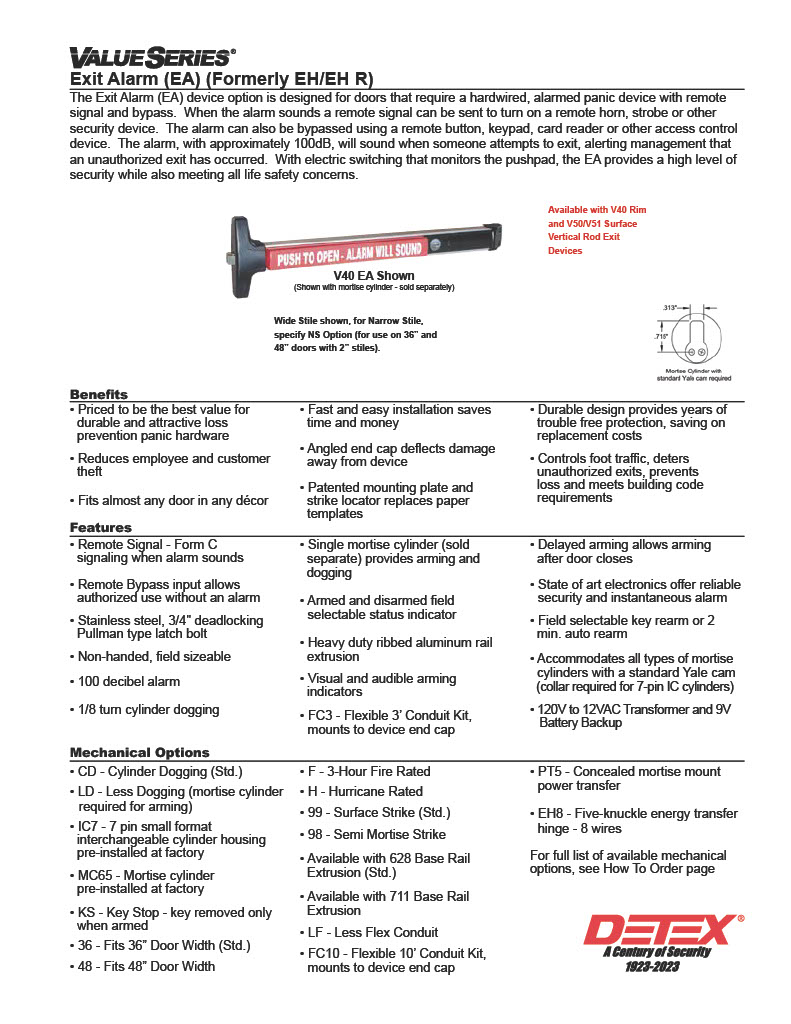

EA - Exit Alarm  Standard Package Includes: - Switch monitors pushpad movement and triggers alarm - Manual Key Arming standard or field-selectable 2-minute auto rearm - Remote Alarm Relay output (std.) Common, Normally Open or Normally Closed Relay contacts - Bypass Alarm Relay input (std.) Normally Open Relay Contacts - Low-Battery Alert (std.), field-selectable option to remove backup battery / disable low-battery alert - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only) - 120V to 12VAC Transformer and 9V Battery Backup - Flexible 3' Conduit Loop and Endcap Connector - Pushpad Signage "Push to Open Alarm Will Sound"

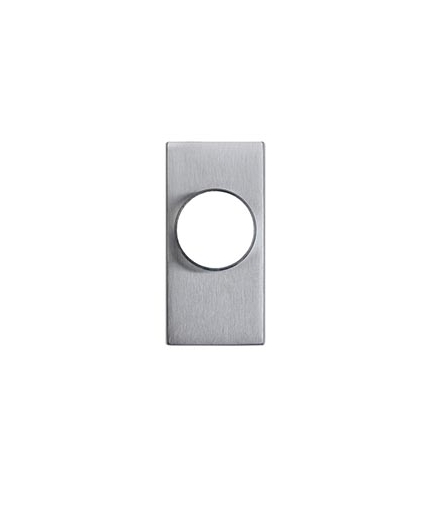

Trims For the V40 series are: *01P, 01PN, 02A, 02AN, 02WP, 03P, 03PN, 03CN, 03WS, 03A, 03AN, 02BN, 08BN, 09BN, 14BN.*

36- Fits 36" Door Width 48- Fits 48" Door Width

Option - KS - Keystop feature installed

Powered by 12V or 24 AC/DC power, with 9-volt battery backup (12V AC standard)

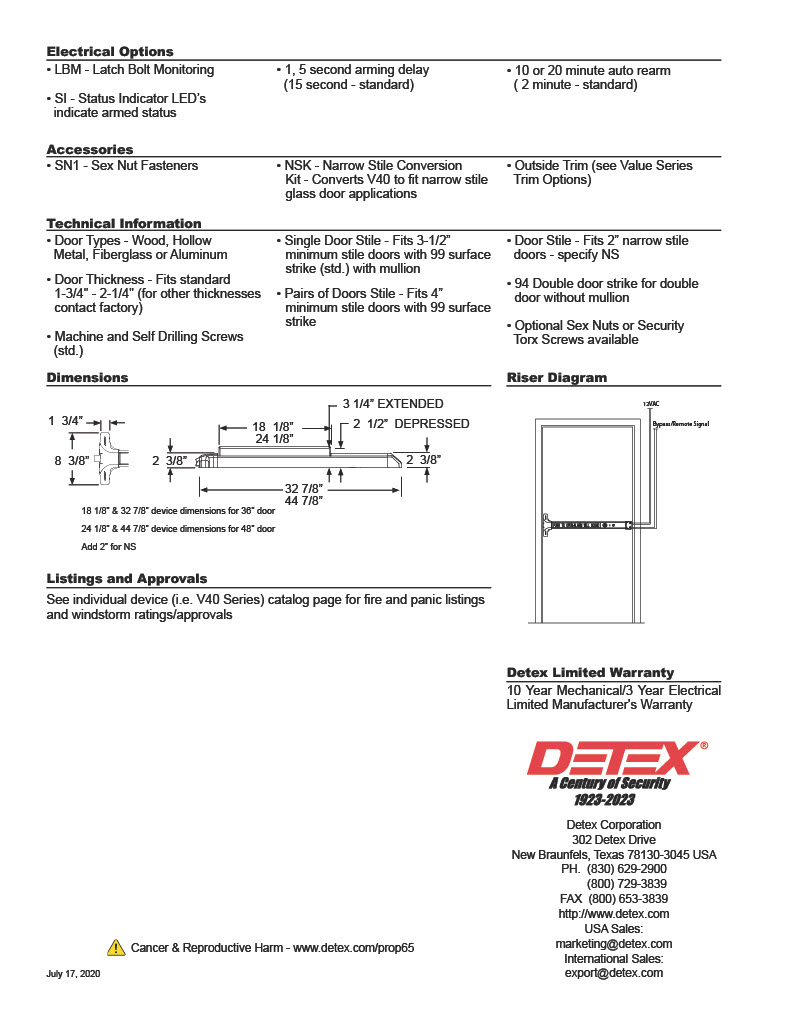

Door Thickness: 1-3/4" - 2-1/4"

Door Stile: Single Door Stile - Fits 3-1/2" minimum stile doors with 99 surface strike (std.) with mullion  Pairs of Doors Stile - Fits 4" minimum stile doors with 99 surface strike

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

Stainless steel, 3/4" deadlocking Pullman-type latch boltSingle mortise 1-1/8" cylinder (sold separate) provides arming and dogging - 1/8 turn cylinder dogging

Field selectable key rearm or 2 min. auto rearm

Visual and audible arming indicators

Armed and disarmed field selectable status indicator

100+ Decibel alarm

10 Year Mechanical/3 Year Electrical  - Limited Manufacturer's Warranty

Model:Detex V40EA, Detex V40xEA, Detex V40EHLD, Detex V40EALD628, Detex V40EALD6289936, V40EA Detex, Detex V40EALD6289948, V40EALC Detex,

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4’x10’ single doors and pairs of 4’x8’ with F90KR keyed removable mullion

Meets ADA requirements

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

California State Fire Marshall 4140-0127:105 and 3725-0127:108
