Product Details

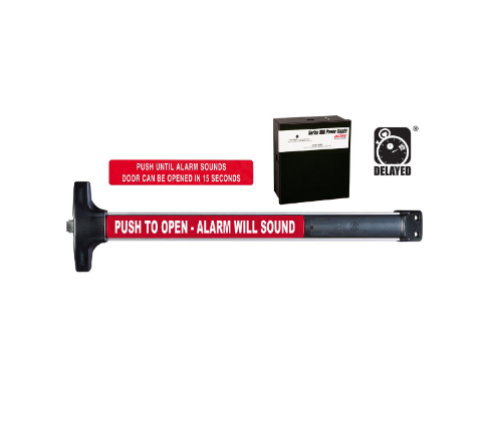

Detex V40 EE LD Delayed Egrees Rim Exit Device

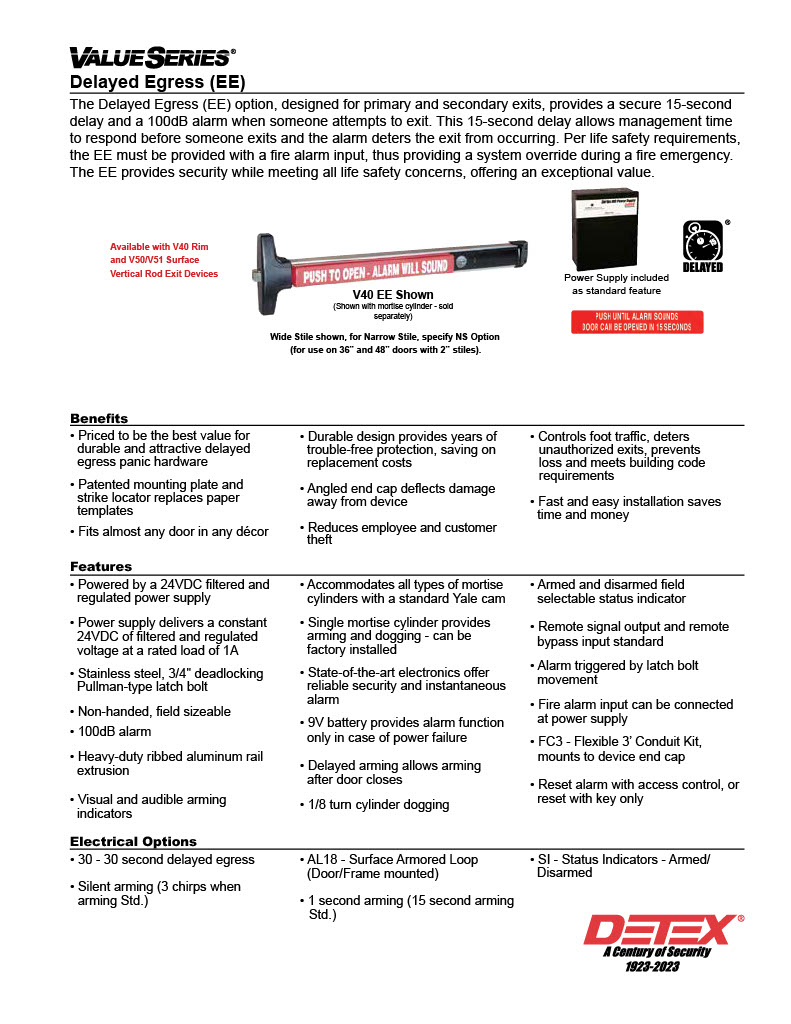

Delayed Egress (EE) - Available on all VS Devices
Standard Package Includes:
- Switch monitors latch bolt and triggers alarm
- 15-second Delayed Egress with dead latch monitoring
- 15-second arming delay (AD) with extended bypass (alarm arms after door closes)
- 1-second nuisance delay
- Comes standard with 24V Filtered and Regulated Power Supply with simplified fire loop connections
(NOTE: Detex Power Supply required and included with standard EE Package, can power both
devices for a pair of doors, specify V40 EExPSO for second door)
- Remote Alarm Relay output (std.) Common, Normally Open or Normally Closed Relay contacts
- Bypass Alarm Relay input (std.) Normally Open Relay Contacts
- Low-Battery Alert (std.), field-selectable option to remove backup battery / disable low-battery alert
- Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only)
- Delayed Egress Door Sign (ECL-395 English, 15 seconds, Red)
- Flexible 3' Conduit Loop and Endcap Connector
- Pushpad Signage "Push to Open Alarm Will Sound"
For non-standard arming delay, non-standard nuisance delay, 2-minute alarm silence, non-extended
bypass, set grant times and other non-standard options or features, contact factory.
Trims For the V40 series are:
*01P, 01PN, 02A, 02AN, 02WP, 03P, 03PN, 03CN, 03WS, 03A, 03AN, 02BN, 08BN, 09BN, 14BN.*
Benefits
- Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
Features
- Includes delayed egress panic bar, 24VDC filtered and regulated power supply, door sign and 3’ conduit loop
- Powered by a 24VDC filtered and regulated power supply
- Power supply delivers a constant 24VDC of filtered and regulated voltage at a rated load of 1A
- Stainless steel, 3/4" deadlocking Pullman-type latch bolt
- Non-handed, field sizeable
- 100dB alarm
- 1/8 turn cylinder dogging
- Sturdy angled end-cap
- Heavy-duty ribbed aluminum rail extrusion
- Accommodates all types of mortise cylinders with a standard Yale cam
- Single mortise cylinder provides arming and dogging - Sold Separately
- Visual and audible arming indicators
- 9V battery provides alarm function only in case of power failure
- Armed and disarmed field selectable status indicator
- Delayed arming allows arming after door closes
- Remote signal output and remote bypass input standard
- Alarm triggered by latch bolt movement
- Fire alarm input can be connected at power supply

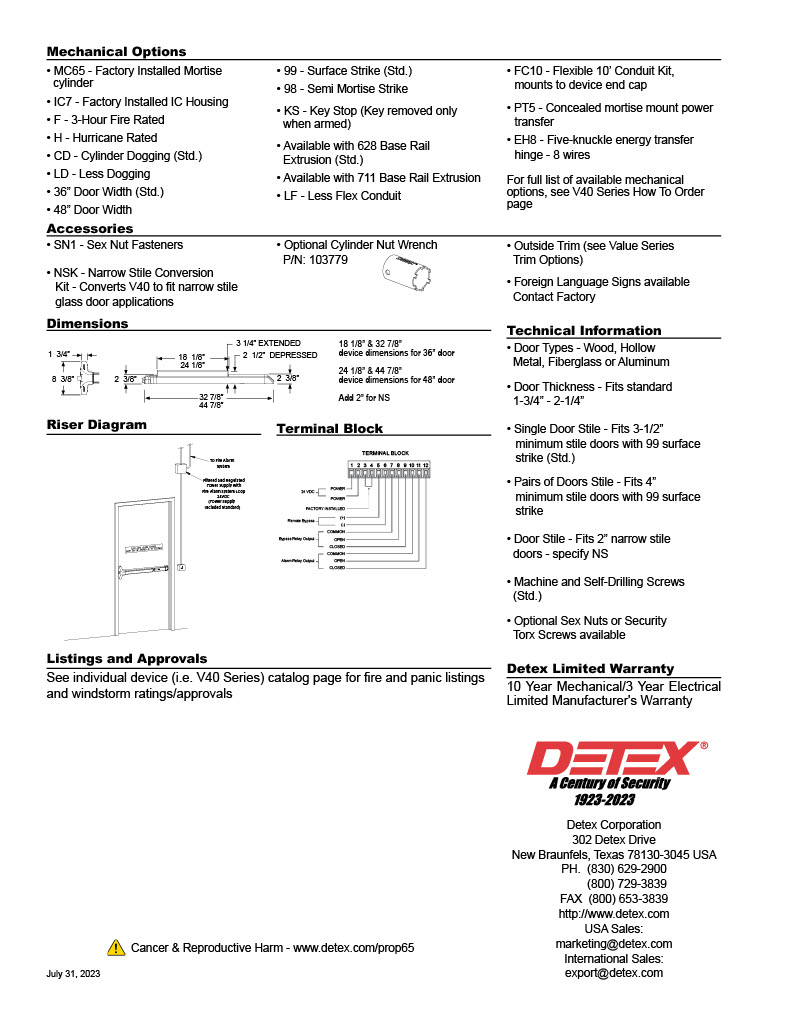

Mechanical Options
- CD - Cylinder Dogging (Std.)
- 36" Door Width (Std.)
- 48" Door Width
- 99 - Surface Strike (Std.)
98 - Semi Mortise Strike
- Available with 628 Base Rail Extrusion (Std.)
- Available with 711 Base Rail Extrusion
Accessories
- NSK - Narrow Stile Conversion Kit - Converts V40 to fit narrow stile glass door applications
- Outside Trim -See Below
- Foreign Language Signs available Contact Factory
Technical Information
- Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness - Fits standard 1-3/4" - 2-1/4"
- Machine and Self-Drilling Screws (Std.)
- Optional Sex Nuts or Security Torx Screws available
Detex Limited Warranty
10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
Model:Detex V40EE, V40EECD, V40EECD628, V40EECD6289936-48V40EECD628993648
**
**
