Detex V40 EX W LD 628 Electric Request to Exit Switching Weatherized Device

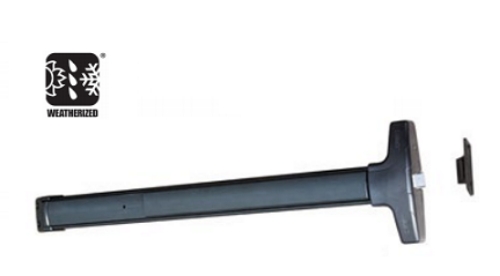

Detex V40 EX-W LD Electric Request to Exit Switching Weatherized Device

Benefits

- Priced to be the best value for panic exit hardware

- Provides reliable loss prevention protection 24-hours a day

- Rugged, weatherized and corrosion resistant for years of reliable service

- Integrates with other loss prevention equipment

- Large, steel reinforced pushpad with black ABS cover resists damage

- Secure installation prevents costly mistakes and enhances security

- Withstands over 1400 pounds of static pull force for greater security

- Fits almost any door in any décor

- Patented back plate and plastic strike locator designed for perfect alignment with door and frame without paper template

Trims For the V40 series are: *01P, 01PN, 02A, 02AN, 02WP, 03P, 03PN, 03CN, 03WS, 03A, 03AN, 02BN, 08BN, 09BN, 14BN.*

Features

- Stainless steel, 3/4" throw deadlocking latch bolt

- Heavy-duty angled end cap

- Tamper resistant switching electronically monitors pushpad

- Covers a 161 door prep

- Standard SPDT (Form C) switch with three wires, Yellow (N/O), Brown (Common) & Green (N/C), creating either a Normally Open or Closed contact

- Weatherized switch for signalling at low currents to a central control station

- Fits 2" narrow stile doors with optional narrow stile door kit

- With stands environmental elements when installed on gates or exterior doors

Mechanical Options

- LD - Less Dogging

- 36 - Fits 36" Door Width (Std.)

- 48 - Fits 48" Door Width

- 99 - Surface Strike (Std.)

- 98 - Semi Mortise Strike -See Below

- 95 - Double Door Strike -See Below

- GTPLV40 - Adjustable Gate Plate

- Available with 628 Base Rail Extrusion (Std.)

- Available with 711 (Black) Base Rail Extrusion

Accessories

 NSK - Narrow Stile Conversion Kit - Converts V40 to fit narrow stile glass door applications

 Outside Trim (see Value Series Trim Options) -See Below

Detex Limited Warranty

10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty

Model:Detex V40EX, V40EXLD, V40EXLD628, V40EXLD6289936-48, V40EXLD628993648

Technical Information

- Door Types - Wood, Hollow Metal, Fiberglass or Aluminum

- Door Thickness - Fits standard 1-3/4" - 2-1/4"

- Optional Sex Nuts or Security Torx Screws available

Listings And Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR key removable Mullion

UL1034-34 Temperature Section 34 [Temperature Range 31 F (-35 C) to 151 F (+66 C)]

UL1034-54 Dust Section 54

Meets ADA requirements

MIL-STD 810F(G), Method 506.4 (Driving Rain Test) MIL-STD 810F(G), Method 509.4 (Salt fog Test)

UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02 State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall - 4140-0127:105 & 3725-0127:108
