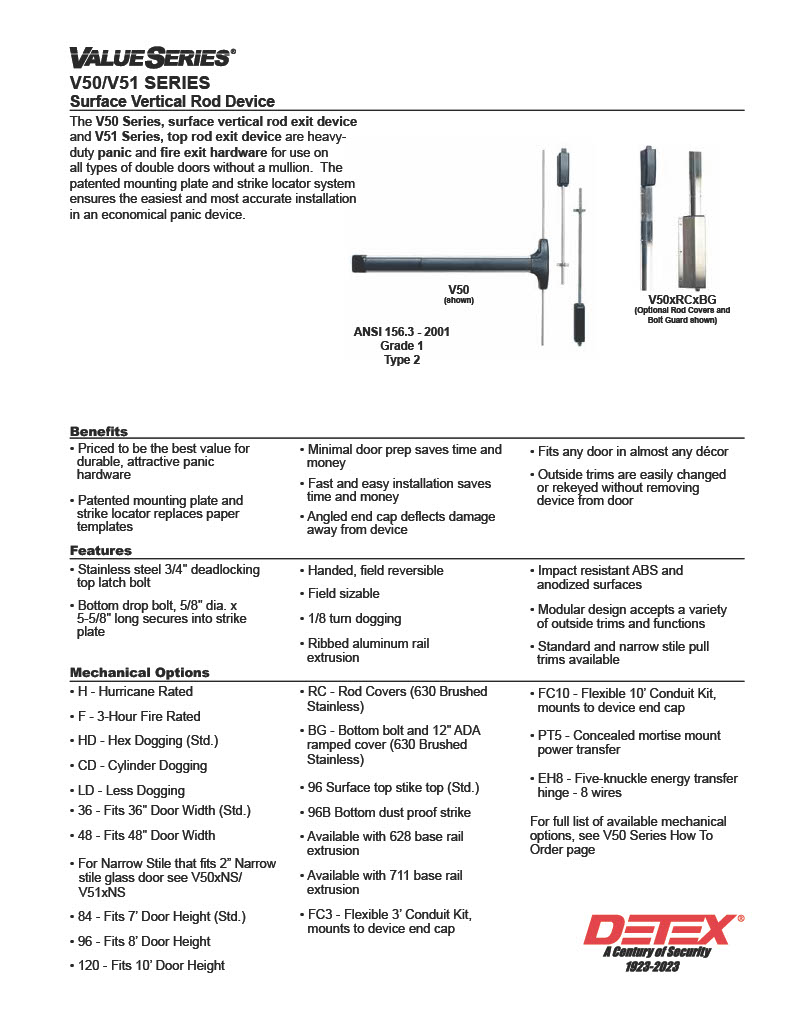

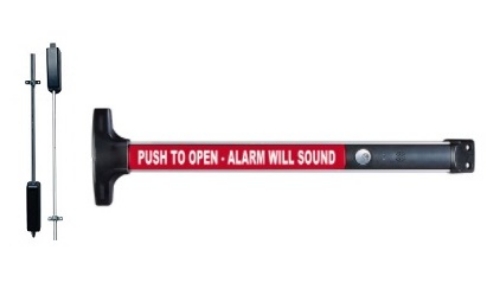

Detex V50 EE CD 628 96 Value Series Wide Stile Surface Vertical Rod Exit Device, Delayed Egress, Cylinder Dogging

Detex V50 EE CD 628 96 48X84 Value Series Wide Stile Surface Vertical Rod Exit Device, Delayed Egress, Cylinder Dogging, 36" - Device for 84 In. Door Height

CD- Cylinder Dogging (Std.) Cylinders not included.   (Cylinder (C65) or Interchangeable core housings (IC7)

• Priced to be the best value for  durable, attractive panic   hardware
• Patented mounting plate and  strike locator replaces paper  templates
• Outside trims are easily changed or rekeyed without removing   device from door
• Minimal door prep saves time and  money
• Fast and easy installation saves   time and money
• Angled end cap deflects damage  away from device
• Fits any door in almost any decor Benefits

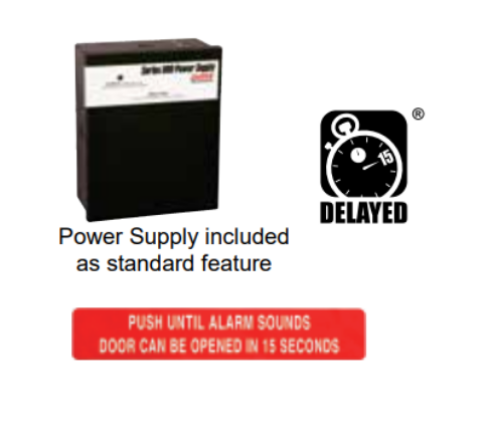

Delayed Egress (EE)- Available on all VS Devices Standard Package Includes: - Switch monitors latch bolt and triggers alarm - 15-second Delayed Egress with dead latch monitoring - 15-second arming delay (AD) with extended bypass (alarm arms after door closes) - 1-second nuisance delay - Comes standard with 24V Filtered and Regulated Power Supply with simplified fire loop connections (NOTE: Detex Power Supply required and included with standard EE Package, can power both devices for a pair of doors, specify V40 EExPSO for second door) - Remote Alarm Relay output (std.) Common, Normally Open or Normally Closed Relay contacts - Bypass Alarm Relay input (std.) Normally Open Relay Contacts - Low-Battery Alert (std.), field-selectable option to remove backup battery / disable low-battery alert - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only) - Delayed Egress Door Sign (ECL-395 English, 15 seconds, Red) - Flexible 3' Conduit Loop and Endcap Connector - Pushpad Signage "Push to Open Alarm Will Sound" For non-standard arming delay, non-standard nuisance delay, 2-minute alarm silence, non-extended bypass, set grant times and other non-standard options or features, contact factory.

Features

• Stainless steel 3/4" deadlocking  top latch bolt
• Bottom drop bolt, 5/8" dia. x   5-5/8" long secures into strike plate
• Handed, field reversible
• Field sizable
• 1/8 turn dogging
• Ribbed aluminum rail   extrusion
• Impact resistant ABS and   anodized surfaces
• Modular design accepts a variety  of outside trims and functions
• Standard and narrow stile pull  trims available

Mechanical Options

- CD - Cylinder Dogging (Std.)

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

- 84 - Fits 7' Door Height (Std.)

- 96 - Fits 8' Door Height

- 96 Surface top stike top (Std.)

- Available with 628 base rail extrusion

- Available with 711 base rail extrusion

Accessories

- Outside Trim -See Below

- NSK - Narrow Stile Conversion Kit - Converts V50 to fit narrow stile glass door applications

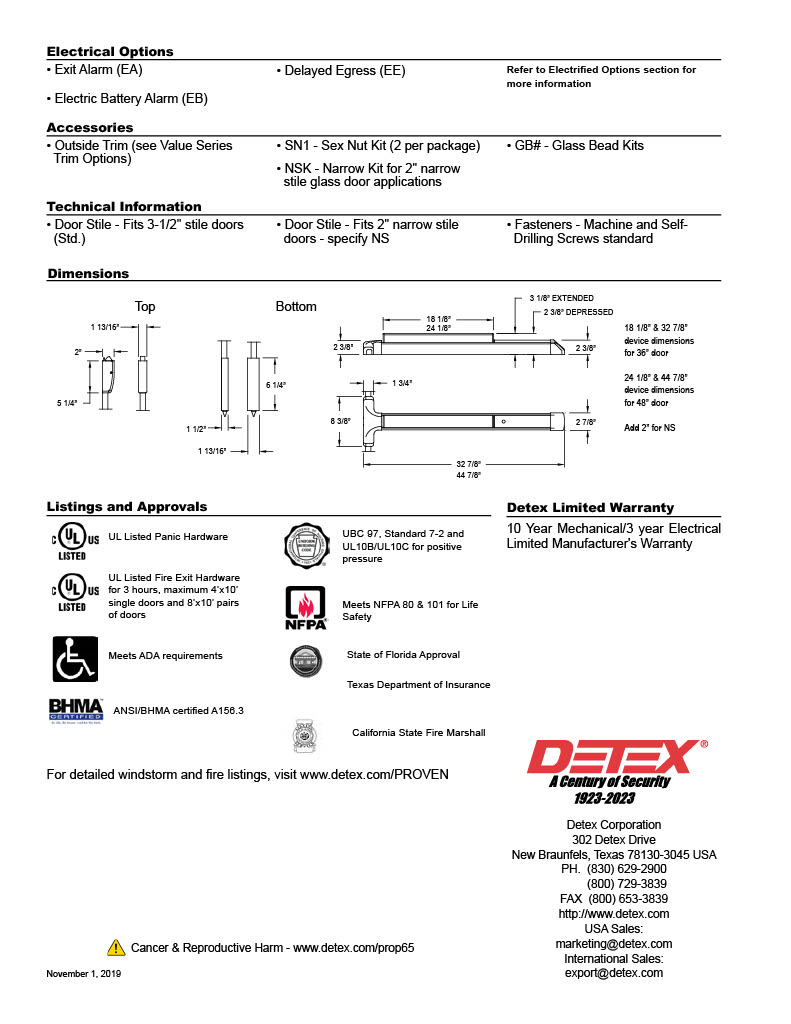

Technical Information

- Door Stile - Fits 3-1/2" stile doors (Std.)

- Fasteners - Machine and Self- Drilling Screws standard

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Model:Detex V51 EE CD, V51EE CD, V51EBCD, V51-EE-CD,V51EECD628963684,

V50CD628963696, V50CD628964884, V50CD628964896, V50CD628711963684

**

Listings And Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and 8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

California Fire Marshall 4140-0127:0105

Meets NFPA 80 & 101 for Life Safety
