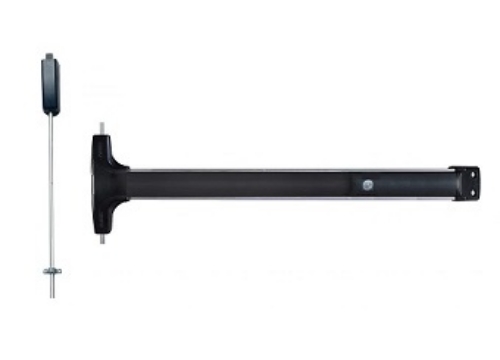

Detex V51 CD 628 36X84 Value Series Wide Stile Surface Vertical Rod Exit Device, Cylinder Dogging, 96 Surface Strike, Less Bottm Rod, 36 In. Device for 84 In. Door Height, Satin Aluminum Clear Anodized

Detex V51 CD 628 96 36X84 Value Series Wide Stile Surface Vertical Rod Exit Device, Cylinder Dogging, 96 Surface Strike, Less Bottm Rod, 36 In. Device for 84 In. Door Height, Satin Aluminum Clear Anodized

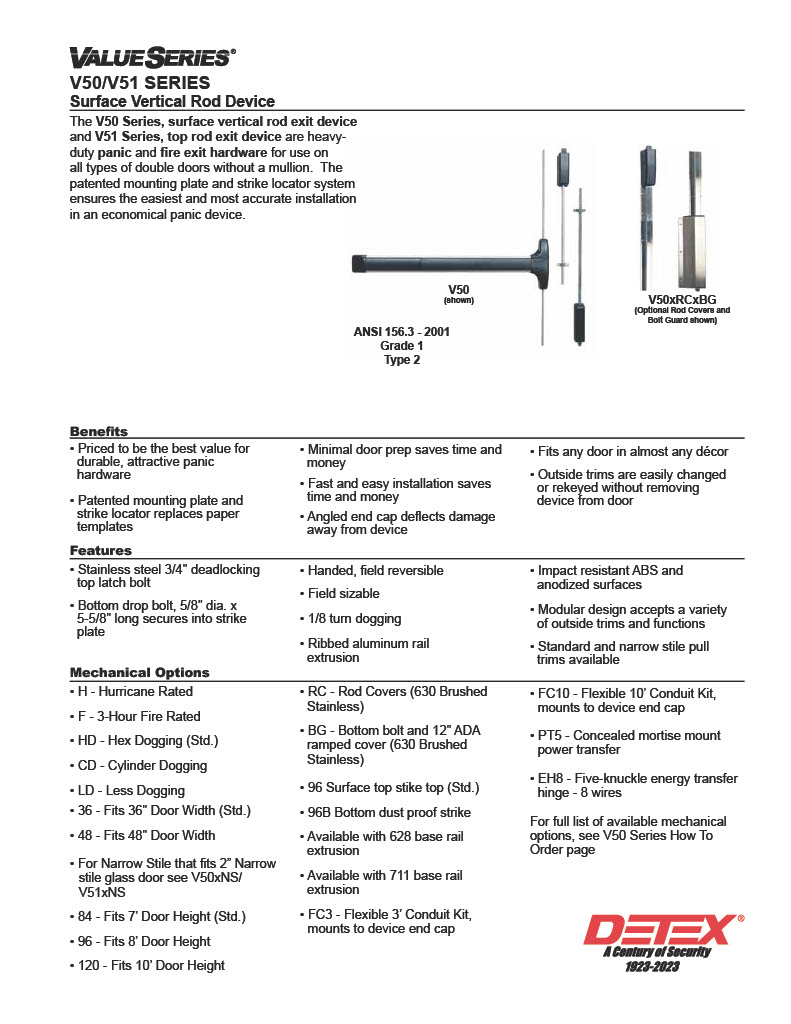

• Priced to be the best value for  durable, attractive panic   hardware
• Patented mounting plate and  strike locator replaces paper  templates
• Outside trims are easily changed   or rekeyed without removing   device from door
• Minimal door prep saves time and  money
• Fast and easy installation saves   time and money
• Angled end cap deflects damage  away from device
• Fits any door in almost any decor Benefits

Trims For the V40 series are: *01P, 01PN, 02A, 02AN, 02WP, 03P, 03PN, 03CN, 03WS, 03A, 03AN, 02BN, 08BN, 09BN, 14BN.*

Features

• Stainless steel 3/4" deadlocking  top latch bolt
• Bottom drop bolt, 5/8" dia. x   5-5/8" long secures into strike   plateFeatures
• Handed, field reversible
• Field sizable
• 1/8 turn dogging
• Ribbed aluminum rail   extrusion
• Impact resistant ABS and   anodized surfaces
• Modular design accepts a variety  of outside trims and functions
• Standard and narrow stile pull  trims available

Mechanical Options

- CD - Cylinder Dogging (Std.)

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

- 84 - Fits 7' Door Height (Std.)

- 96 - Fits 8' Door Height

- 96 Surface top stike top (Std.)

- Available with 628 base rail extrusion

- Available with 711 base rail extrusion

Accessories

- Outside Trim -See Below

- NSK - Narrow Stile Conversion Kit - Converts V50 to fit narrow stile glass door applications

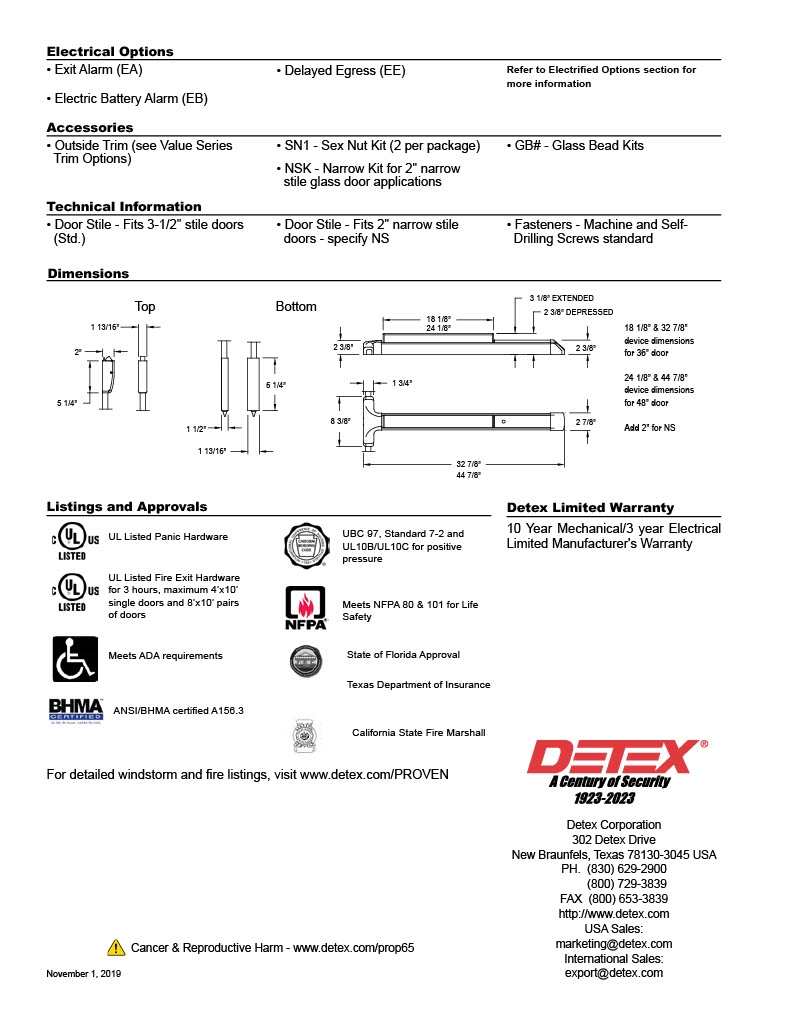

Technical Information

- Door Stile - Fits 3-1/2" stile doors (Std.)

- Fasteners - Machine and Self- Drilling Screws standard

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Model:Detex V50 EB CD, V50EB CD, V50EBCD, V50-EB-CD,V50EBCD628963684,

Detex V51CD628963696, V51CD628964884, V51CD628964896, V51CD628711963684, Detex V51CD, Detex V51,

**

Listings And Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and 8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

California Fire Marshall 4140-0127:0105

Meets NFPA 80 & 101 for Life Safety
