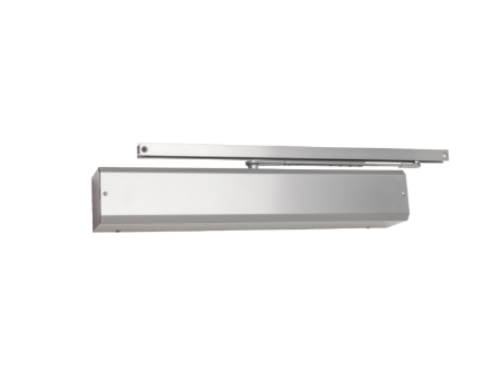

Falcon 8231-STD AL Automatic Operators - Pull Side Mount - Aluminum

Falcon 8231 STD Automatic Operators - Pull Side Mount - Aluminum (Dor-o-matic)

The Falcon 8200 Series automatic operator ensures smooth, convenient door opening for areas requiring easy accessiblity and ADA compliance. This versatile device can also be easily integrated into electrified openings with our wireless accessory offering. Choose the 8231 for pull side or the 8242 for push side installation.

Features

SmartLatch – Senses and overcomes external pressure conditions with a graduated energy assist for secure latching.Push ‘n’ Go – Selectable feature allows door to open automatically as soon as it feels pressure.Open position learning – Automatically sets the opening position and detects obstructions to eliminate wall and door damage.Pre-load strike assist – Removes load on strike lip with a one second delay allowing the door to release and automatically open.LED light illumination – Light illumination on control box signals accurate installation and helps with connection diagnosticsOn board power supply (12 VAC) – Powers actuators and receivers without the need to install an external power supply

Adjustable features:Hold-open time delay

Backcheck speedBackcheck/latch position Opening/closing speed

Specifications

Header length; 26"

Mounting;Surface mountHanding; Non-handedCycle tested; 1 million gear boxDoor weight; 200 pounds

Model:  Falcon 8231, 8231 AL, 8231 STD AL, 8231STDAL,8231-STD-AL , 8231 REG AL, 8231REGAL
