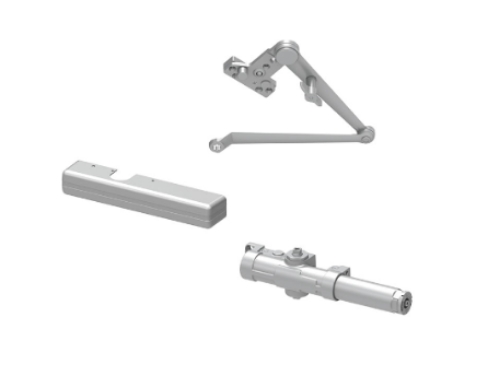

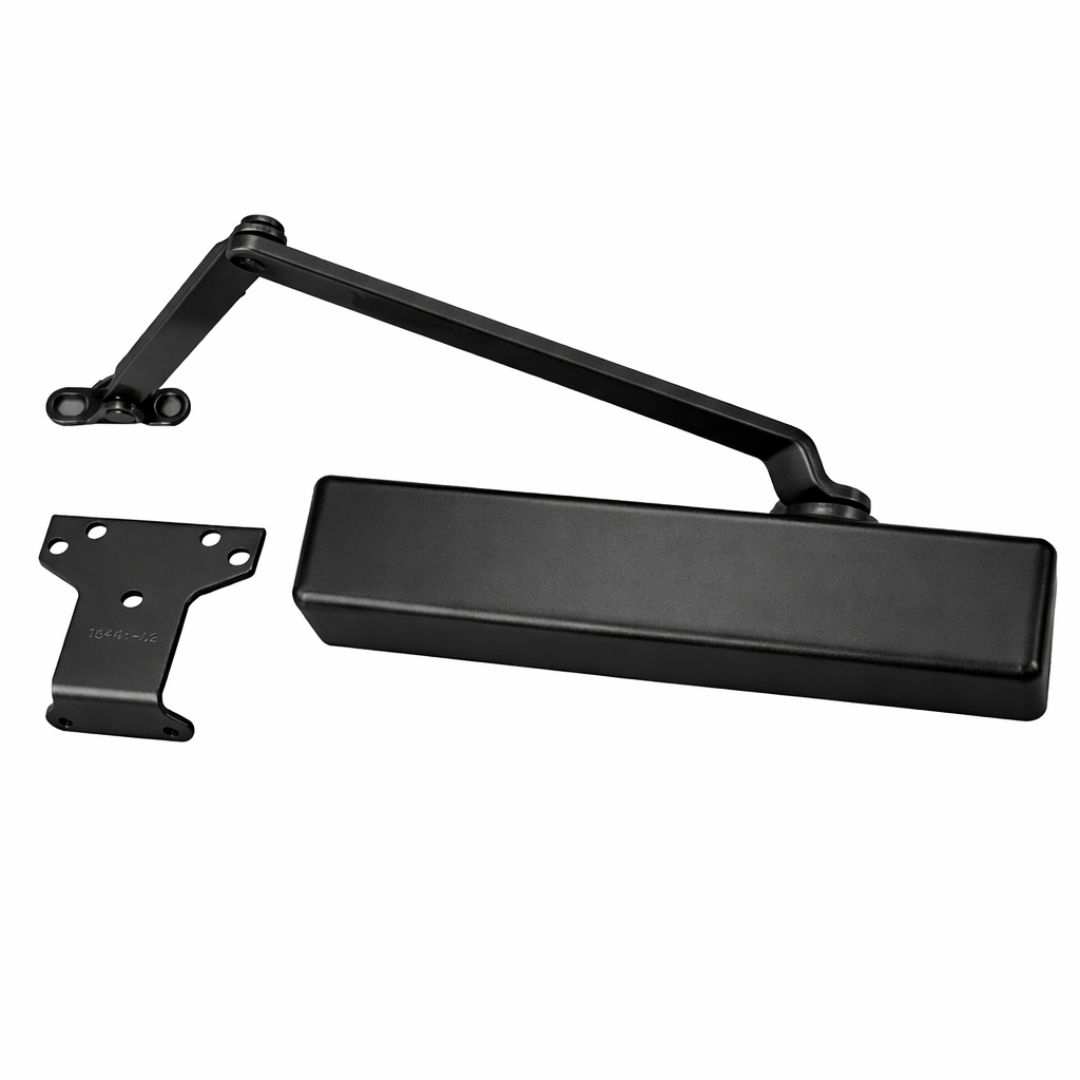

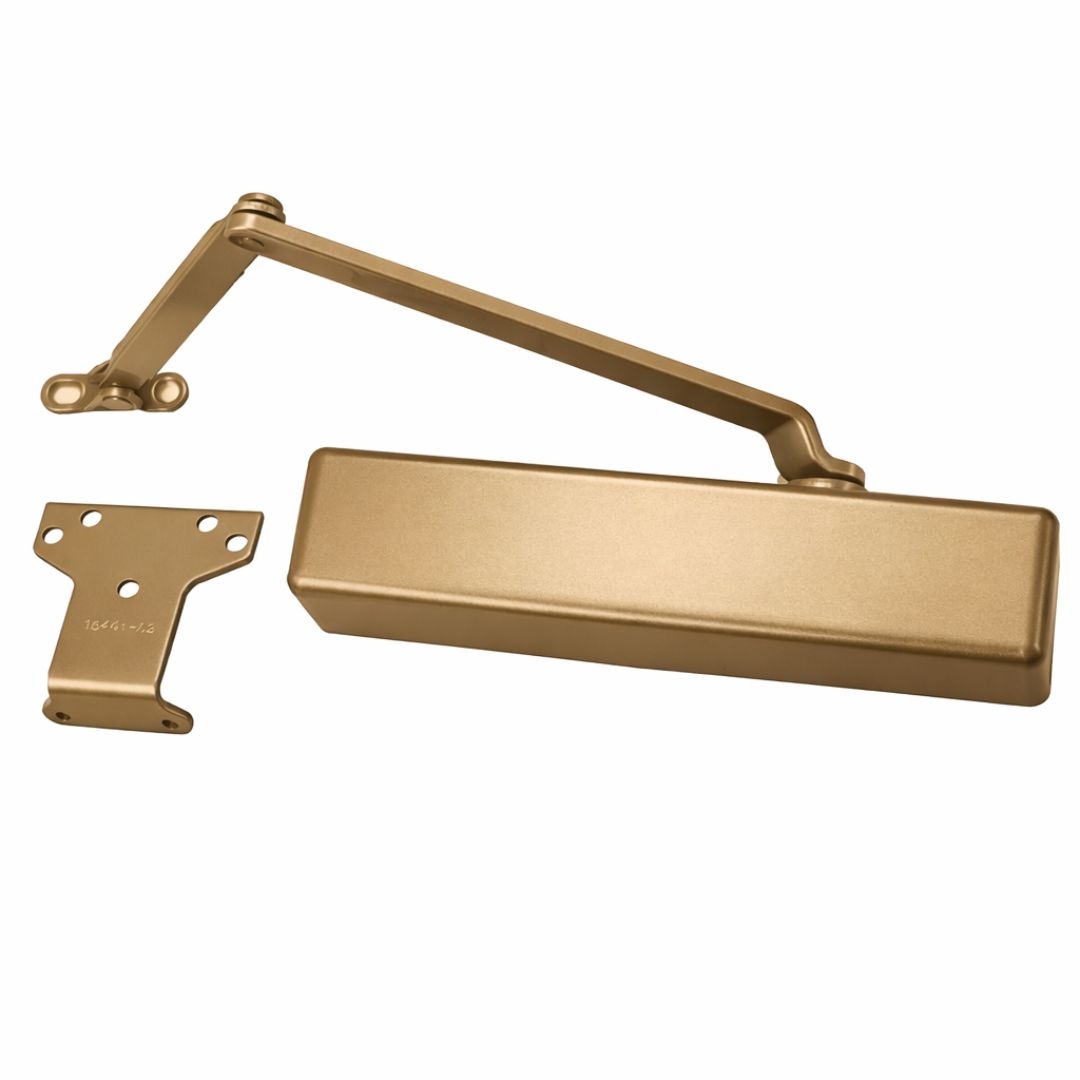

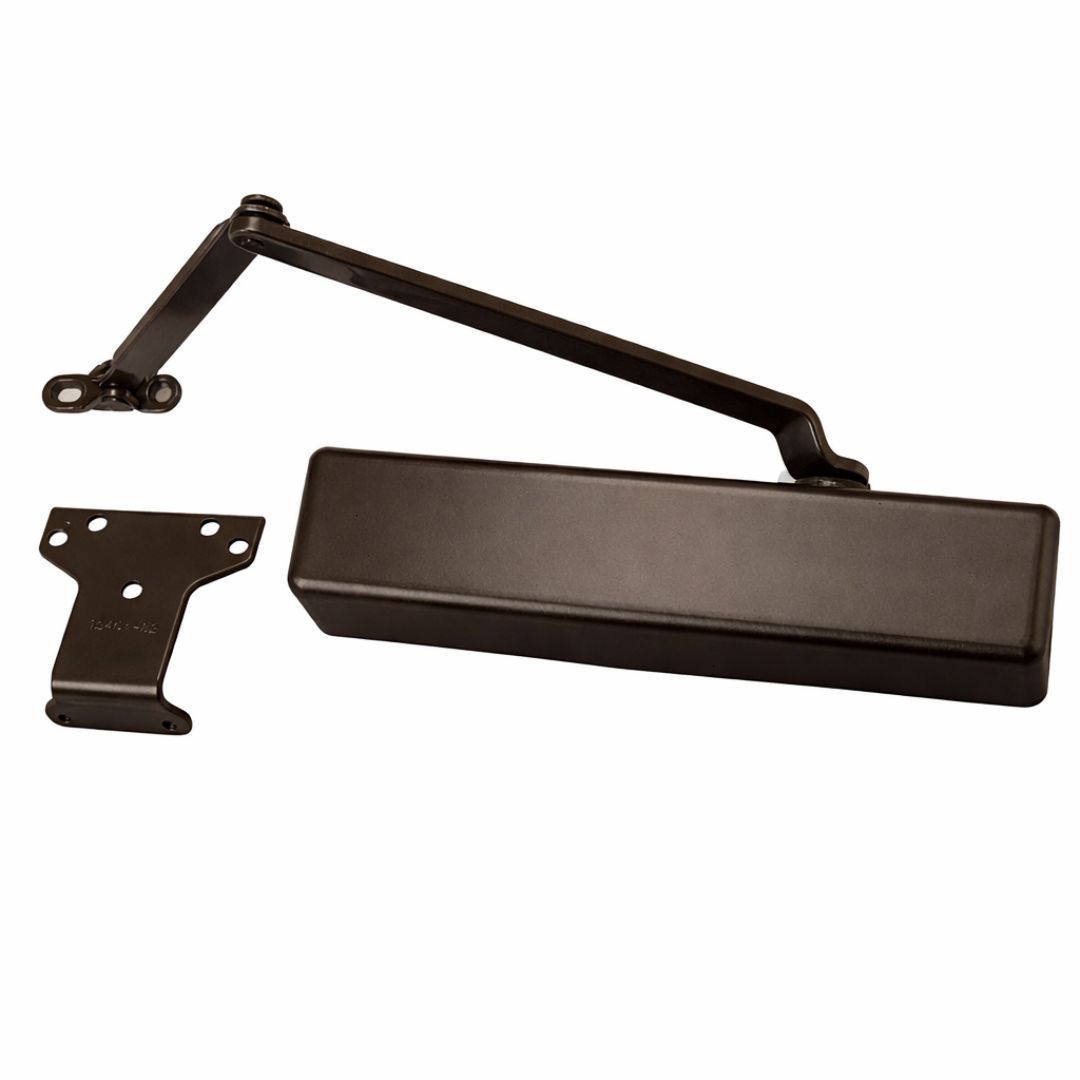

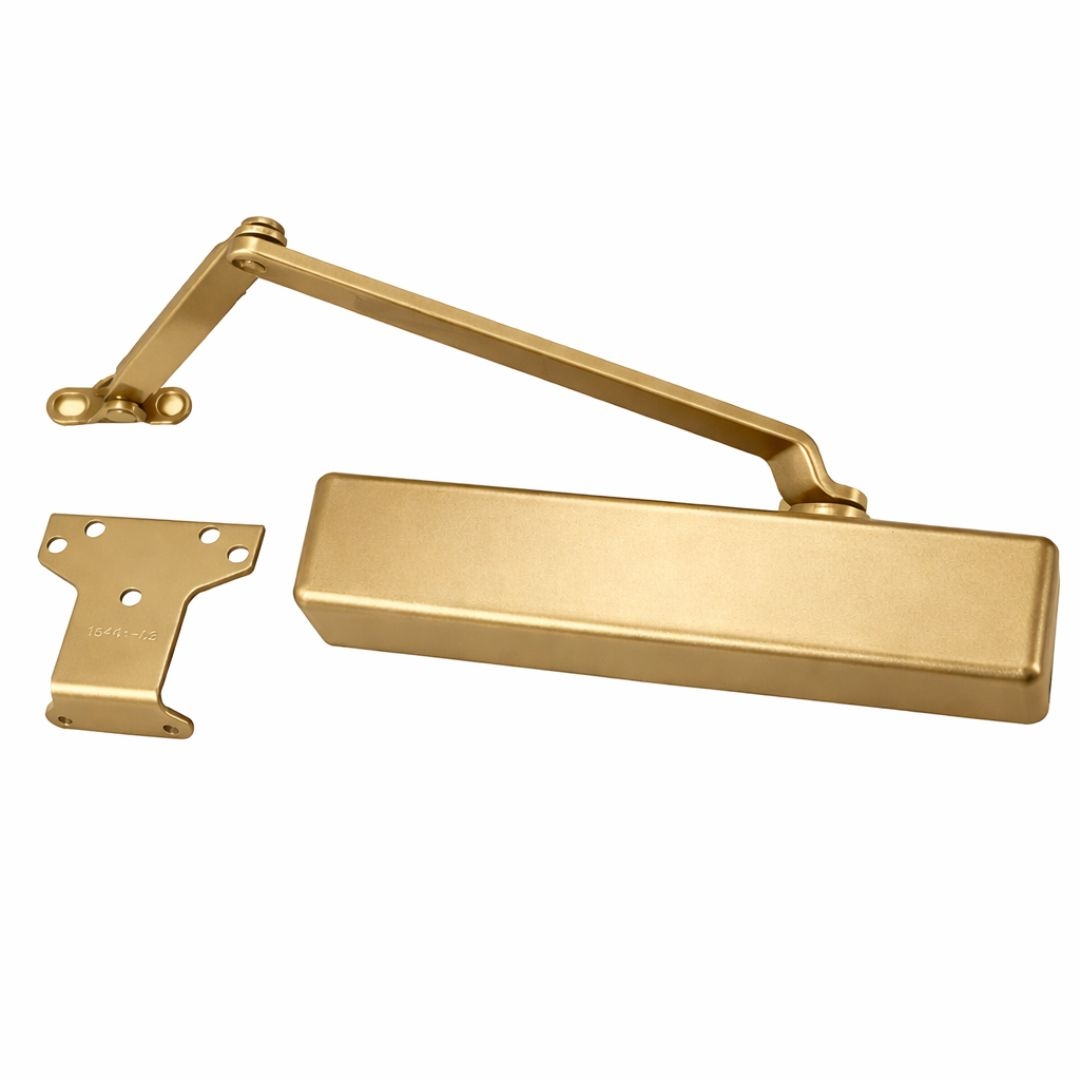

LCN 1461 SHCUSH Closer - Spring CUSH-N-STOP, Hold Arm

LCN 1461 SHCUSH Closer - Spring CUSH-N-STOP, Hold Arm

Finish: Powder Coat**

Closer Mounting: Parallel Arm (PUSH SIDE) mounting.

Power Size: The spring power of a 1461 cylinder is field adjustable from size 1 through size 6and is shipped adjusted to size 3.

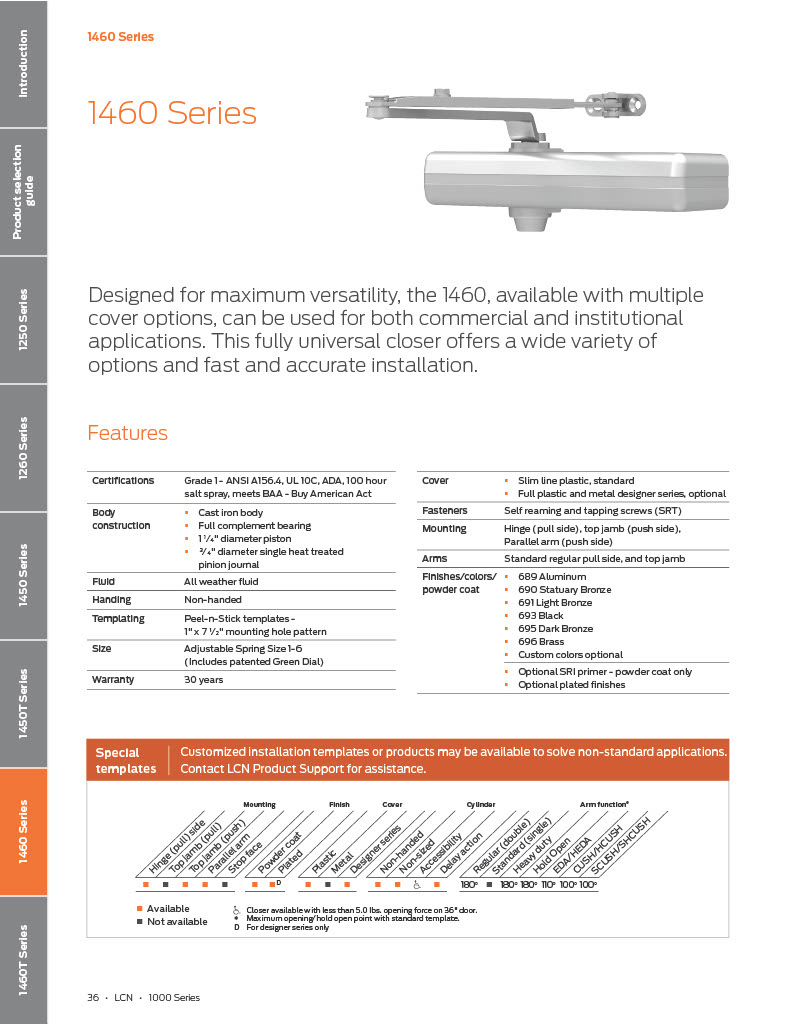

LCN 1461: Cast iron closer  -  Closer meets ADA requirements  -  Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees  -  Separate regulation of general closing speed and latching speed  -  Joints in arm and shoe adapt to uneven trim  - Reversible shoe to boost latching power on double lever arms

Handing: Non-Handed, Closer mounts on either right or left swinging doors.

UL: UL and cUL listed for self-closing doors without hold-open.

ANSI: Tested and certified under ANSI Standard A156.4, grade one.

Warranty:10 year limited warranty.

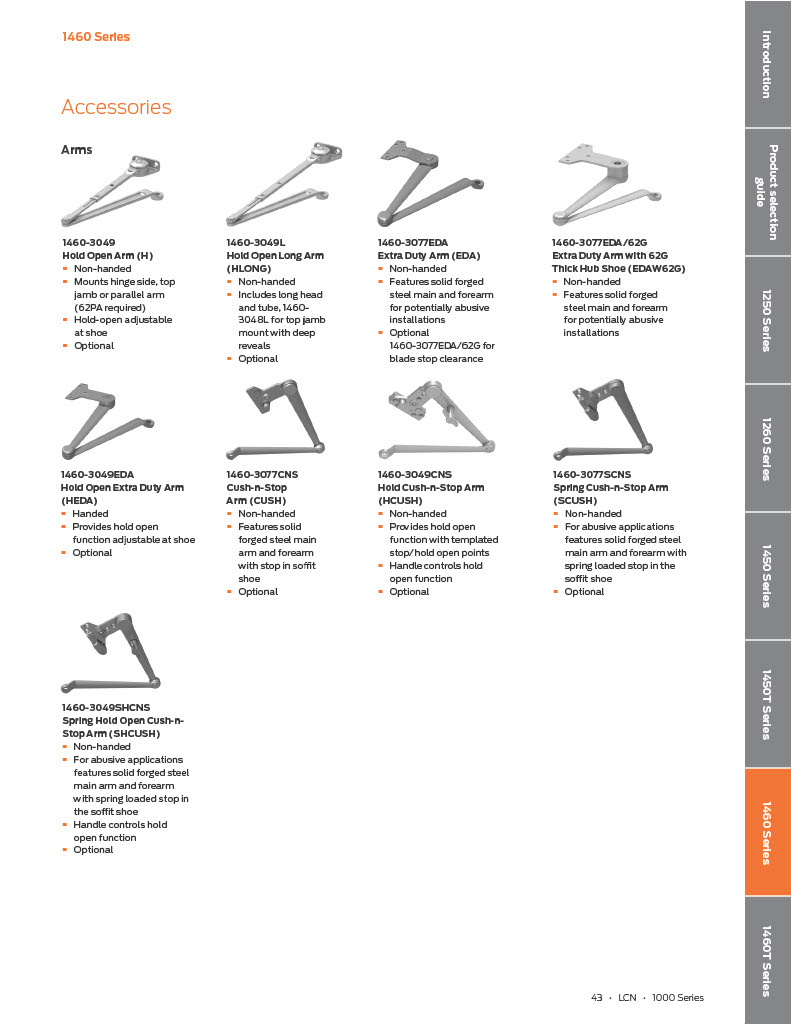

Arm: SPRING HCUSH ARM, 1460-3049SCNS non-handed parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe. Handle controls hold-open function.

PA shoe:1460-62PA shoe for parallel arm mounting.

Cover:1460-72Standard, non-handed, slim line plastic cover with feature strip.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

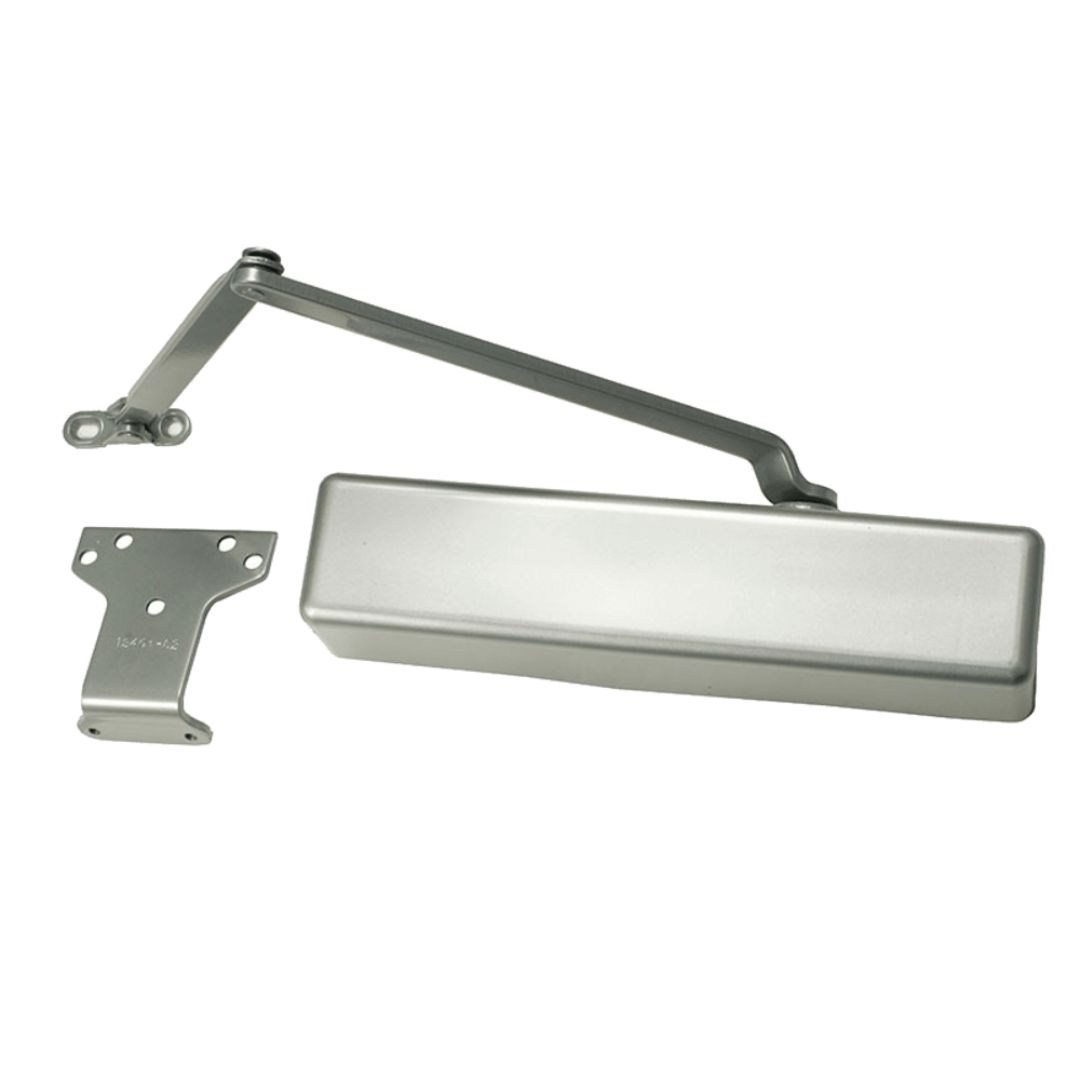

Finishes: ALUM - ALUMINUM (BHMA 689

Model: LCN, 1461SHCUSHALUM, 1461DSHCUSHAL
