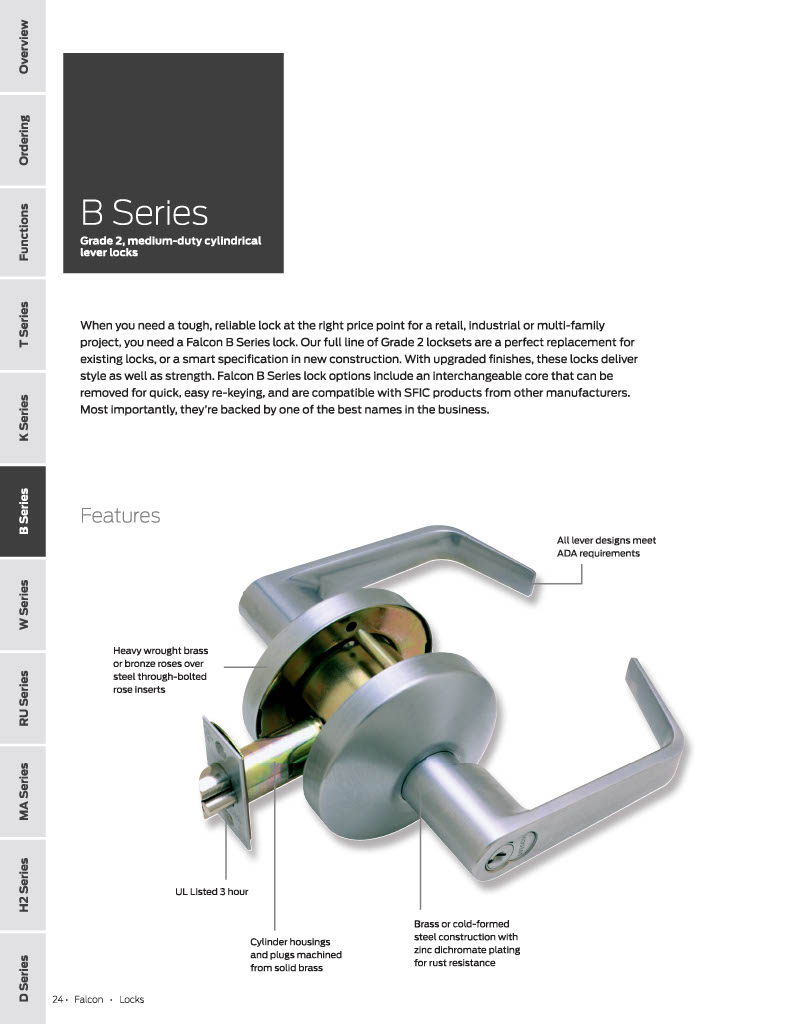

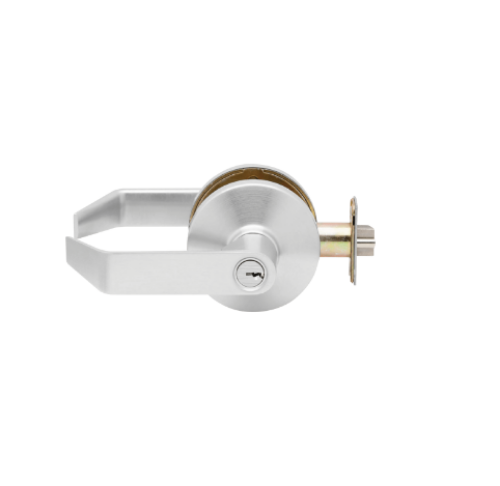

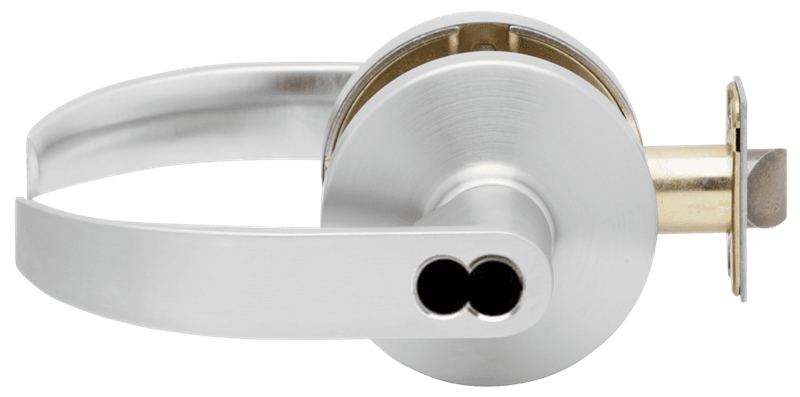

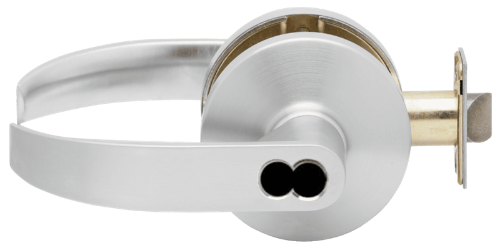

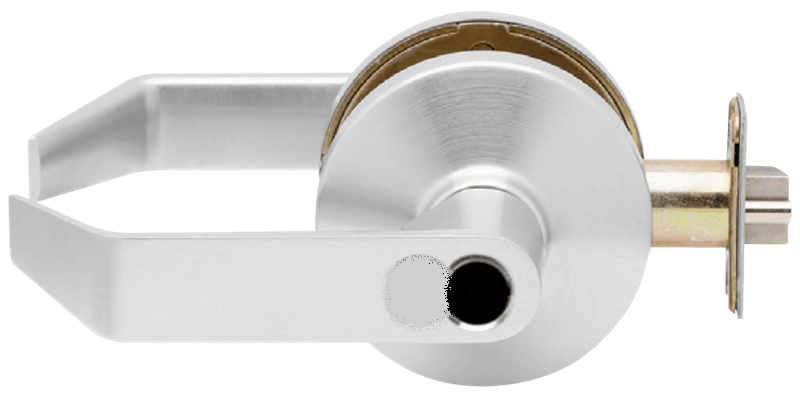

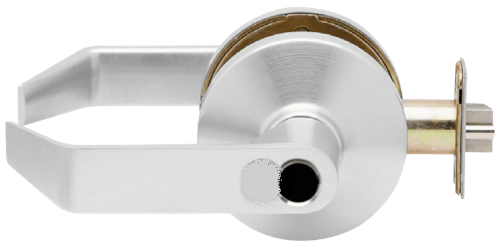

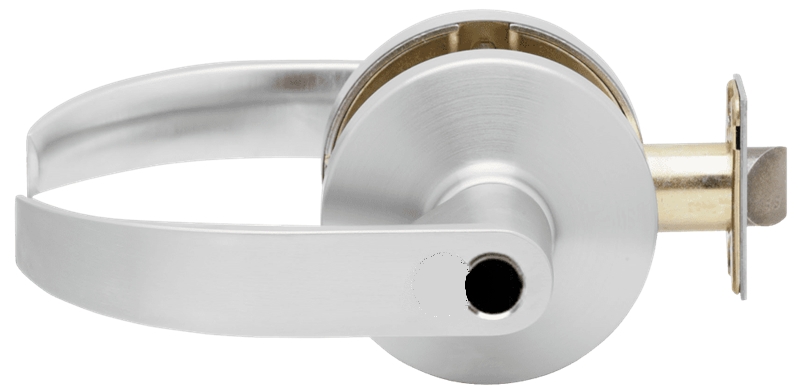

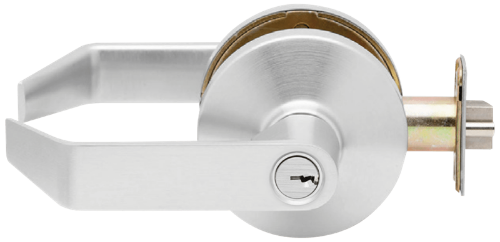

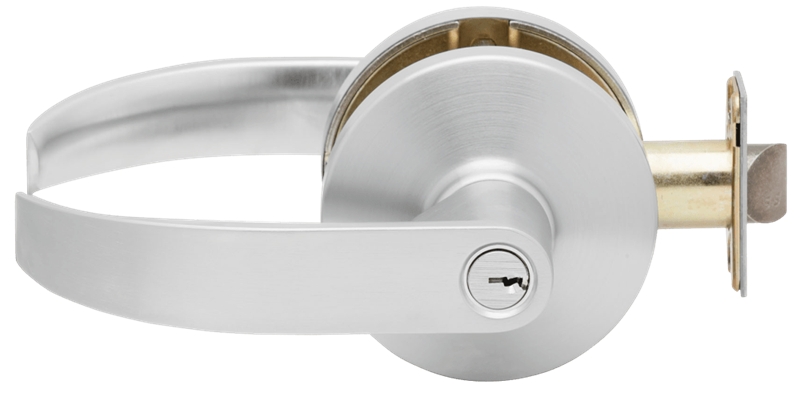

Falcon B501 Grade 2 Cylindrical Lock, Entry Function

Falcon B501 Grade 2 Entry Lock

ANSI F82

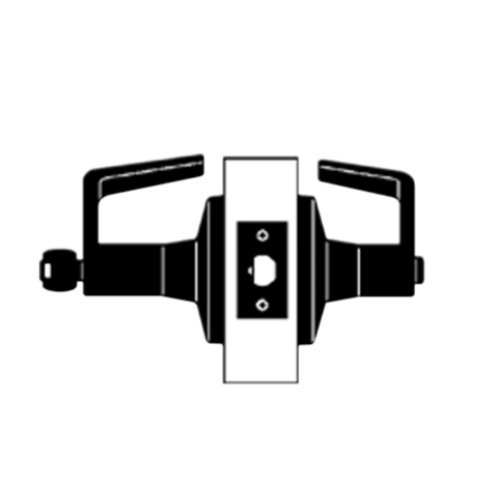

Push button locking. Button on inside locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

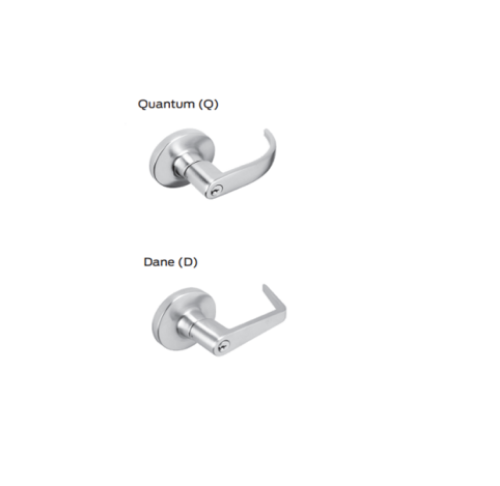

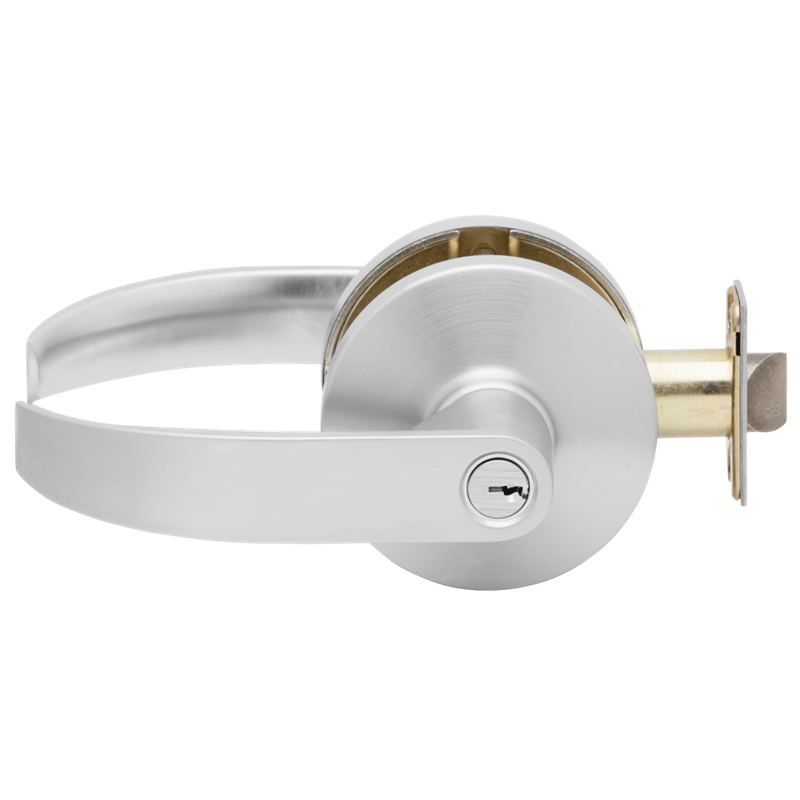

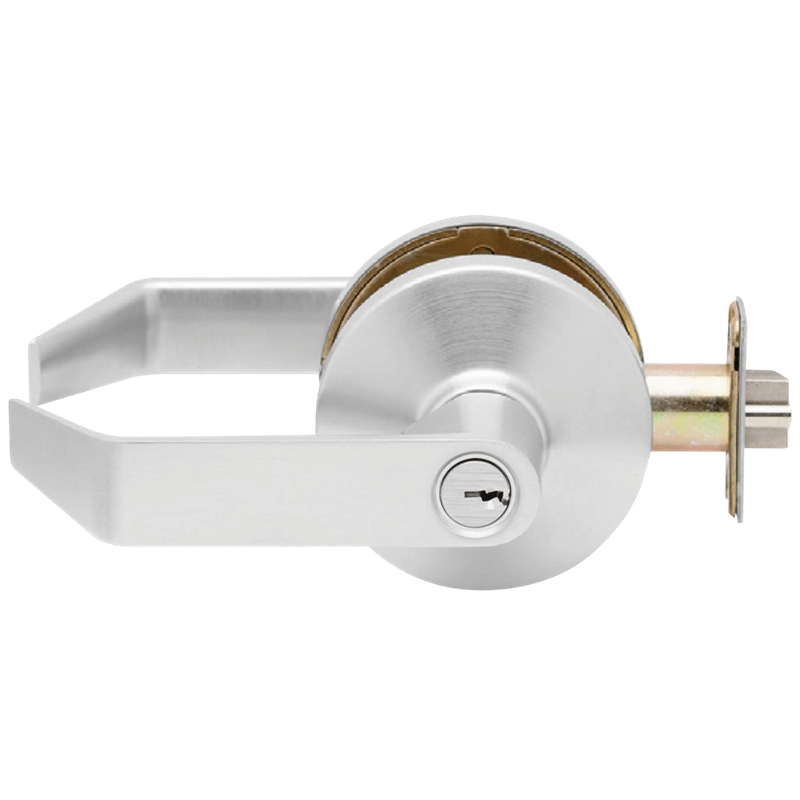

Lever: D - Dane, Q - Quantum

Finishes: Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness: 1-3/8" to 2" standard.

Backset: 2-3/4" standard. 2-3/8 also available.

Handing: Locks are non-handed.

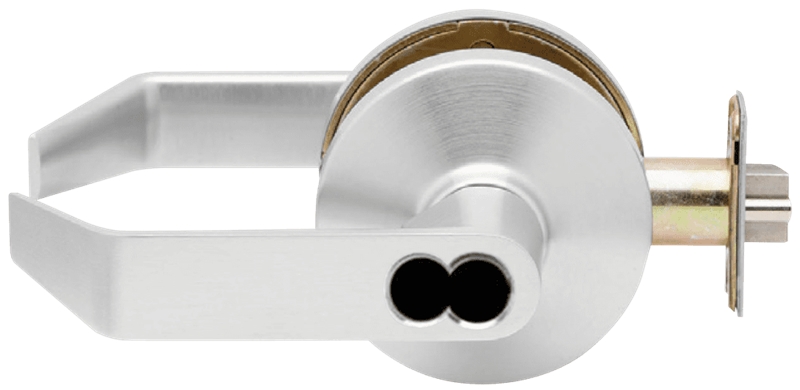

Cylinders: Drilled with 6 pin chambers, pinned in 5. Cylinder assemblies removable to rekey. Also vailable with 6 or 7 pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways: "G" keyway standard on standard cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways.

Latches: 1/2" bolt projection. UL listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latchfaces. 2-3/4",with 2-1/4" x 1-1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. or T-strike available

Screws: Furnished with combination screws for use in wood or metal doors and frames.

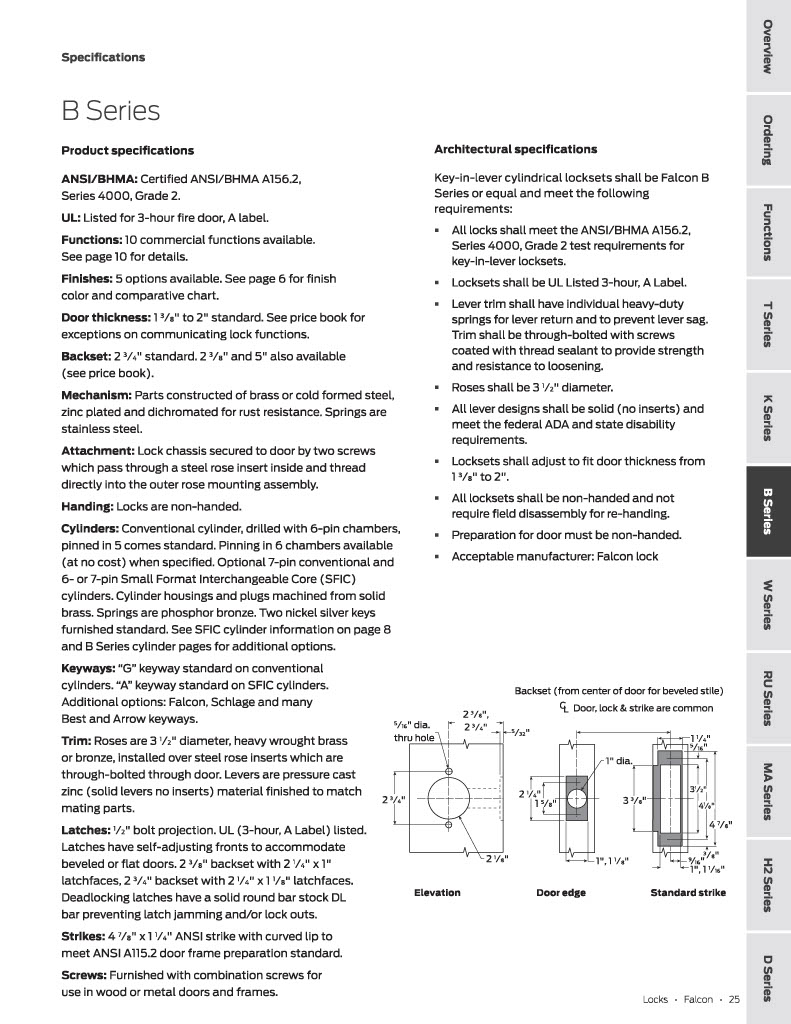

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Model: Falcon, B501, B501PD, B501PDD, B501PDQ, B501PDDAN, B501PDQUA,  101SD626, B501PDQ626, B501PDDAN626, B501PDQUA626, B501PDD625, B501PDQ625, B501PDDAN625, B501PDQUA625, B501PDD605, B501PDQ605, B501PDDAN605, B501PDQUA605, B501PDD606, B501PDQ606, B501PDDAN606, B501PDQUA606, B501PDD613, B501PDQ613, B501PDDAN613, B501PDQUA613, B501BD, B501BDD, B501BDQ, B501BDDAN, B501BDQUA,  101SD626, B501BDQ626, B501BDDAN626, B501BDQUA626, B501BDD625, B501BDQ625, B501BDDAN625, B501BDQUA625, B501BDD605, B501BDQ605, B501BDDAN605, B501BDQUA605, B501BDD606, B501BDQ606, B501BDDAN606, B501BDQUA606, B501BDD613, B501BDQ613, B501BDDAN613, B501BDQUA613

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.

Trim: Roses are 3-1/2" diameter, heavy wrought brass or bronze,installed over steel rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.
