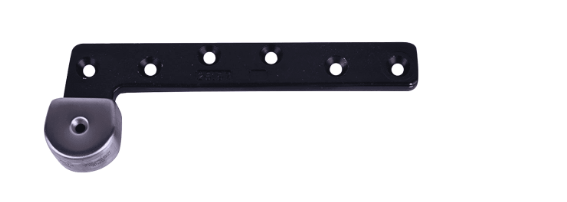

Ives 7226-BTM 3/4" Offset Bottom Pivot

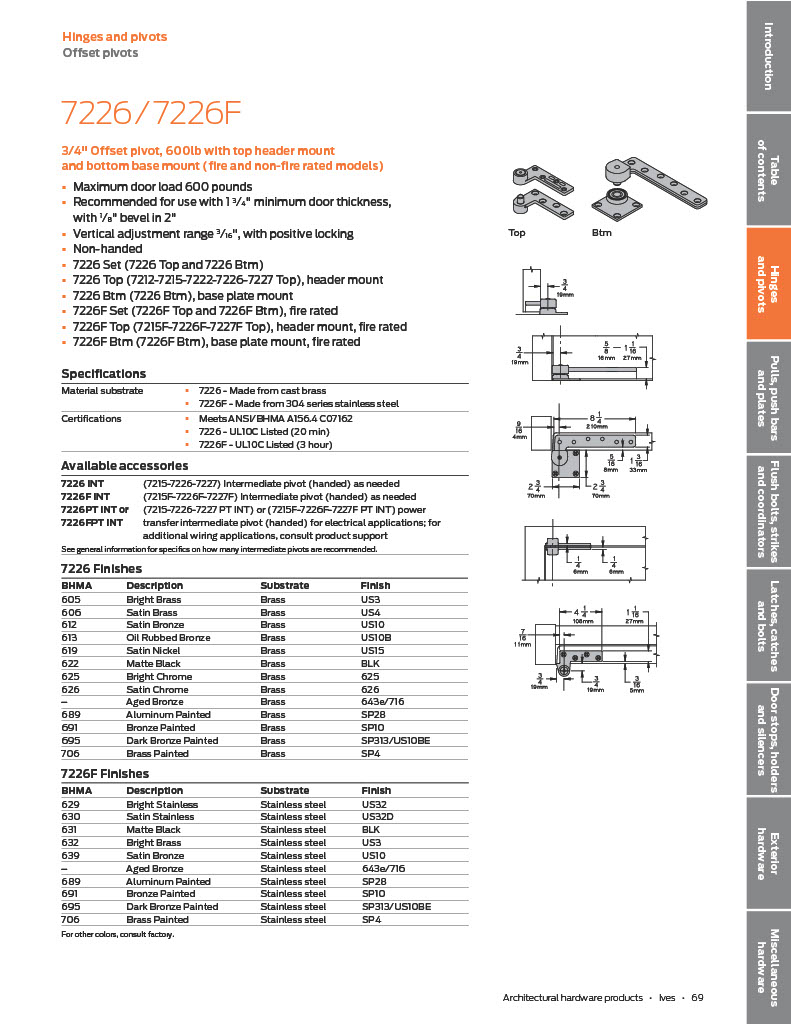

Ives 7226 BTM, 3/4" Offset Bottom Pivot

7226 - Ul Listed 20 minute fire doors

Non-handed

Base plate mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 600 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7226-BTM, 7226BTM, 7226BTMSP28, 7226BTMSP313, 7226BTMSPBLK, 7226BTMSPB10, 7226BTMSP28RH, 7226BTMSP313RH, 7226BTMSP28LH, 7226BTMSP313LH, 7226BTMUS10, 7226BTMUS10B, 7226BTMUS26, 7226BTMUS26D, 7226BTMUS3, 7226BTMUS4, RH, LH. 7226 BTM SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SPBLK - Black Painted, SP10 - Light Bronze Painted, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, RH, LH. Right or Left hand
