Product Details

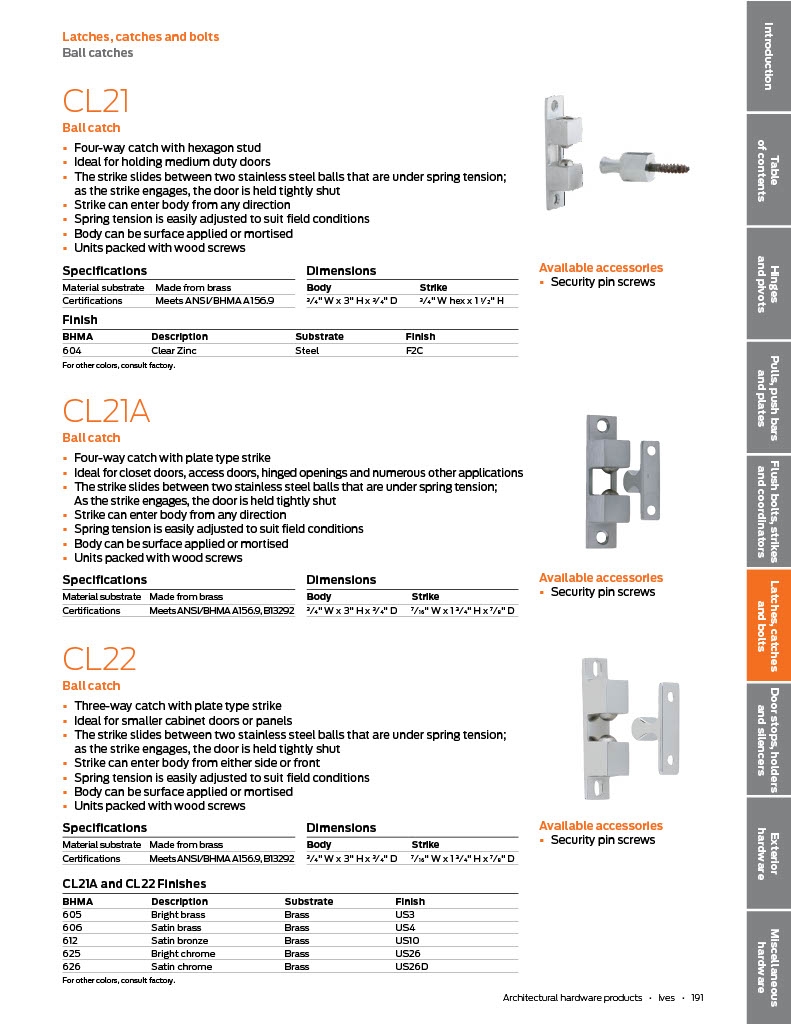

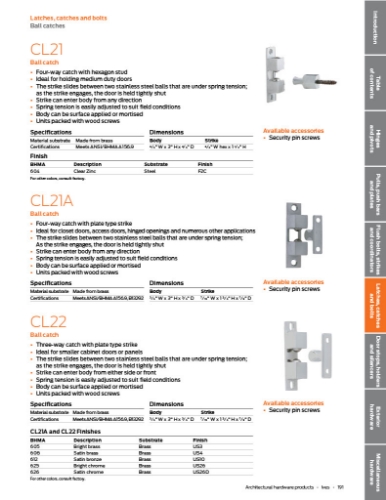

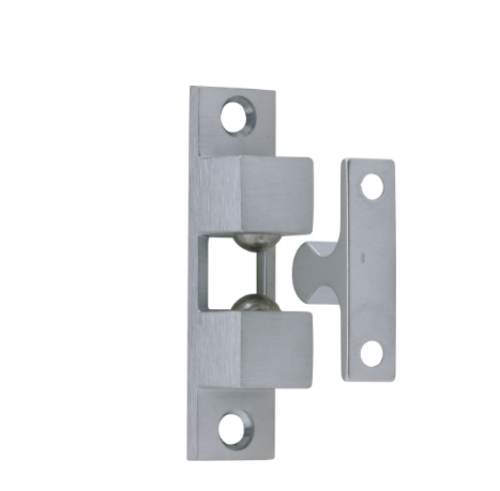

Ives CL21A Ball Catch
Four-way catch with plate type strike.
Ideal for closet doors, access doors, hinged openings and numerous other applications.
The strike slides between two stainless steel balls that are under spring tension. As the strike engages, the door is held tightly shut.
Strike can enter body from any direction.
Spring tension is easily adjusted to suit field conditions.
Body can be surface applied or mortised.
Brass construction.
Dimensions
Body: 3/4" Wide x 3" High x 3/4" Deep
Strike: 7/16" Wide x 1-3/4" High x 7/8" Deep
Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626)
Model: CL21AB3, CL21AB4, CL21AB10, CL21AB26, CL21AB26D, CL21AUS3, CL21AUS4, CL21AUS10, CL21AUS26, CL21AUS26D
