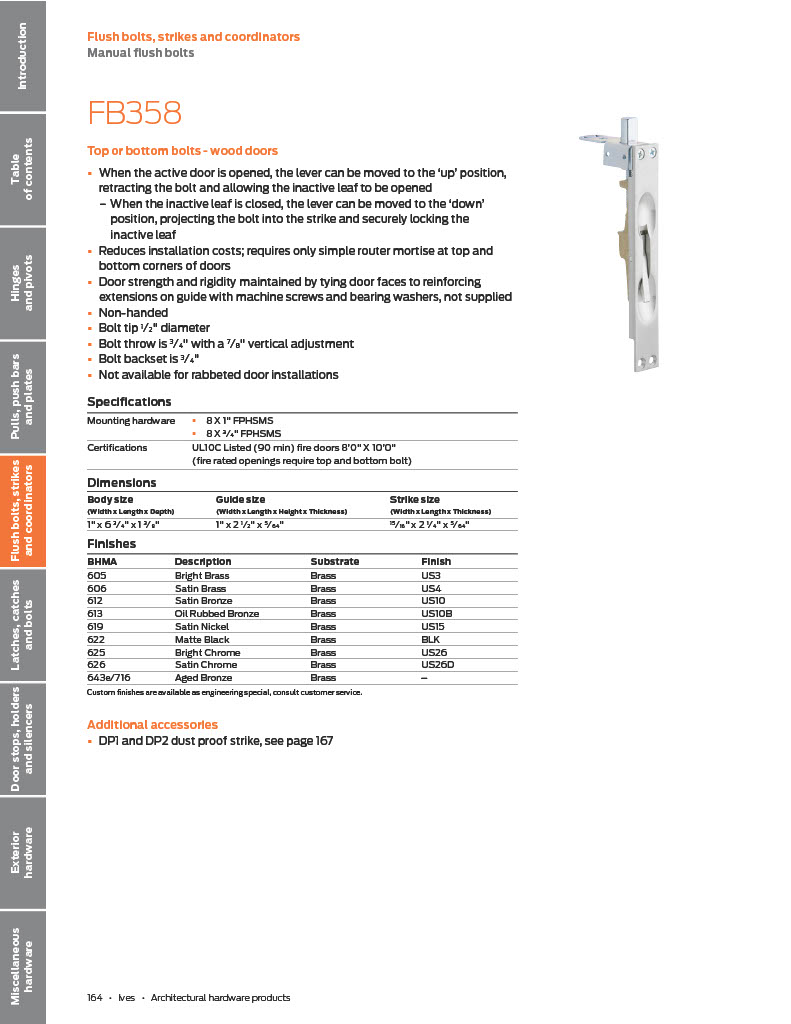

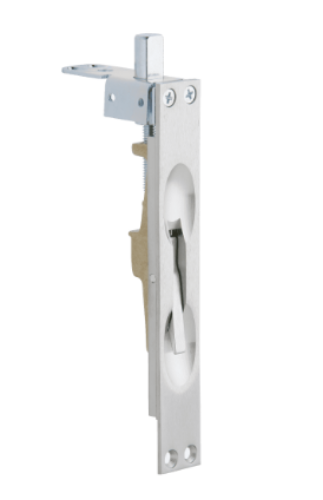

Ives FB358 Manual Flush Bolt - Wood Doors

Ives FB358 Manual Flush Bolt - Wood Doors

ToporBottom Bolts

When the active door is opened, the lever can be moved to theupposition, retracting the bolt and allowing the inactive leaf to be opened. When the inactive leaf is closed, the lever can be moved to thedownposition, projecting the bolt into the strike and securely locking the inactive leaf.

Reduces installation costs; requires only simple router mortise at top and bottom corners of doors.

Door strength and rigidity maintained by tying door faces to reinforcing extensions on guide with machine screws and bearing washers, not supplied.

Non-handed.

Bolt tip 1/2" diameter

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

Not available for rabbeted door installations.

**Dimensions

**Body Size: 1" Wide x 6-3/4" Long x 1-3/8" Deep

Guide Size: 1" Wide x 2-1/2" Long x 5/64" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 5/64" Thick

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) B15 (US15) Satin Nickel, Clear Coat (619) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626)

Model: FB358, FB358, FB358US3, FB358US4, FB358US10, FB358US10B, FB358US15, FB358US26, FB358US26D, FB358B3, FB358B4, FB358B10, FB358B10B, FB358B15, FB358B26, FB358B26D
