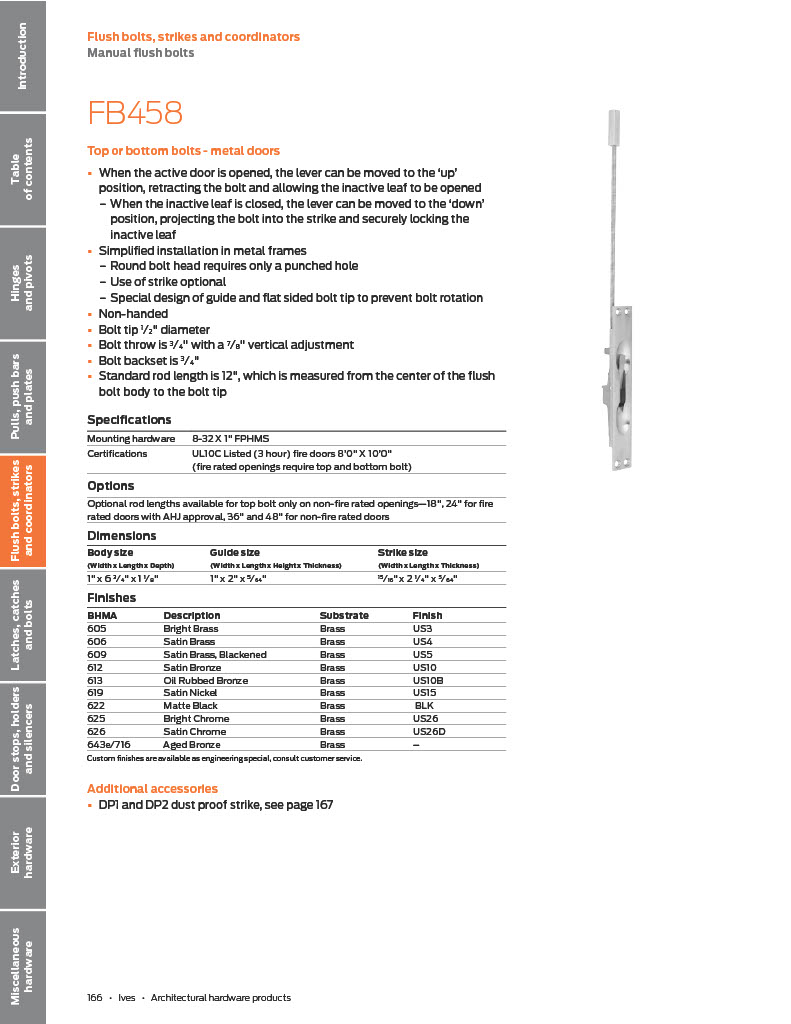

Ives FB458 Manual Flush Bolt - Metal Doors

Ives FB458 Mnual Flush Bolt Metal Doors

ToporBottom Bolts

When the active door is opened, the lever can be moved to theuposition, retracting the bolt and allowing the inactive leaf to be pened. When the inactive leaf is closed, the lever can be moved to hedownposition, projecting the bolt into the strike and securely ocking the inactive leaf.

Simplified installation in metal frames. Round bolt head requires only punched hole. Use of strike optional. Special design of guide and lat sided bolt tip to prevent bolt rotation.

Non-handed.

Bolt tip is 1/2" diameter.

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

Standard Rod Length is 12", which is measured from the center f the flush bolt body to the bolt tip. Optional Rod Lengths available - ", 9", 18" and 24" for fire rated Doors. Optional Rod lengths vailable - 6", 9", 18", 24", 30", 36" and 48" for non-fire rated doors.

**Dimensions

**Body Size: 1" Wide x 6-3/4" Long x 1-1/8" Deep

Guide Size: 1" Wide x 2" Long x 5/64" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 5/64" Thick

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B5 (US5) Satin Brass, Blackened, Satin Relieved (609) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) B15 (US15) Satin Nickel, Clear Coat (619) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626)

Model: FB458, FB458,FB458US3, FB458US4, FB458US5, FB458US10, FB458US10B, FB458US15, FB458US26, FB458US26D, FB458B3, FB458B4, FB458B5, FB458B10, FB458B10B, FB458B15, FB458B26, FB458B26D, FB458US3 12 IN, FB458US4 12 IN, FB45US5 12 IN, FB458US10 12 IN, FB458US10B 12 IN, FB458US15 12 IN, FB458US26 12 IN, FB458US26D 12 IN.
