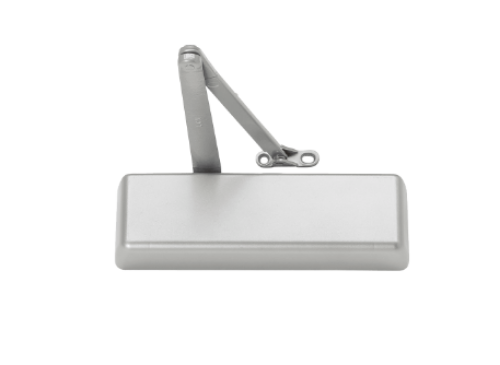

LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

Picture of LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

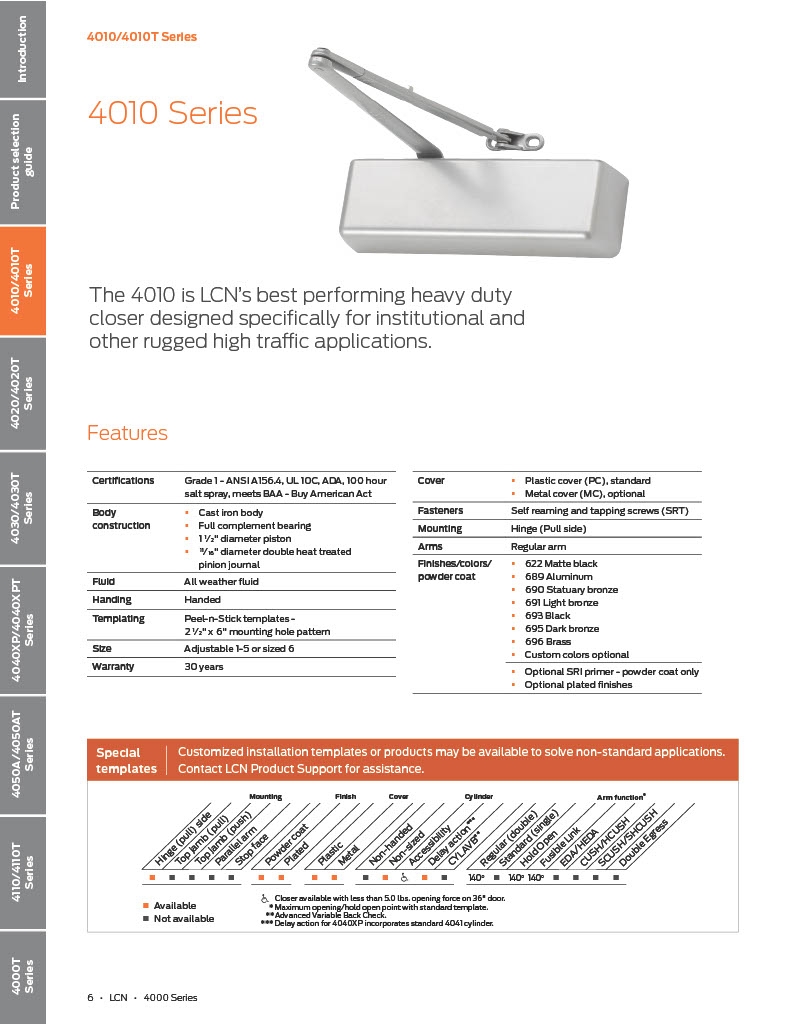

1-Page6-LCN-4000SERIES

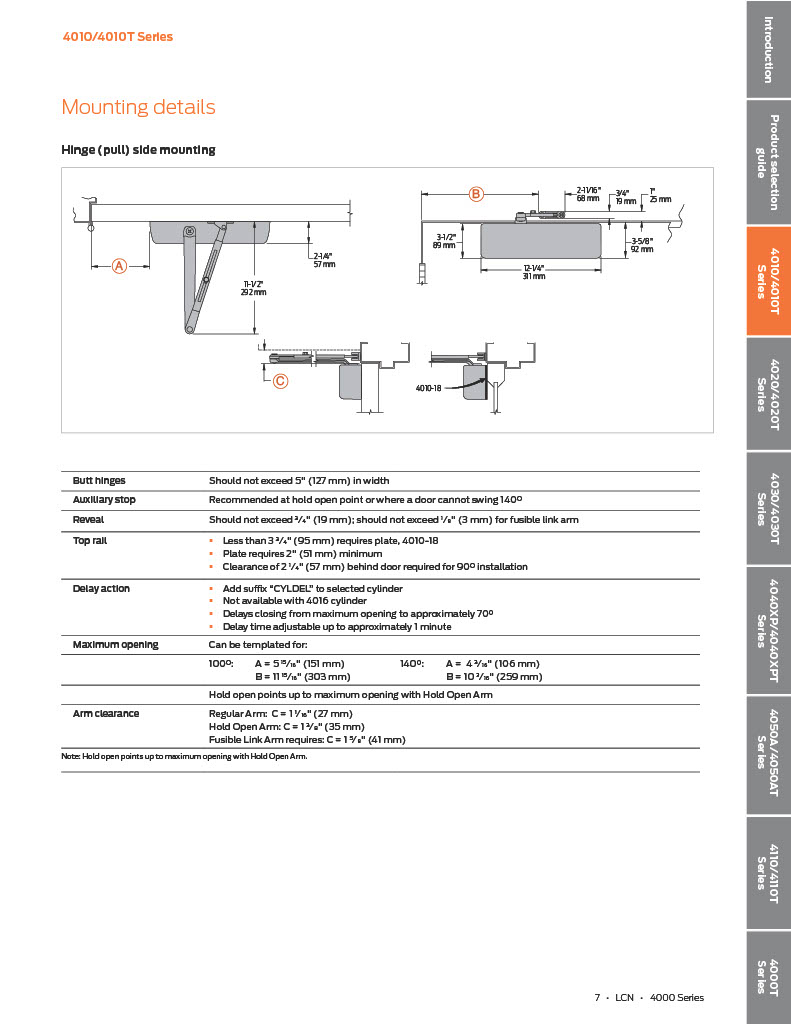

1-Page7-LCN-4000SERIES

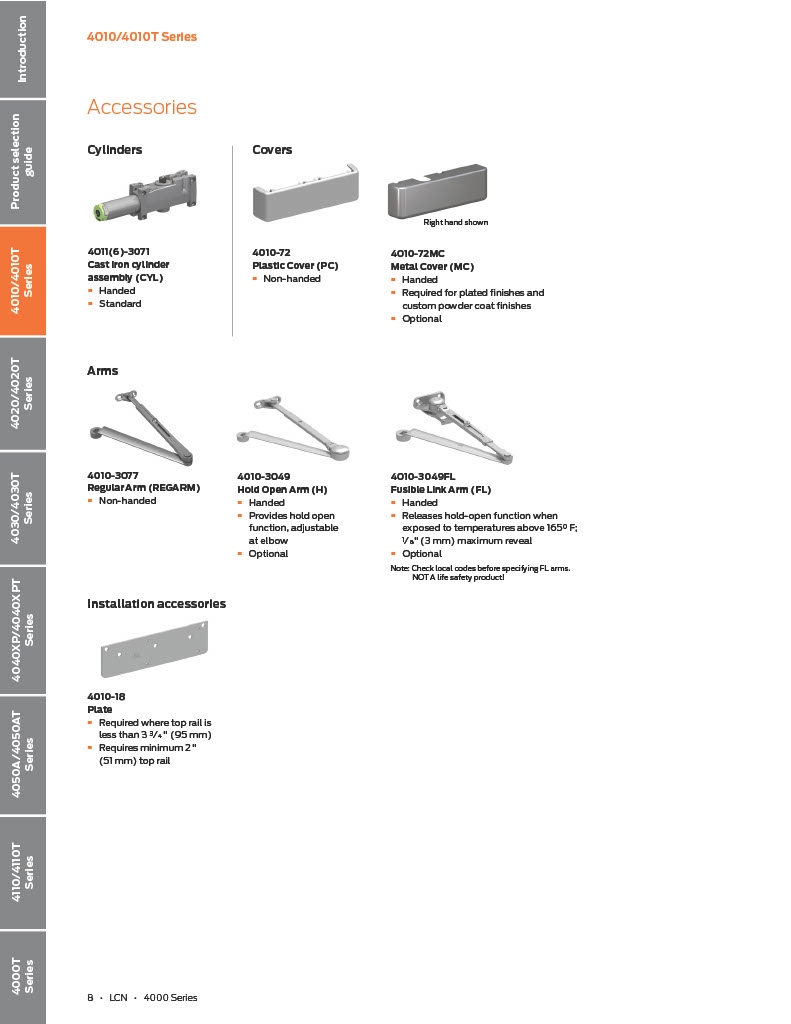

1-Page8-LCN-4000SERIES

Picture of LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

Picture of LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

Picture of LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

Picture of LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

Product Details

LCN 4016- Heavy Duty Door Closer with regular arm - Size 6

Finish: Powder Coat

Closer Mounting: Closer mounts hinge side (Pull Side) only.

LCN 4010 Series: Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size: Sized cylinder (4016) for interior and exterior doors 42" to 60"

Handing: Handed; specify right or left swinging door

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Arm: Regular Arm, 4010-3077**Non-handed arm.

Cover: 4010-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

SKU: 4016-REG

In Stock

$514.15

About this item

The 4010 Smoothee is LCN's best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Resources

LCN 4000 SERIES CATALOG.pdf

LCN 4016- Heavy Duty Door Closer with regular arm - Size 6

Finish: Powder Coat

Closer Mounting: Closer mounts hinge side (Pull Side) only.

LCN 4010 Series: Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size: Sized cylinder (4016) for interior and exterior doors 42" to 60"

Handing: Handed; specify right or left swinging door

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Arm: Regular Arm, 4010-3077**Non-handed arm.

Cover: 4010-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Picture of LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

Product code: 4016-REG

In Stock

$514.15

$514.15

Picture of LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

Product code: 4016-REG

In Stock

$514.15

$514.15

LCN 4016-REG Door Closer - Mounting hinge side (Pull Side) - Regular Arm - Size 6

SKU: 4016-REG
