LCN 4031 CUSH Door Closer - CUSH-N-STOP Arm

4031-CUSH 689
1-Page22-LCN-4000
1-Page27-LCN-4000
1-Page28-LCN-4000
4031-CUSH 689
1-Page22-LCN-4000
1-Page27-LCN-4000
1-Page28-LCN-4000
naxt
prev

Product Details

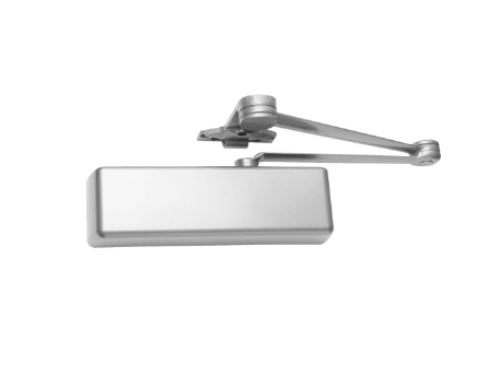

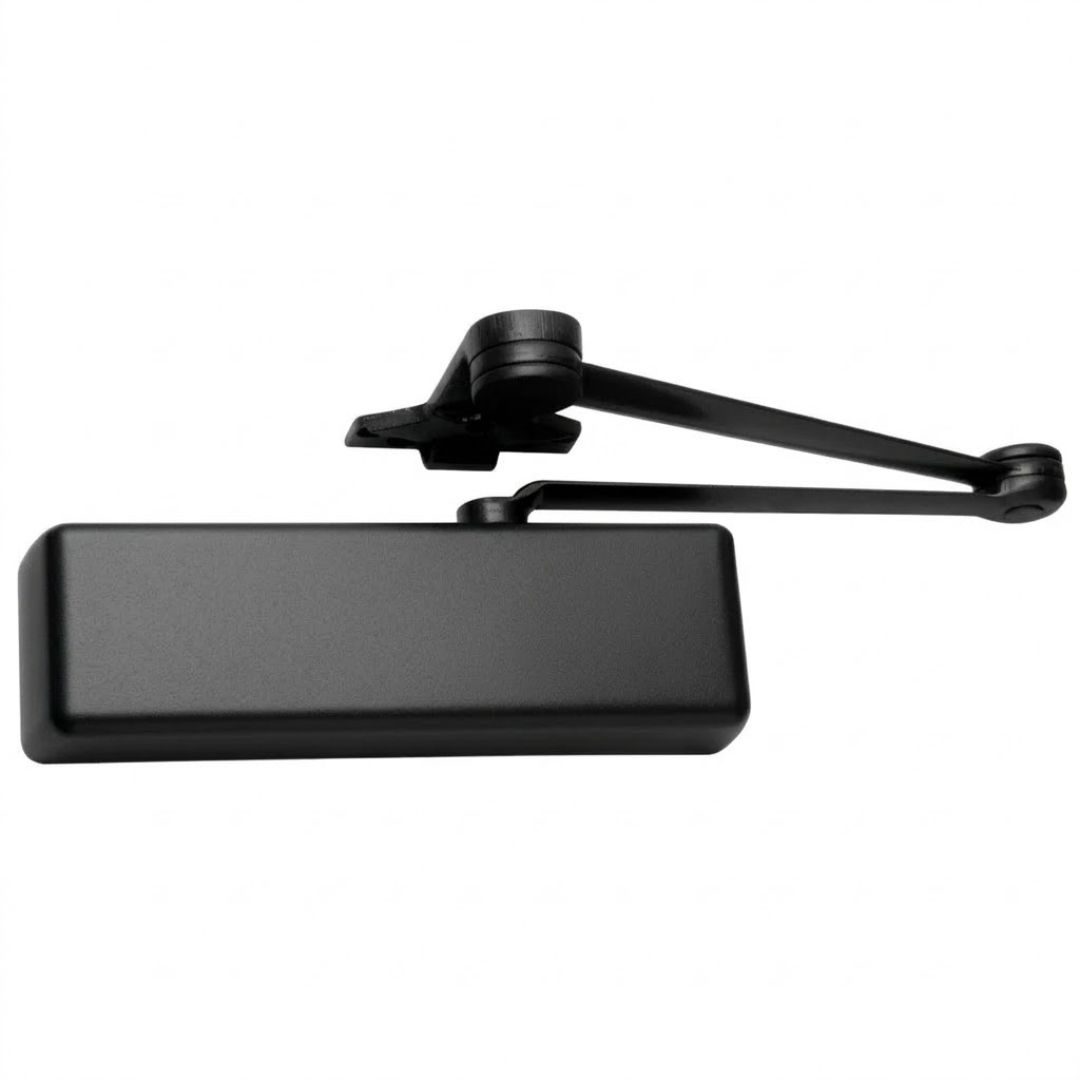

LCN 4031 CUSH Door Closer -CUSH-N-STOP Arm

Finish:Powder Coat

**Closer Mounting:Parallel Arm (PUSH SIDE) mounting

LCN 4031:Cast Iron - Forged Steel Arm - Heat Treated Steel Pinion - All Weather Fluid

Power size:Non-sized (1-4) 4031 cylinder for exterior doors to 36" (914 mm) and interior doorsto 48" (1219 mm).

Handing:Non-Handed

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

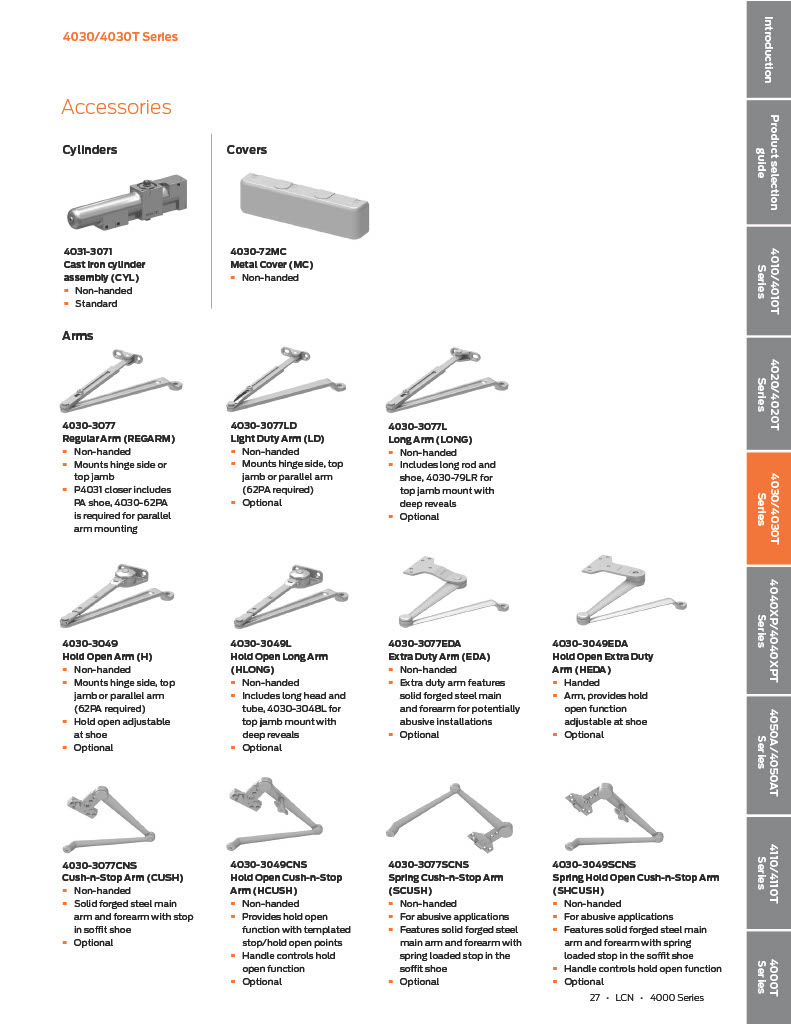

Arm: CUSH-N-STOPARM, 4030-3077CNS, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe. Cover: 4030-72MC Standard, n

on-handed Metal cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

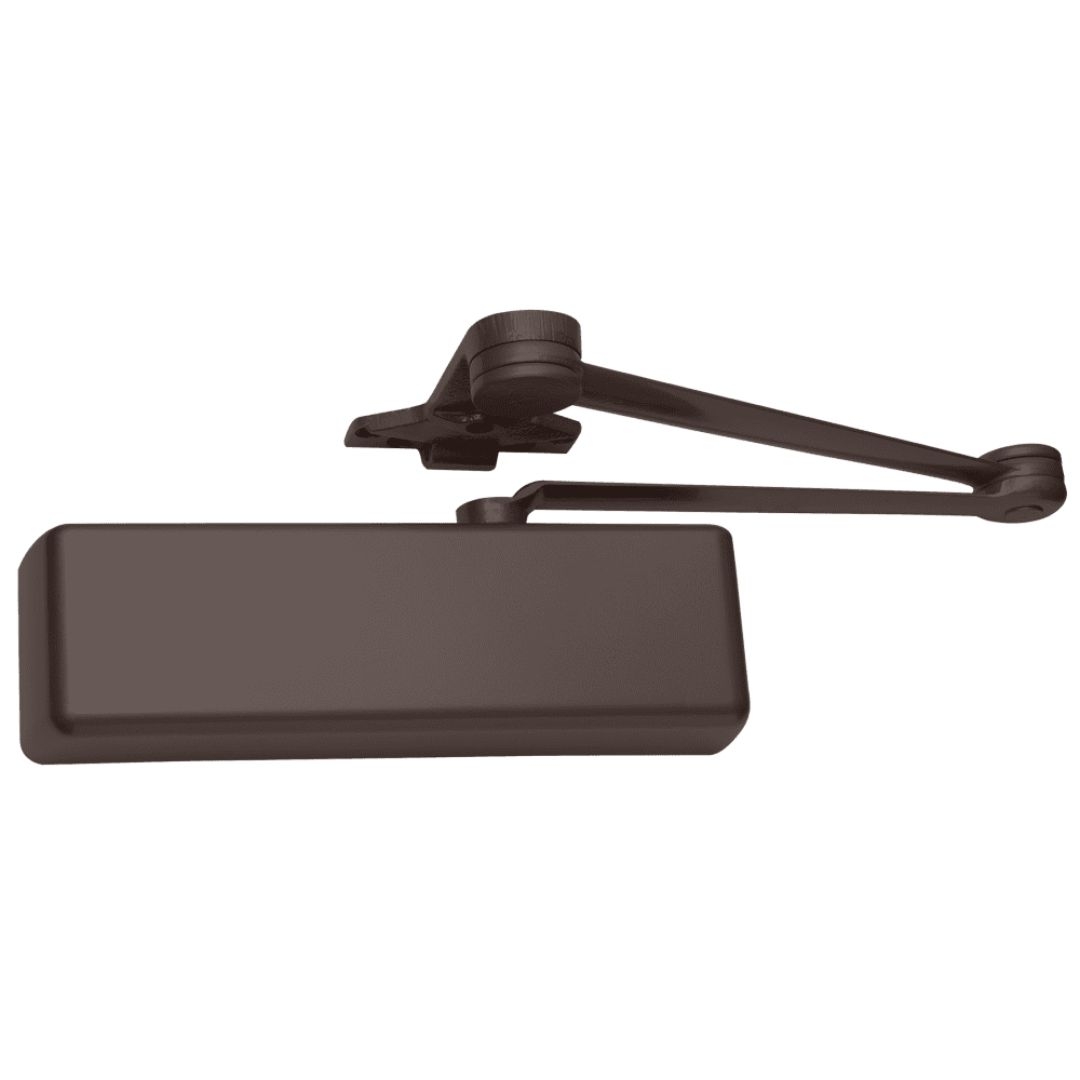

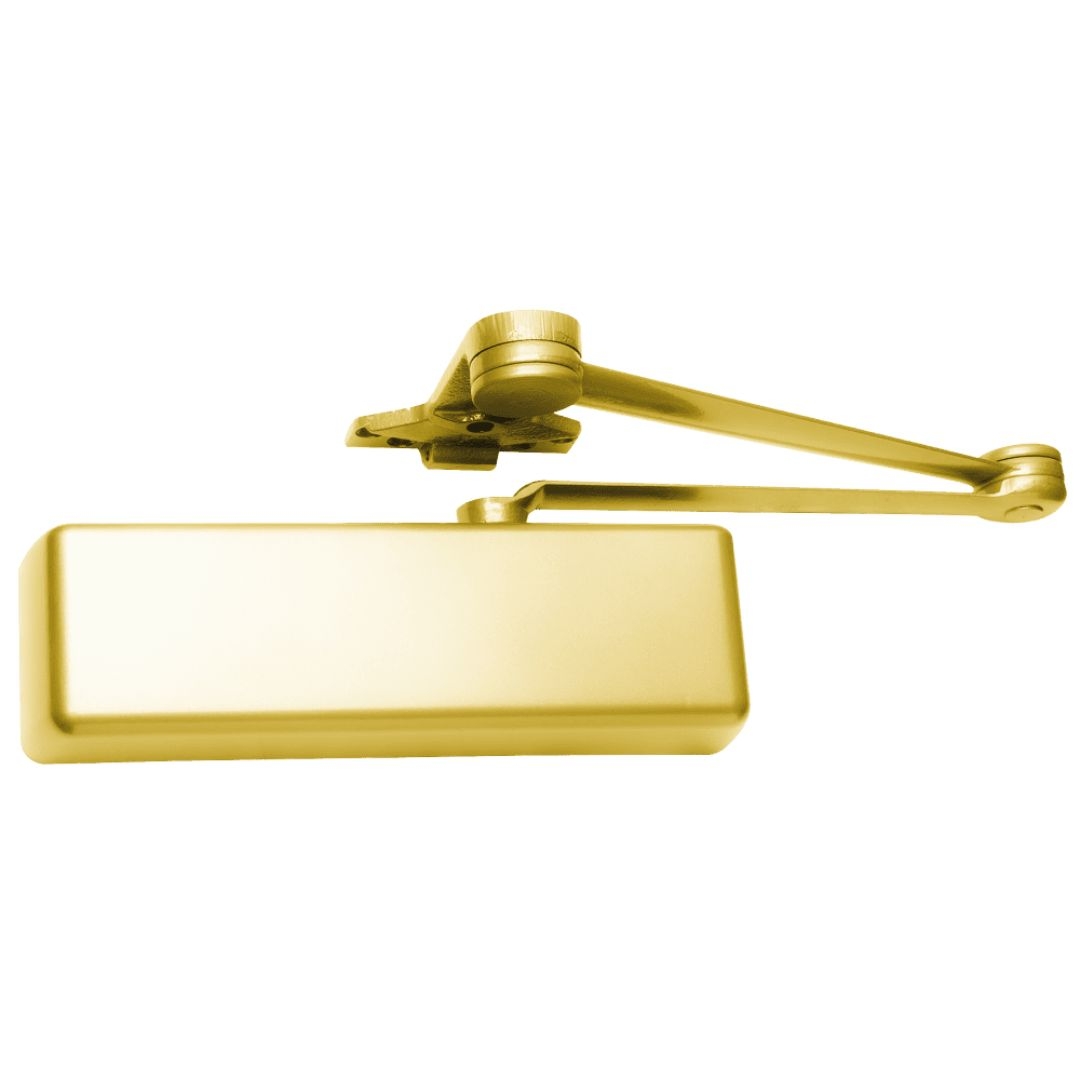

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691) ,BRASS - BRASS (BHMA 696)

Model:LCN, 4031CUSH, 4031-CUSH, 4031 CUSH, 4031CUSHALUM, 4031CUSHDKBRZ, 4031CUSH698, 4031CUSH695

LCN 4031 CUSH Door Closer - CUSH-N-STOP Arm

SKU: 4031CUSH

In Stock
Picture for manufacturer LCN
icon Chat

$502.45

Finish *

ALUM - ALUMINUM (BHMA 689)
ALUM - ALUMINUM (BHMA 689)
DKBRZ - DARK BRONZE (BHMA 695)
DKBRZ - DARK BRONZE (BHMA 695)

About this item

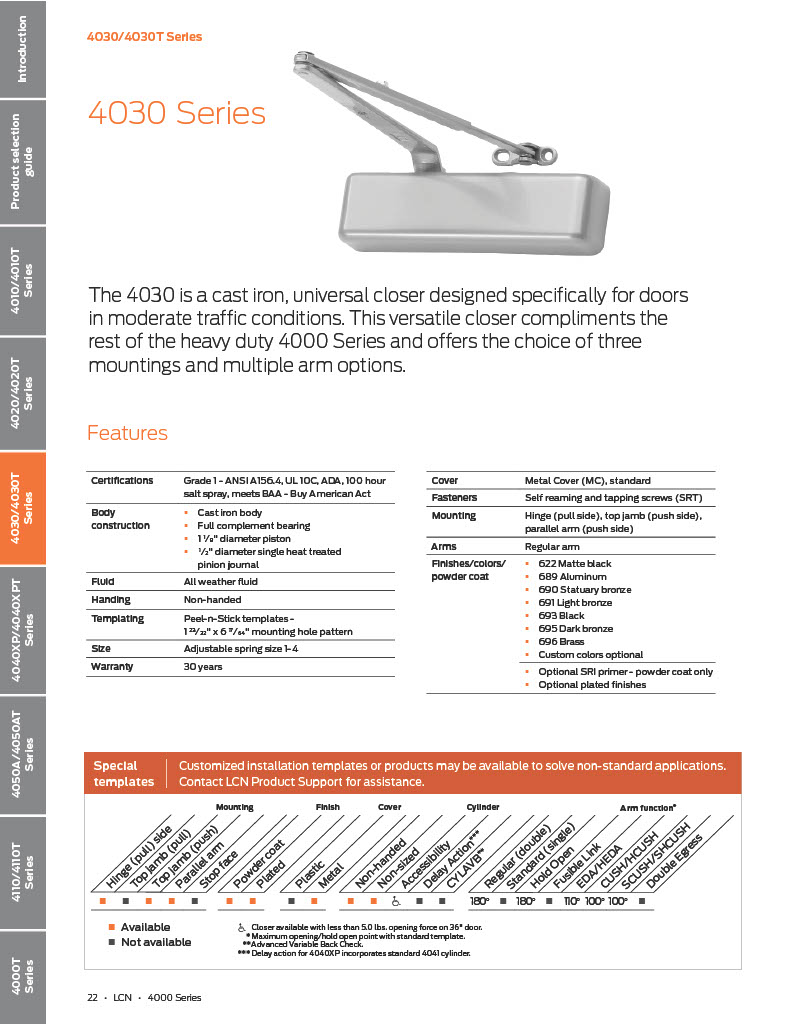

The 4031 is a cast iron, universal closer designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

Resources

LCN 4031 CUSH Door Closer -CUSH-N-STOP Arm

Finish:Powder Coat

**Closer Mounting:Parallel Arm (PUSH SIDE) mounting

LCN 4031:Cast Iron - Forged Steel Arm - Heat Treated Steel Pinion - All Weather Fluid

Power size:Non-sized (1-4) 4031 cylinder for exterior doors to 36" (914 mm) and interior doorsto 48" (1219 mm).

Handing:Non-Handed

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

Arm: CUSH-N-STOPARM, 4030-3077CNS, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe. Cover: 4030-72MC Standard, n

on-handed Metal cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691) ,BRASS - BRASS (BHMA 696)

Model:LCN, 4031CUSH, 4031-CUSH, 4031 CUSH, 4031CUSHALUM, 4031CUSHDKBRZ, 4031CUSH698, 4031CUSH695

4031-CUSH 689
LCN 4031 CUSH Door Closer - CUSH-N-STOP Arm

Product code: 4031CUSH

In Stock

$502.45

$502.45

4031-CUSH 689
LCN 4031 CUSH Door Closer - CUSH-N-STOP Arm

Product code: 4031CUSH

In Stock

$502.45

$502.45
