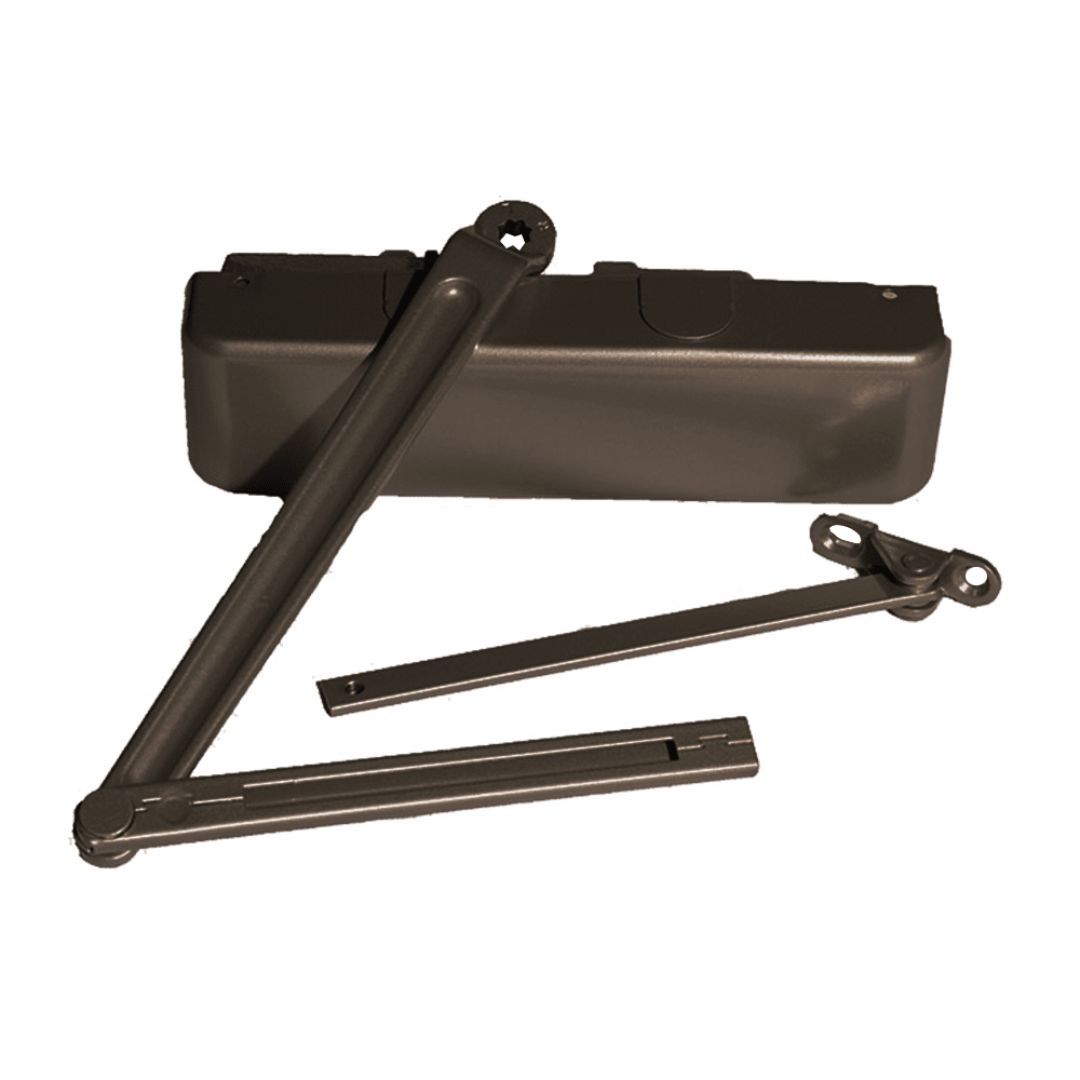

LCN 4031 Rw/PA Door Closer - Regular Arm

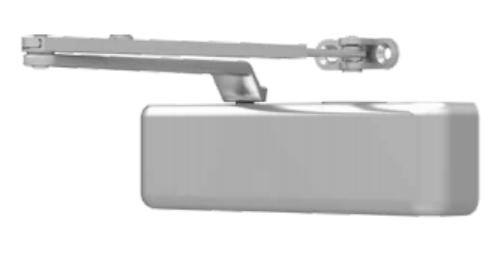

4030_LCN

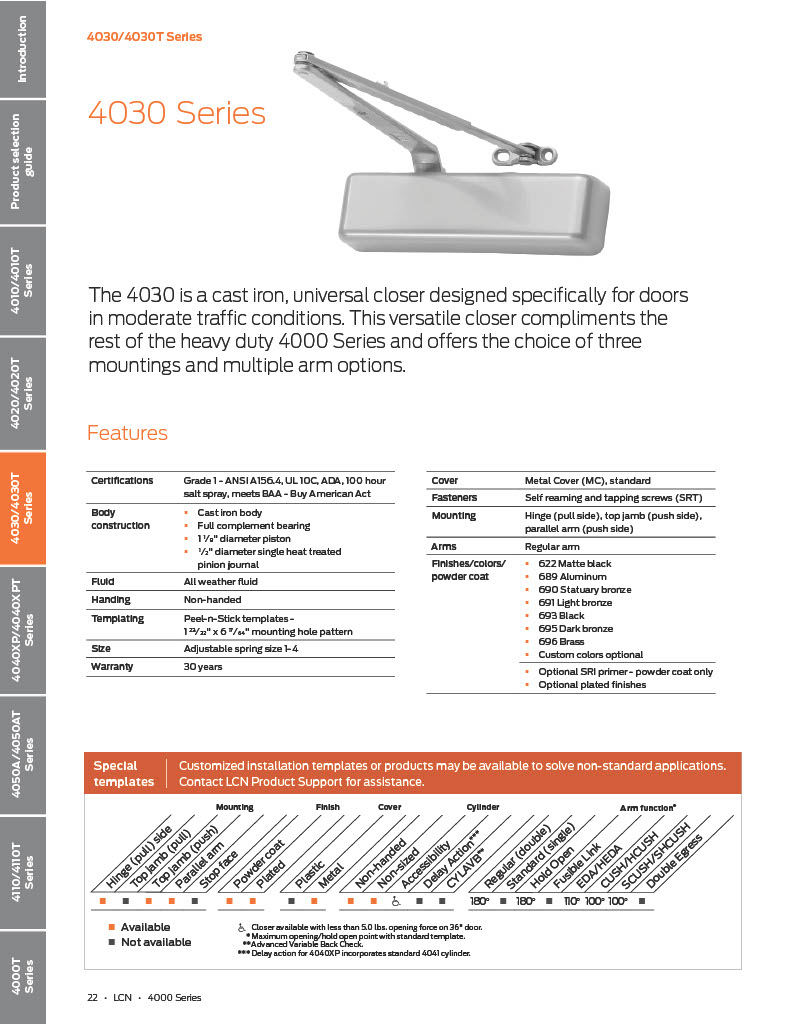

1-Page22-LCN-4000

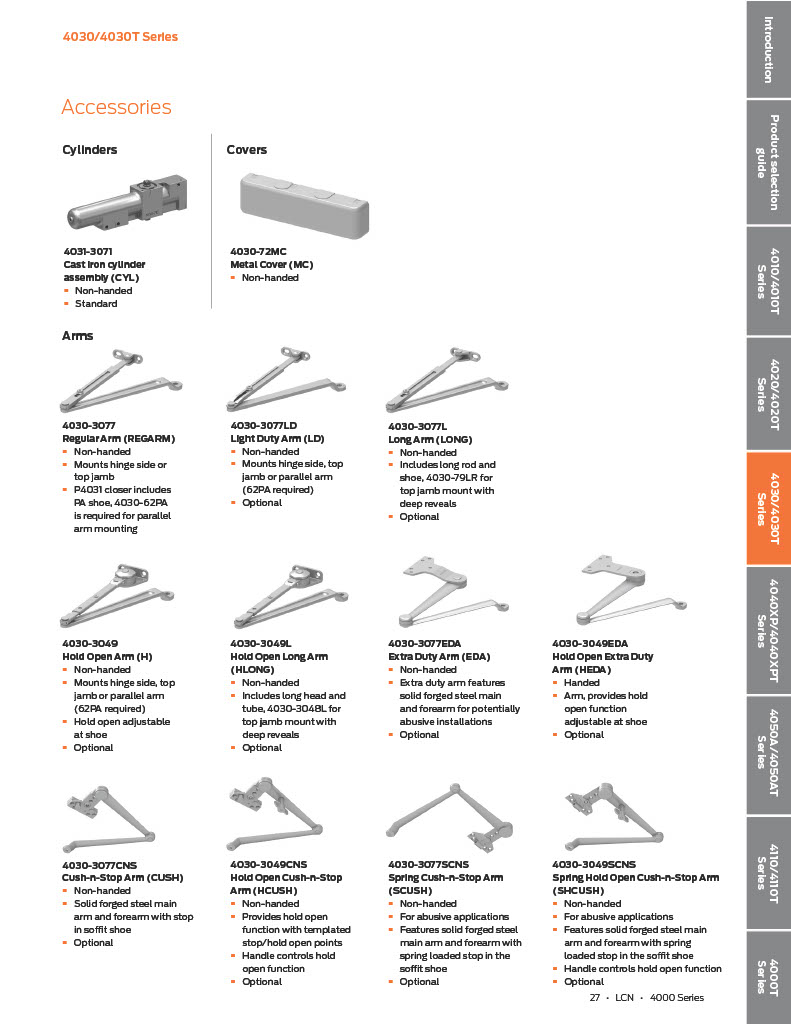

1-Page27-LCN-4000

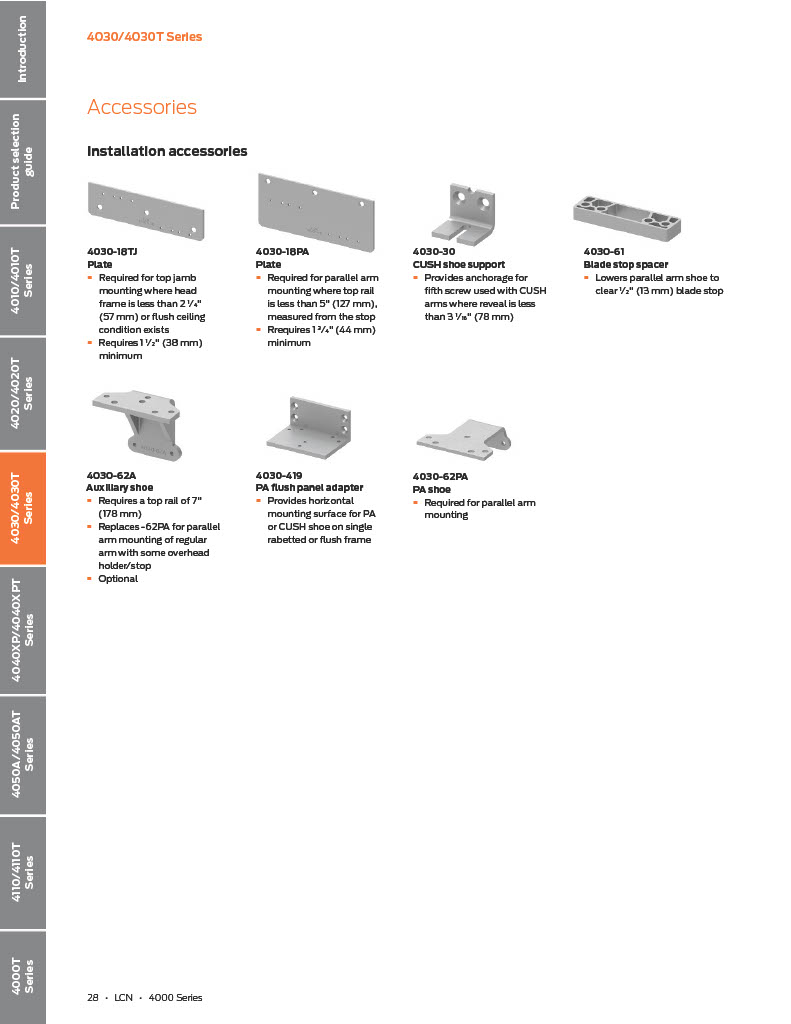

1-Page28-LCN-4000
4030_LCN
1-Page22-LCN-4000
1-Page27-LCN-4000
1-Page28-LCN-4000
naxt
prev

Product Details

LCN 4031 Rw/PA- Heavy Duty Door Closer, regular arm with PA bracket

Finish:Powder Coat

**Tri-Mount Closer:Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

LCN 4031:Cast Iron - Forged Steel Arm - Heat Treated Steel Pinion - All Weather Fluid

Power size:Non-sized (1-4) 4031 cylinder for exterior doors to 36" (914 mm) and interior doorsto 48" (1219 mm).

Handing:Non-Handed

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

Arm:4030-3077 Regular arm, Non-handed arm mounts pull side or top jamb with shallow reveal.

LCN 4040XP Rw/PA Alum

PA shoe:4030-62PA shoe for parallel arm mounting.

Cover:4030-72MC Standard, non-handed Metal cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691) ,BRASS - BRASS (BHMA 696)

Model:LCN, 4030, 4031, 4031-REG, 4031 Rw/PA, 4031ALUM, 4031DKBRZ, 4031LTBRZ, 4031BRASS, 4031698, 4031695, 4031691, 4031696.

LCN 4031 Rw/PA Door Closer - Regular Arm

SKU: 4031

In Stock
icon Chat
Picture for manufacturer LCN

Finish *

ALUM - ALUMINUM (BHMA 689)
ALUM - ALUMINUM (BHMA 689)
DKBRZ - DARK BRONZE (BHMA 695)
DKBRZ - DARK BRONZE (BHMA 695)
LTBRZ - LIGHT BRONZE (BHMA 691)
LTBRZ - LIGHT BRONZE (BHMA 691)

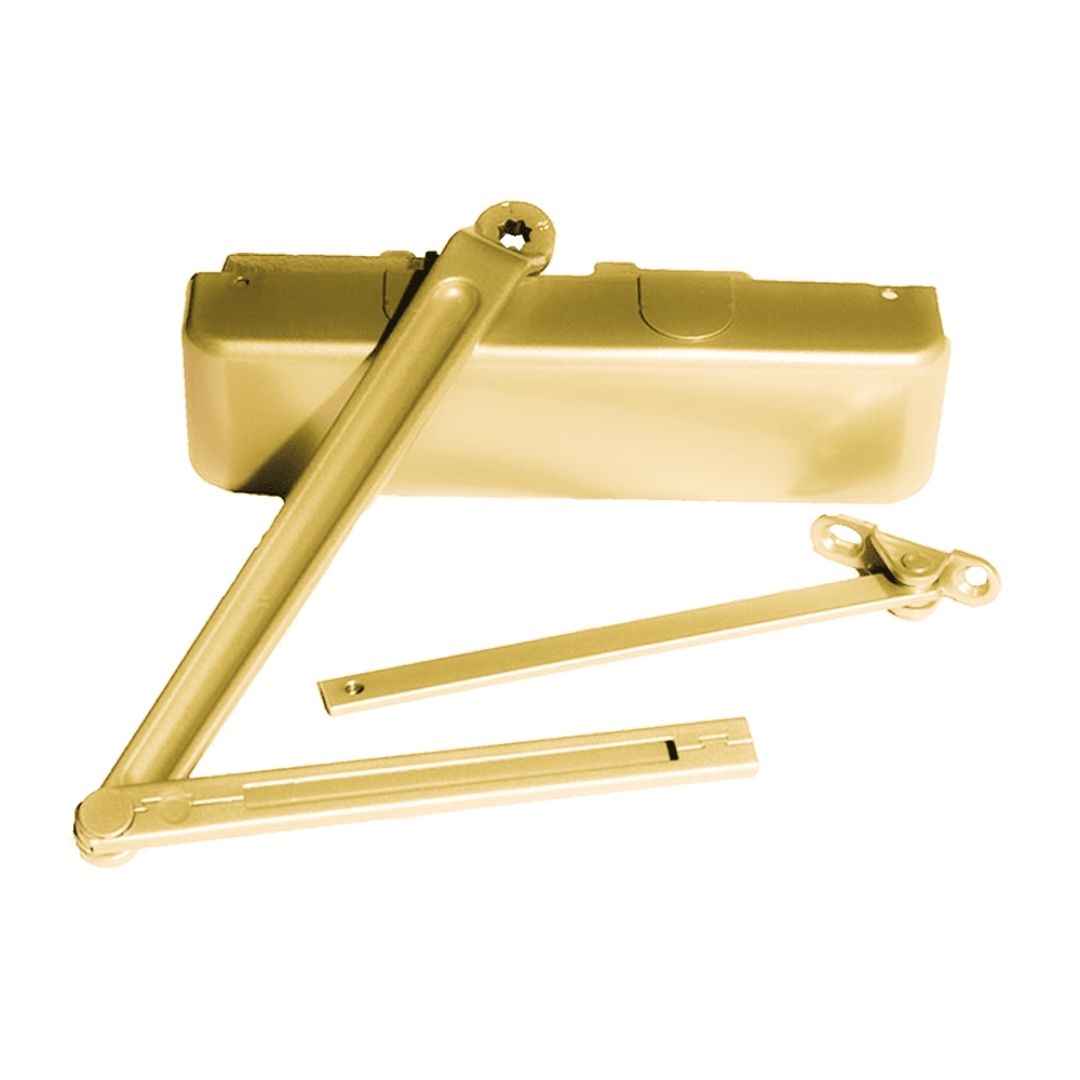

BRASS - BRASS (BHMA 696)
BRASS - BRASS (BHMA 696)

$436.15

About this item

The 4031 is a cast iron, universal closer designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

Resources

LCN 4031 Rw/PA- Heavy Duty Door Closer, regular arm with PA bracket

Finish:Powder Coat

**Tri-Mount Closer:Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

LCN 4031:Cast Iron - Forged Steel Arm - Heat Treated Steel Pinion - All Weather Fluid

Power size:Non-sized (1-4) 4031 cylinder for exterior doors to 36" (914 mm) and interior doorsto 48" (1219 mm).

Handing:Non-Handed

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

Arm:4030-3077 Regular arm, Non-handed arm mounts pull side or top jamb with shallow reveal.

LCN 4040XP Rw/PA Alum

PA shoe:4030-62PA shoe for parallel arm mounting.

Cover:4030-72MC Standard, non-handed Metal cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691) ,BRASS - BRASS (BHMA 696)

Model:LCN, 4030, 4031, 4031-REG, 4031 Rw/PA, 4031ALUM, 4031DKBRZ, 4031LTBRZ, 4031BRASS, 4031698, 4031695, 4031691, 4031696.

4030_LCN
LCN 4031 Rw/PA Door Closer - Regular Arm

Product code: 4031

In Stock

$671.00

$436.15

4030_LCN
LCN 4031 Rw/PA Door Closer - Regular Arm

Product code: 4031

In Stock

$671.00

$436.15
