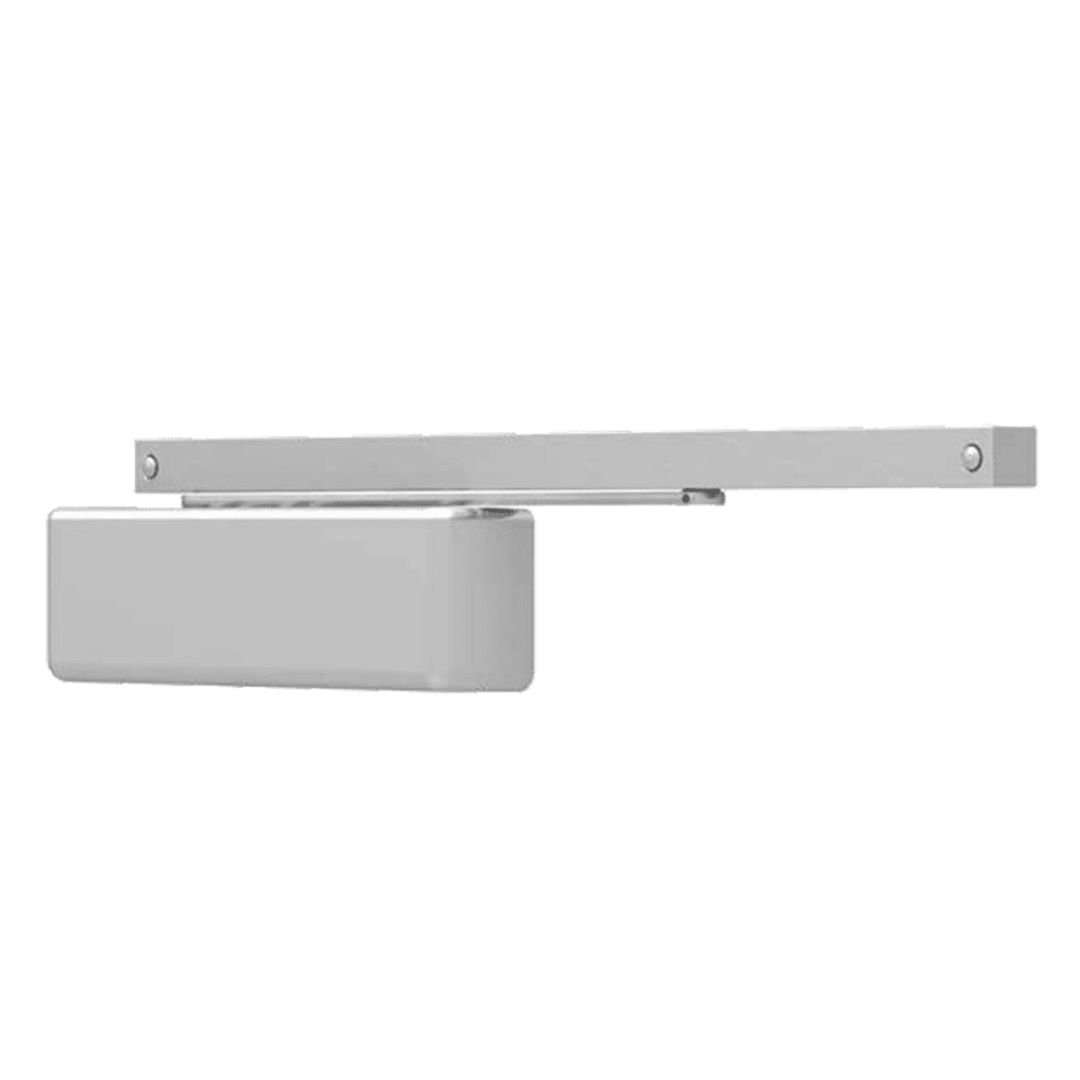

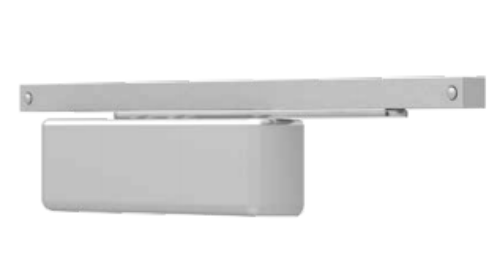

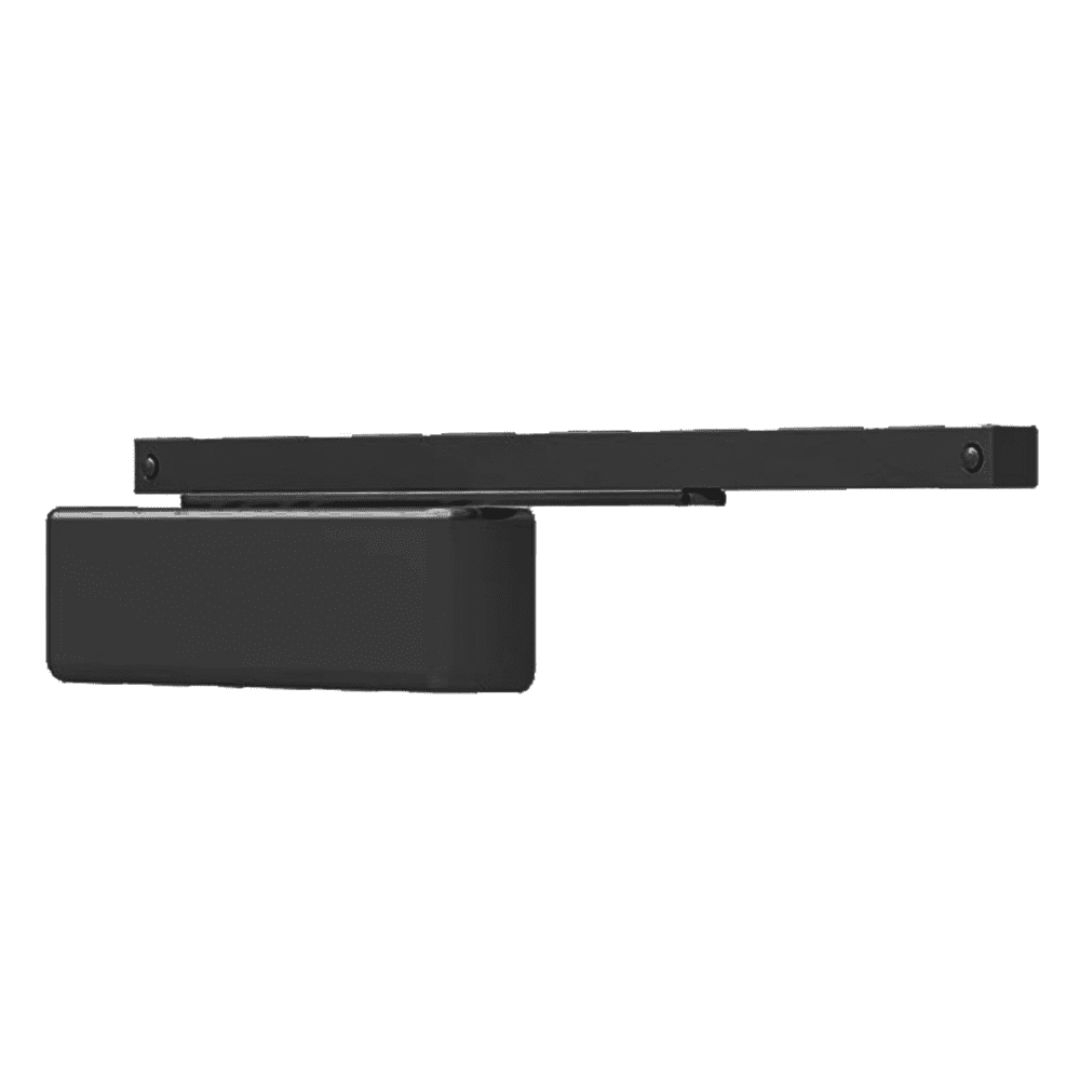

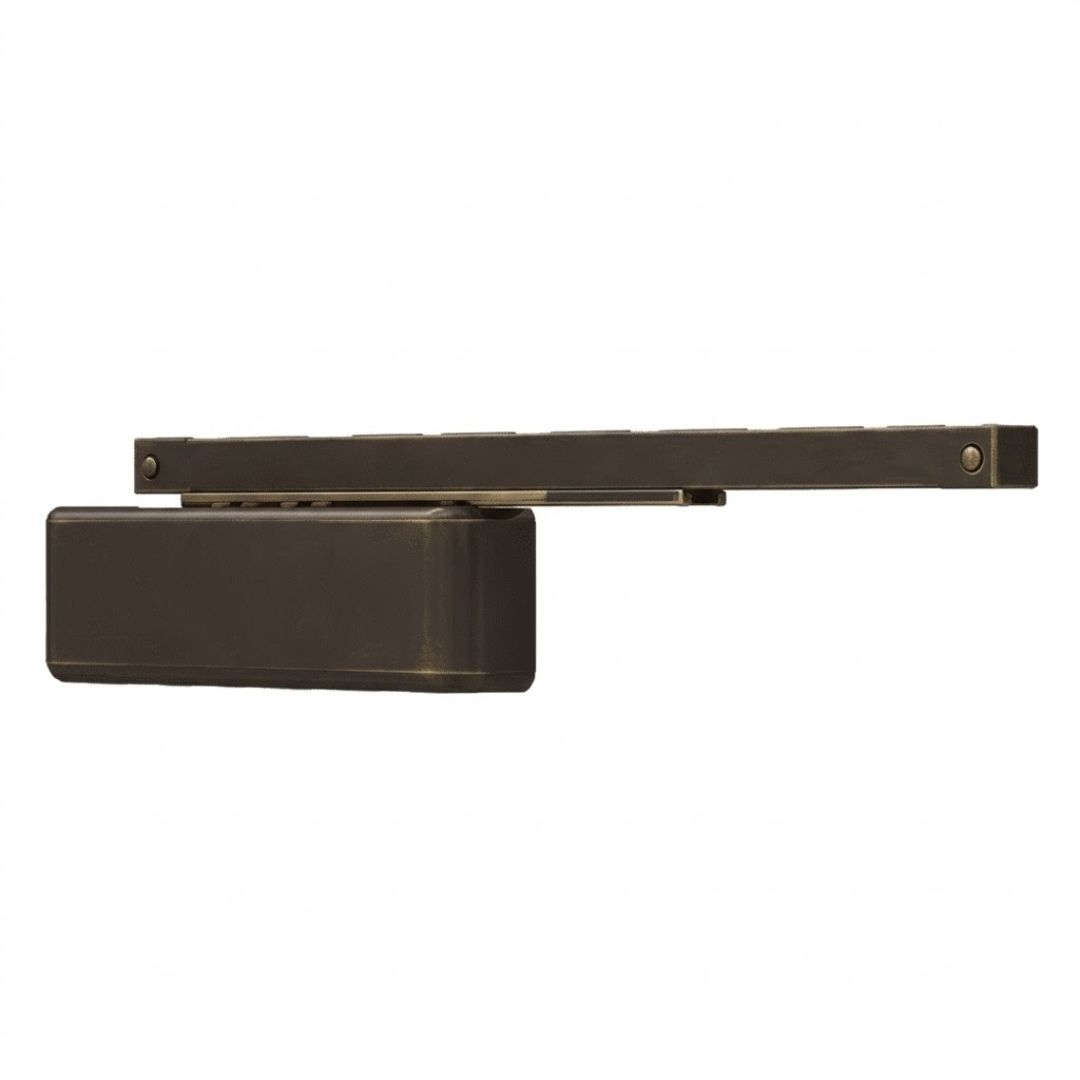

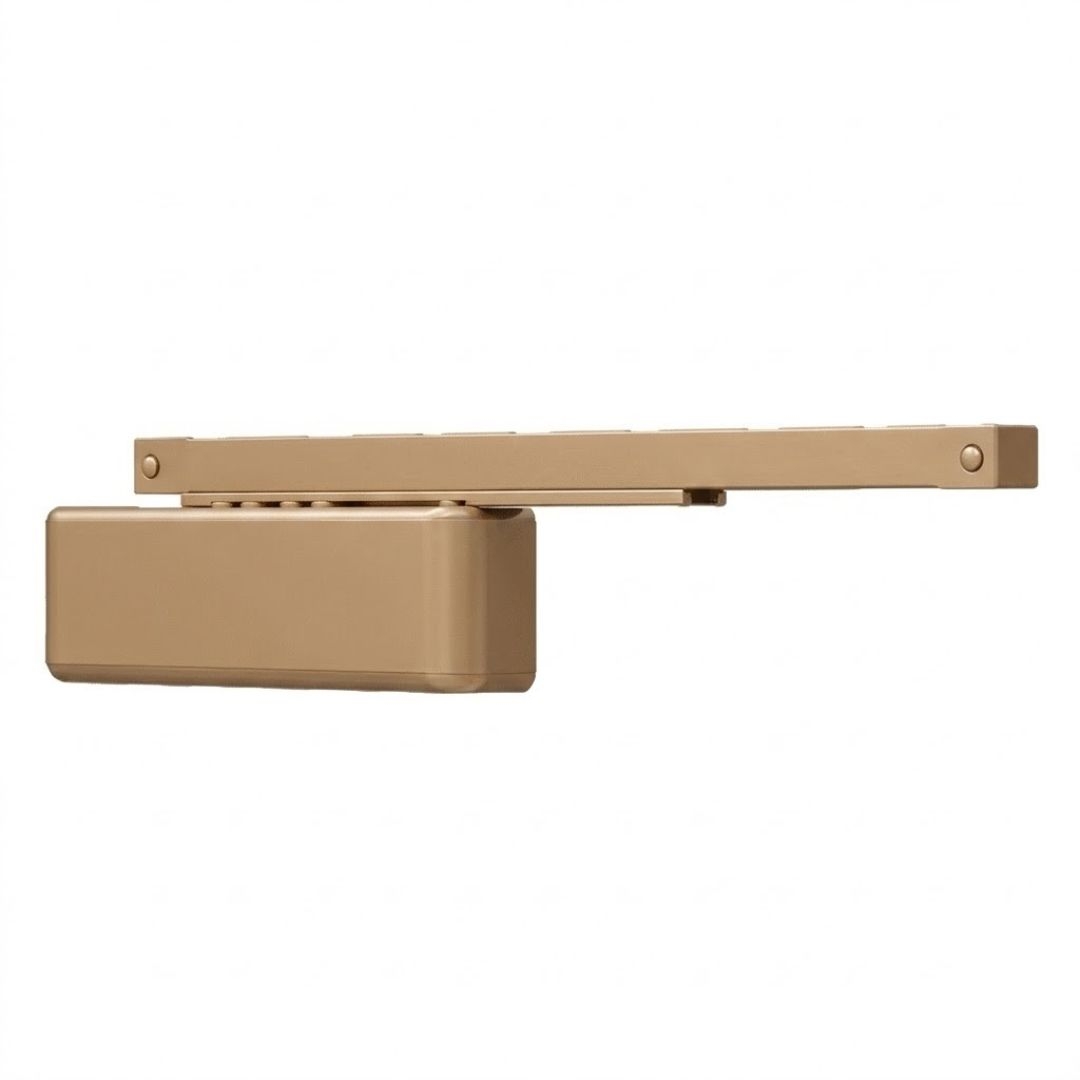

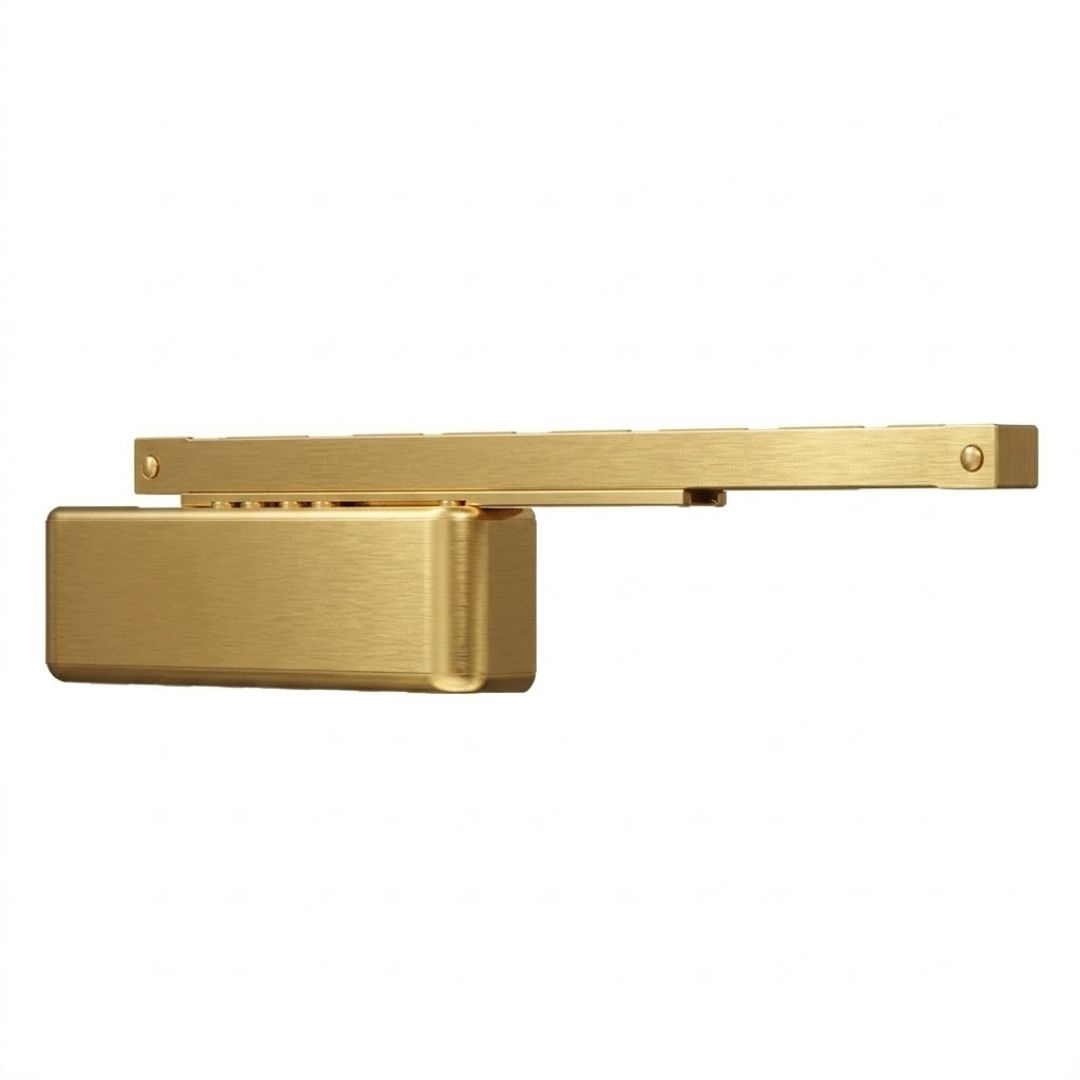

LCN 4111T H BUMPER Hold Open Track Closer W/ Bumper- Mounting Stop Face (Push Side) - Size 1 (ADA)

LCN 4111T H BUMPER Hold Open Track Closer W/ Bumper

"Mounting Stop Face (Push Side)"

Size 1 Interior door width 26˝ (660mm) - 34˝ (864mm)(ADA)

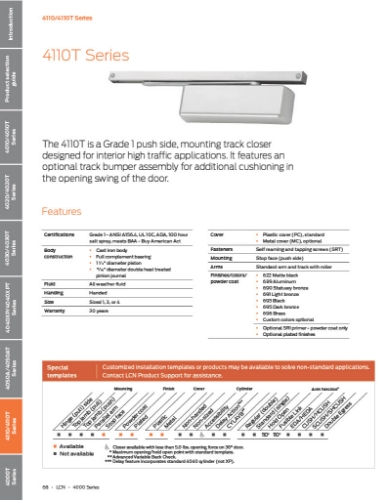

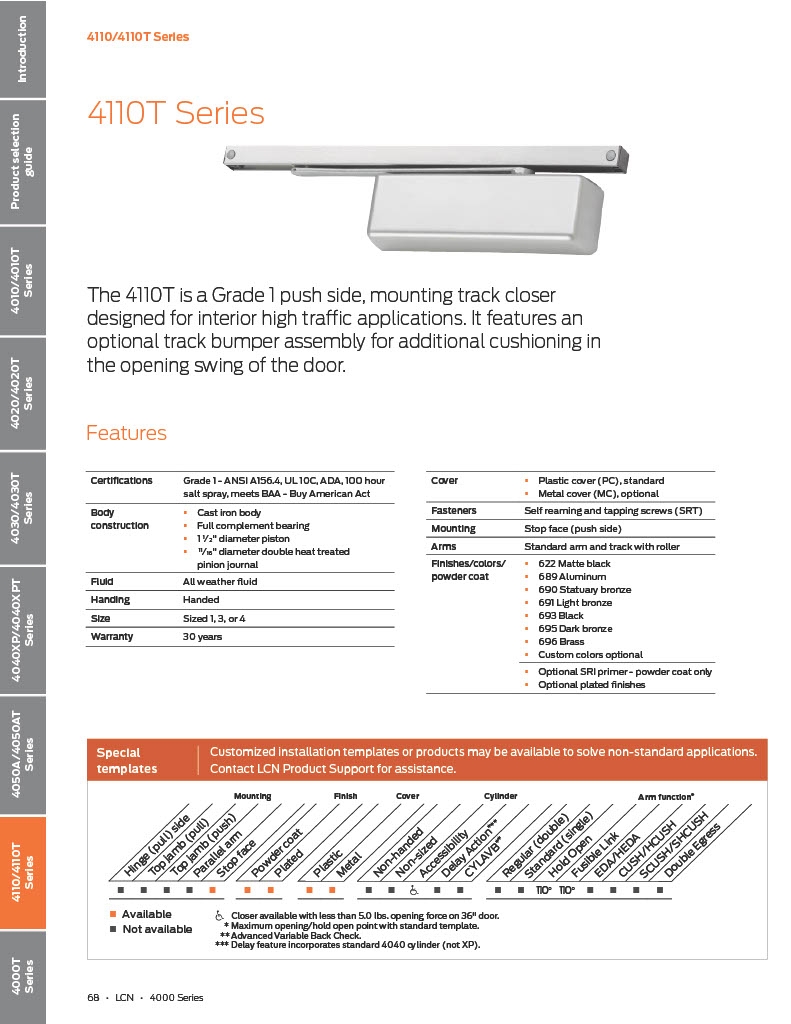

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm:Hold-Open Arm and Track with Roller

Fluid:All Weather Fluid

Cover:Plastic, Standard

Fasteners:Self Reaming and Tapping Screws (SRT)

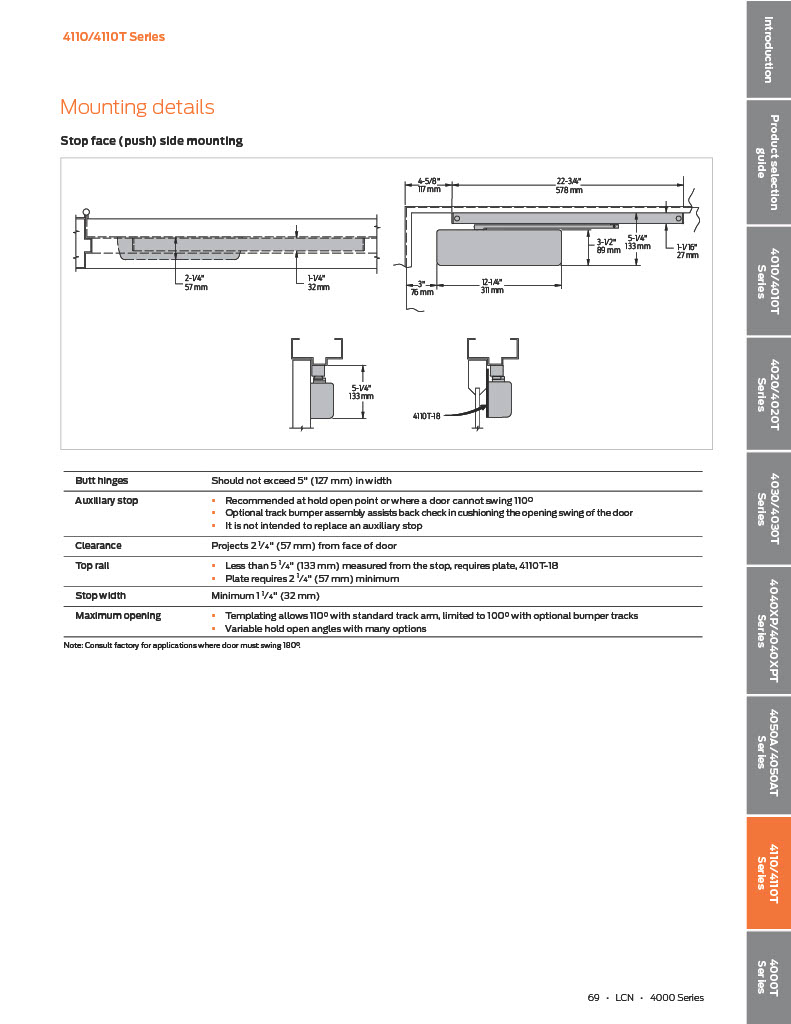

Stop Width:Minimum 1-1/4˝ (32 mm)

Top Rail:Less than 5-1/4˝ (133 mm) measured from the stop, requires PLATE, 4110T-18 n Plate requires 2-1/4˝ (57 mm) minimum

Clearance Projects:2-1/4˝ (57 mm)from face of door

Certifications:Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:30 years
