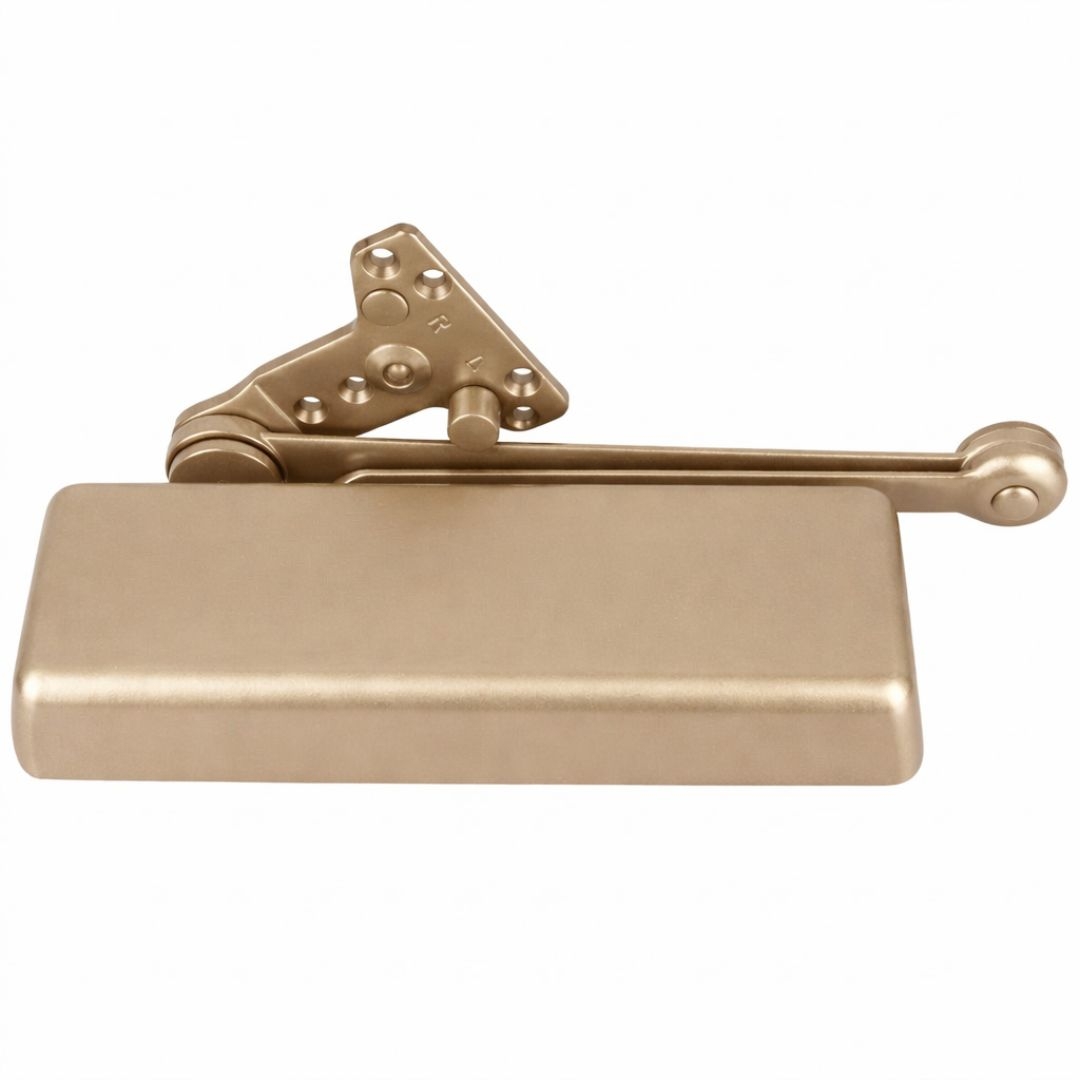

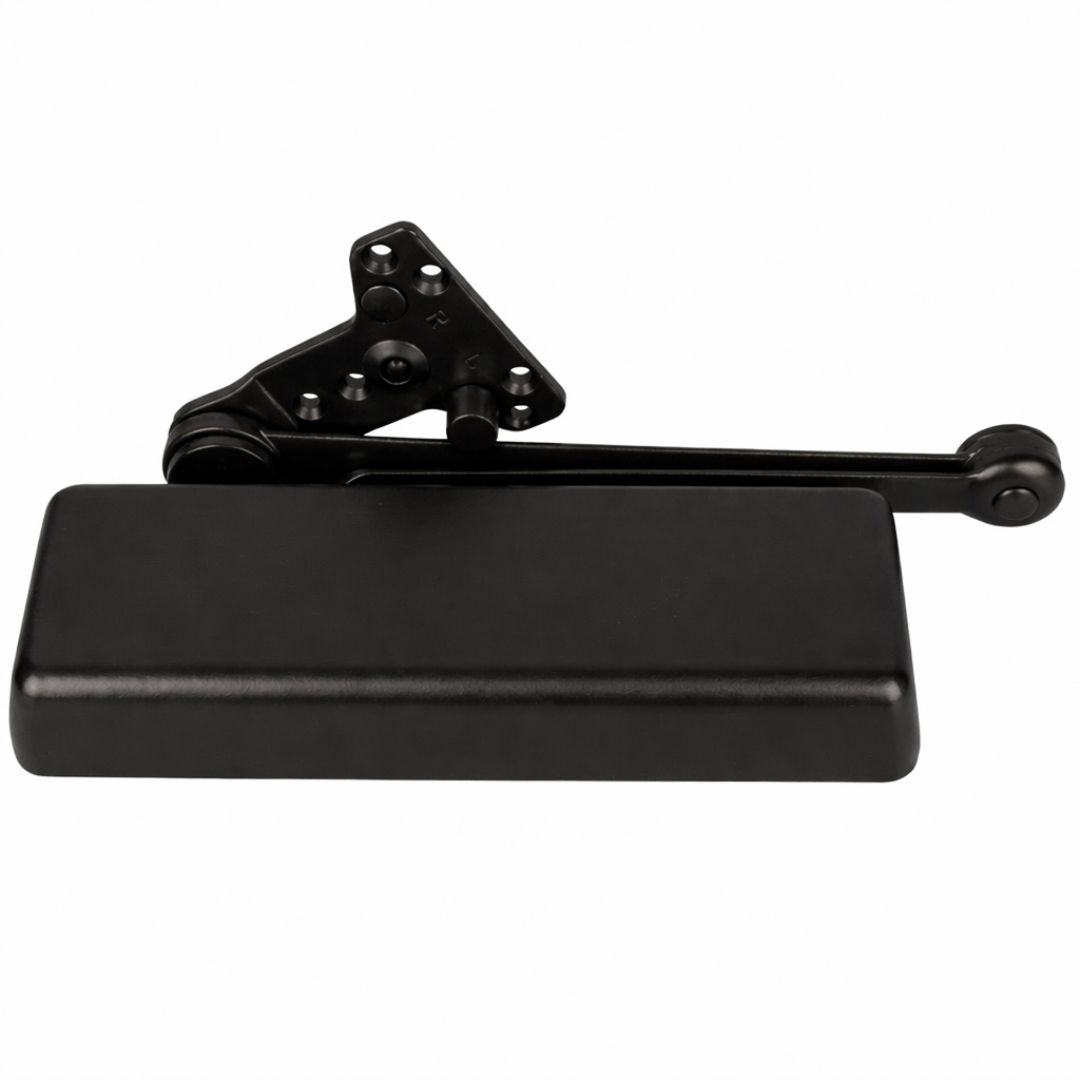

LCN 4116 CUSH, Door Closer - Mounting Parallel Arm (Push Side) - CUSH-N-STOP Arm

LCN 4116- Heavy Duty Door Closer, CUSH-N-STOP Arm.

Finish:Powder Coat

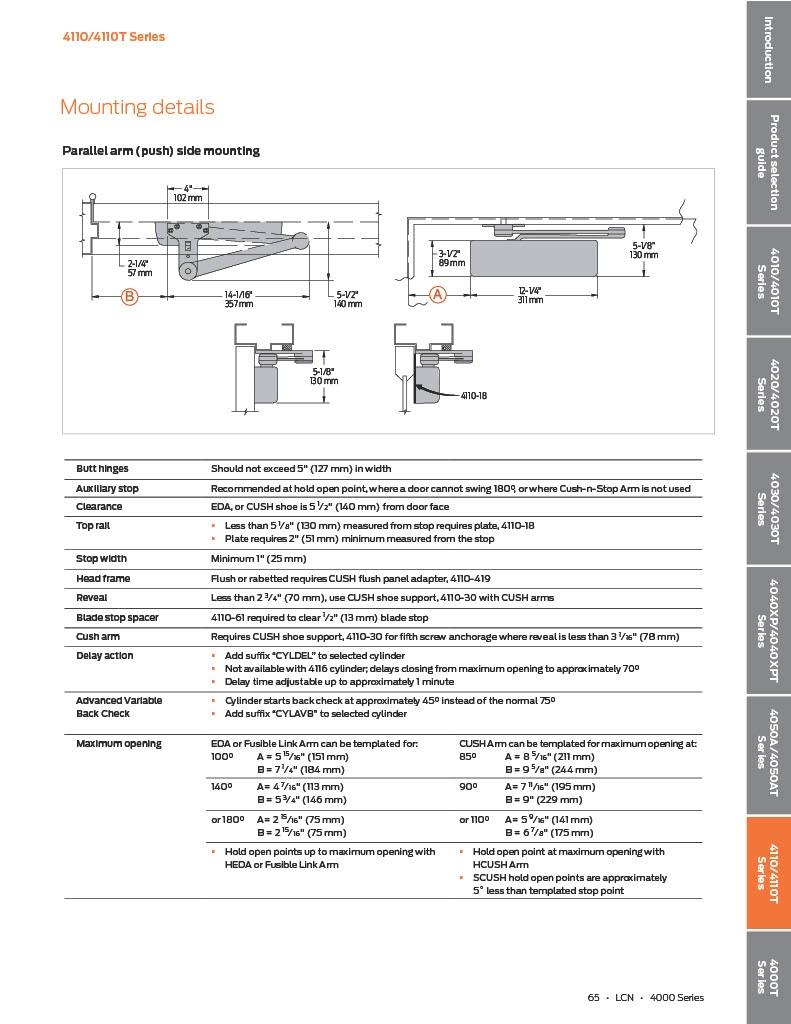

**Closer Mounting:Closer mounts parallel arm(Push Side) only.

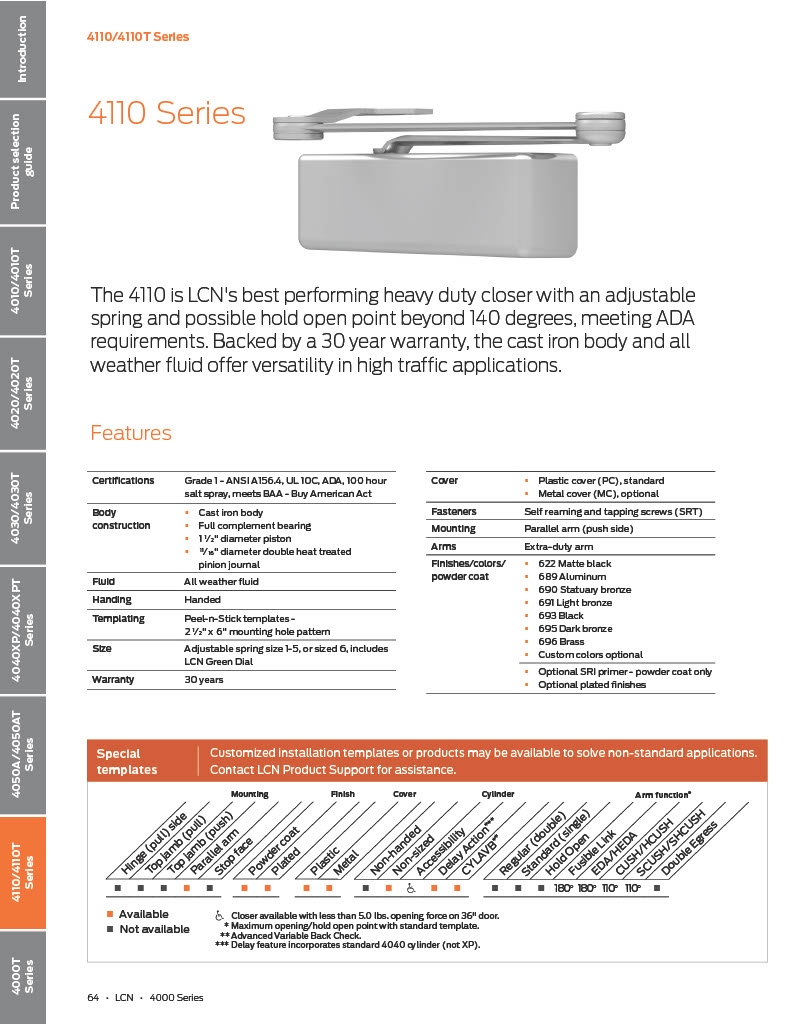

LCN 4110 Series:Cast Iron  - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCN Fast Power Adjust - Fast & Accurate Installation.

Power size:Sized 6 cylinder adjustable for interior doors to 5 0 and exteriordoors to 4 0

Handing:Handed; specify right or left swinging door

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

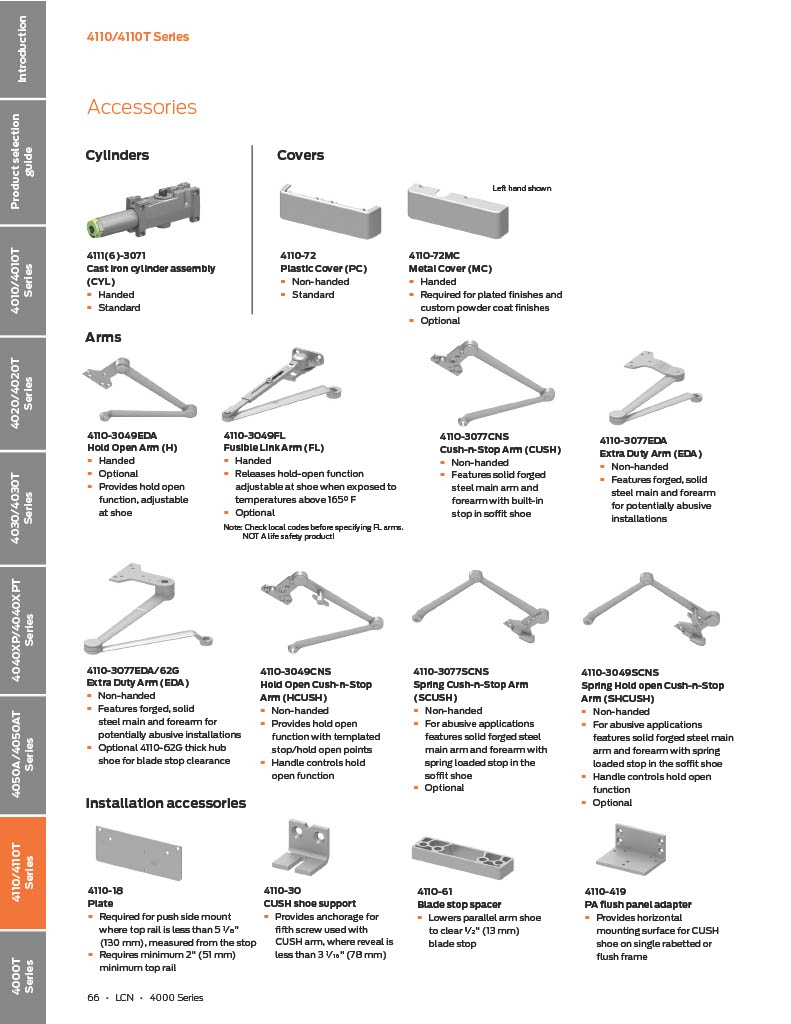

Arm:*Arm:*CUSH-N-STOPARM, 4110-3077CNS, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe.

Cover:4110-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

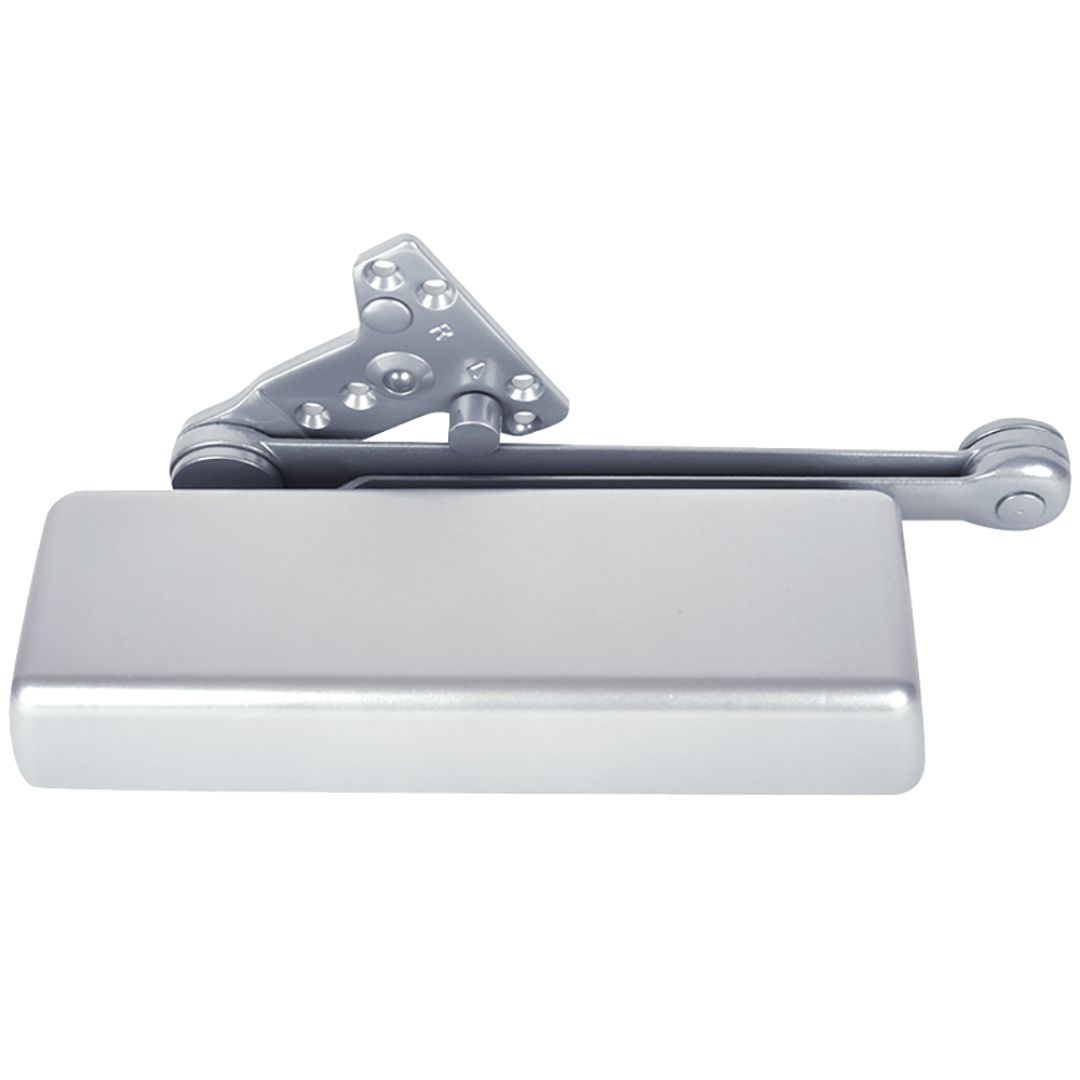

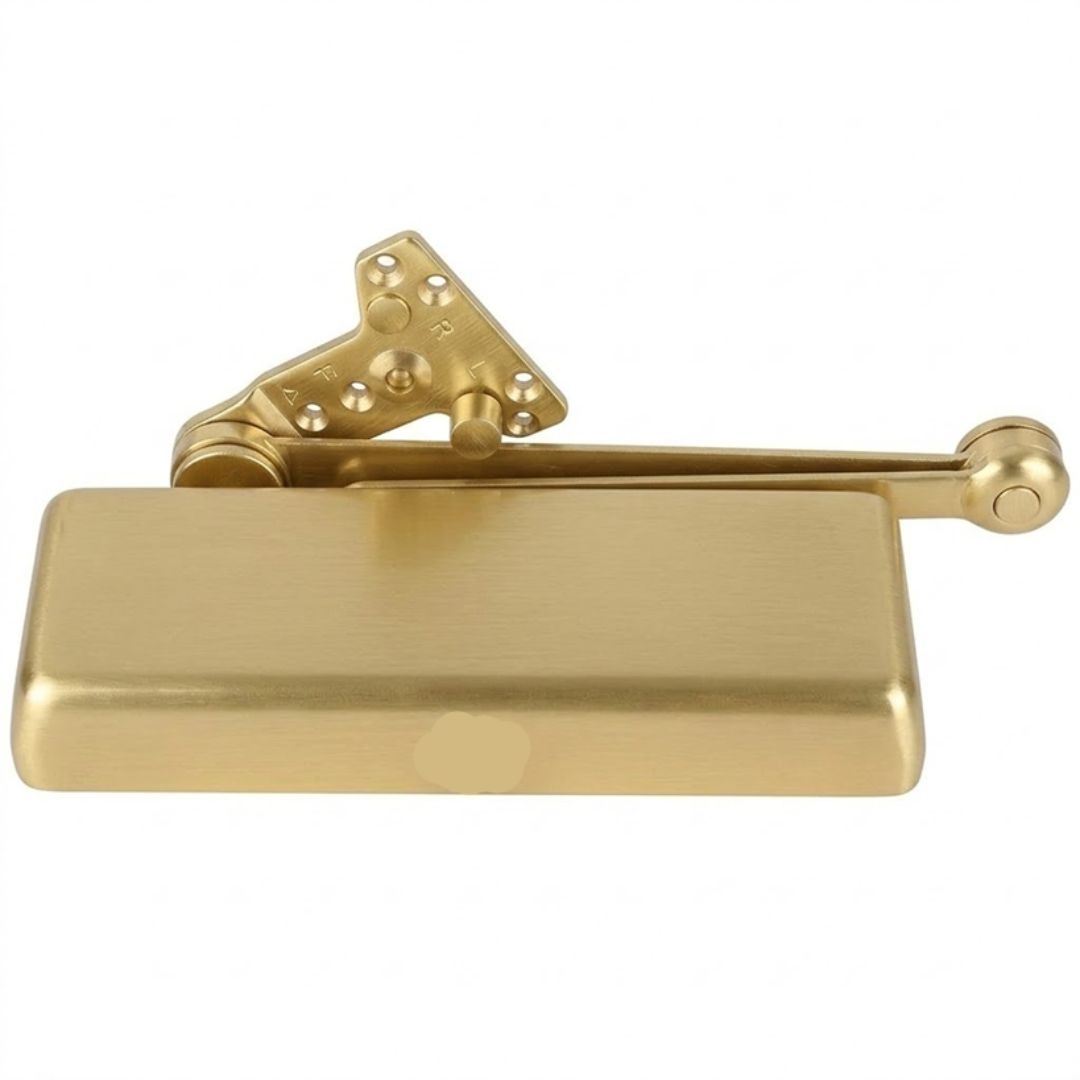

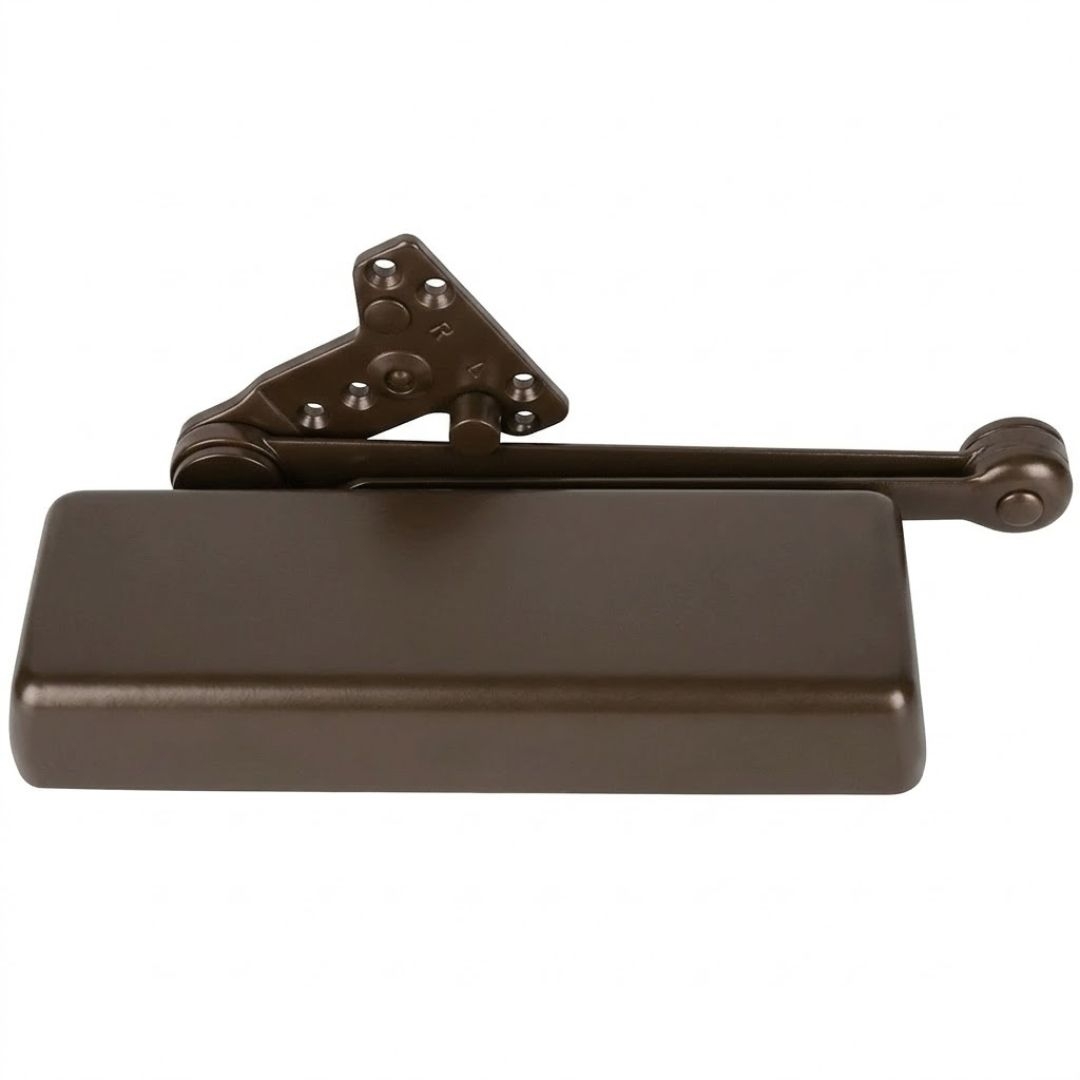

*Finishes: *ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691), BRASS - BRASS (BHMA 696)

Model: LCN, 4016, 4116CUSH, 4116-CUSH, CUSH, 4116CUSHALUM, 4116CUSH689, RH, LH, 4116CUSHRHALUM, 4116CUSHLHALUM, Right Hand, Left Hand.
