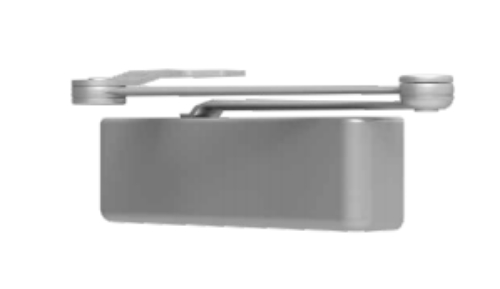

LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm

Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
naxt
prev

Product Details

LCN 4211 CUSH Heavy Duty, High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop Arm

Size: Adjustable Size 2-5

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Cush-N-Stop arm

Fluid: All Weather Fluid

Cover: Metal Security

Fasteners: TORX machine screw pack

Clearance: For EDA or CUSH is 5-1/2˝ (140 mm)from push side of door

Top Rail: Less than 5-1/8˝ (130 mm) measured from stop, requires PLATE 4210-18. Plate requires 2˝ (51 mm) minimum top rail

Stop Width: 2-3/4˝ (70 mm)recommended.

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4211 meeting ADA requirements

Warranty: 15 years

Model: LCN 4211 CUSH LH AL, 4211 CUSH RH AL

LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm

SKU: 4211-CUSH

In Stock
Picture for manufacturer LCN
icon Chat

$653.48

Finish *

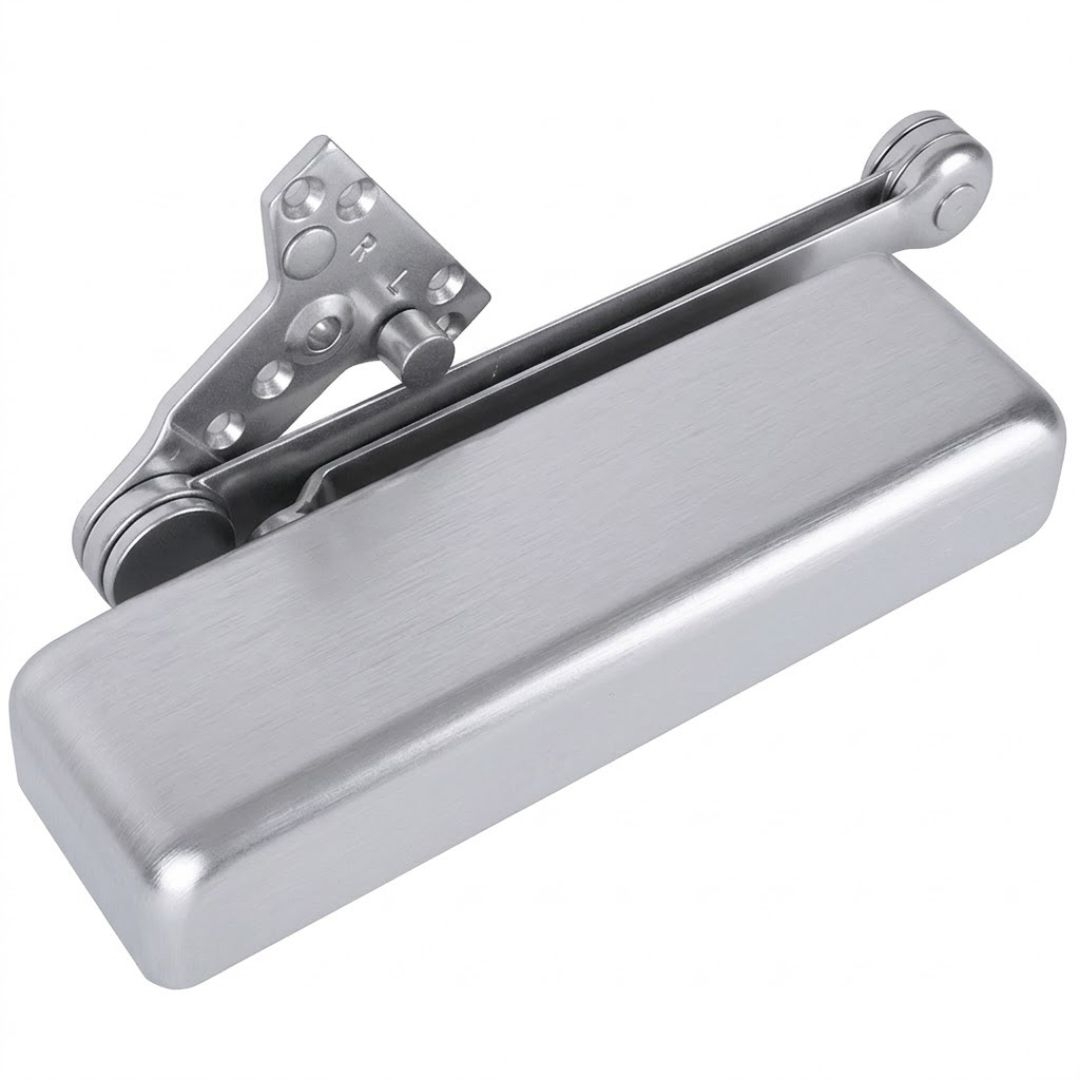

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted

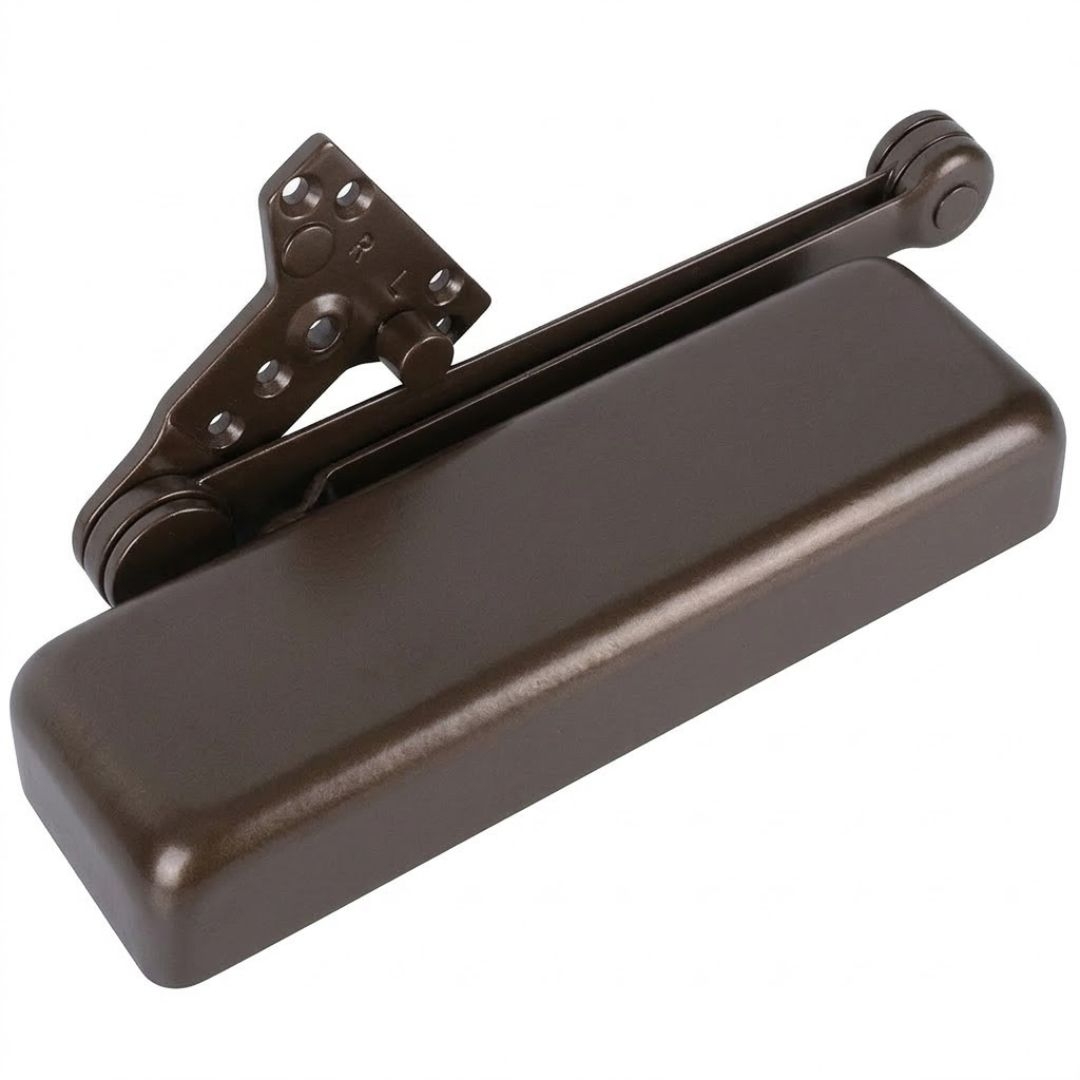

695 - Dark Bronze Painted
695 - Dark Bronze Painted

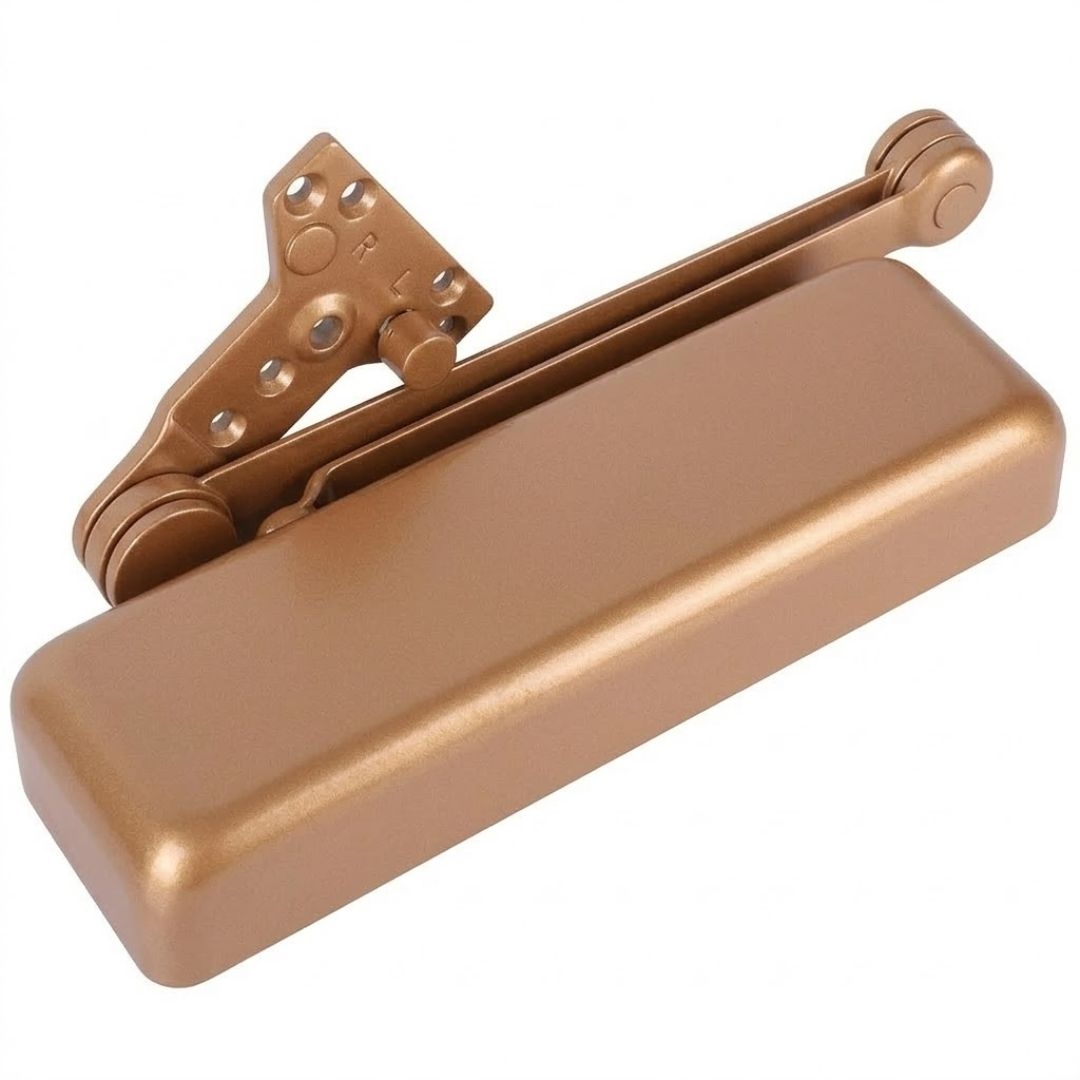

691 - Light Bronze Painted
691 - Light Bronze Painted

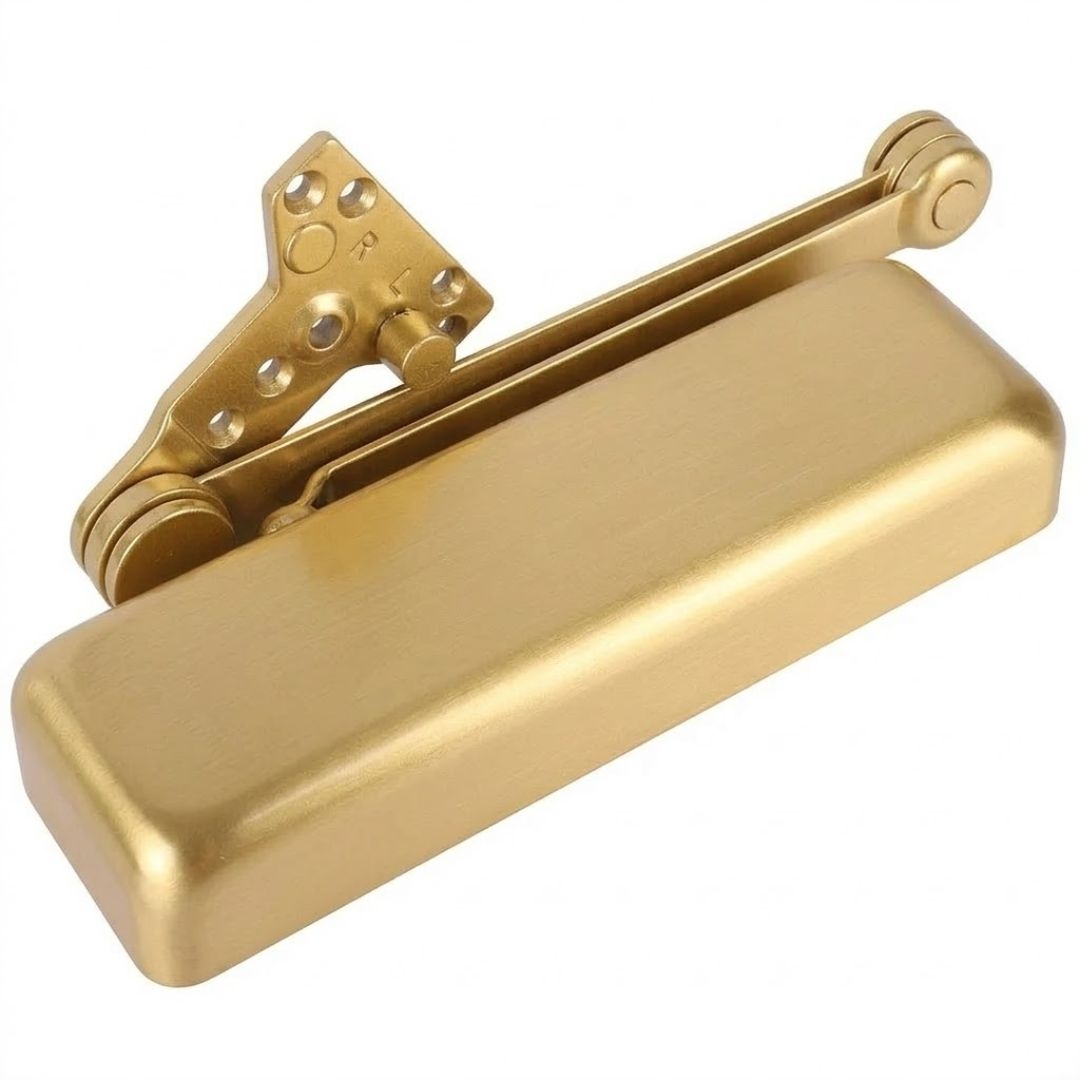

696 - Satin Brass Painted
696 - Satin Brass Painted

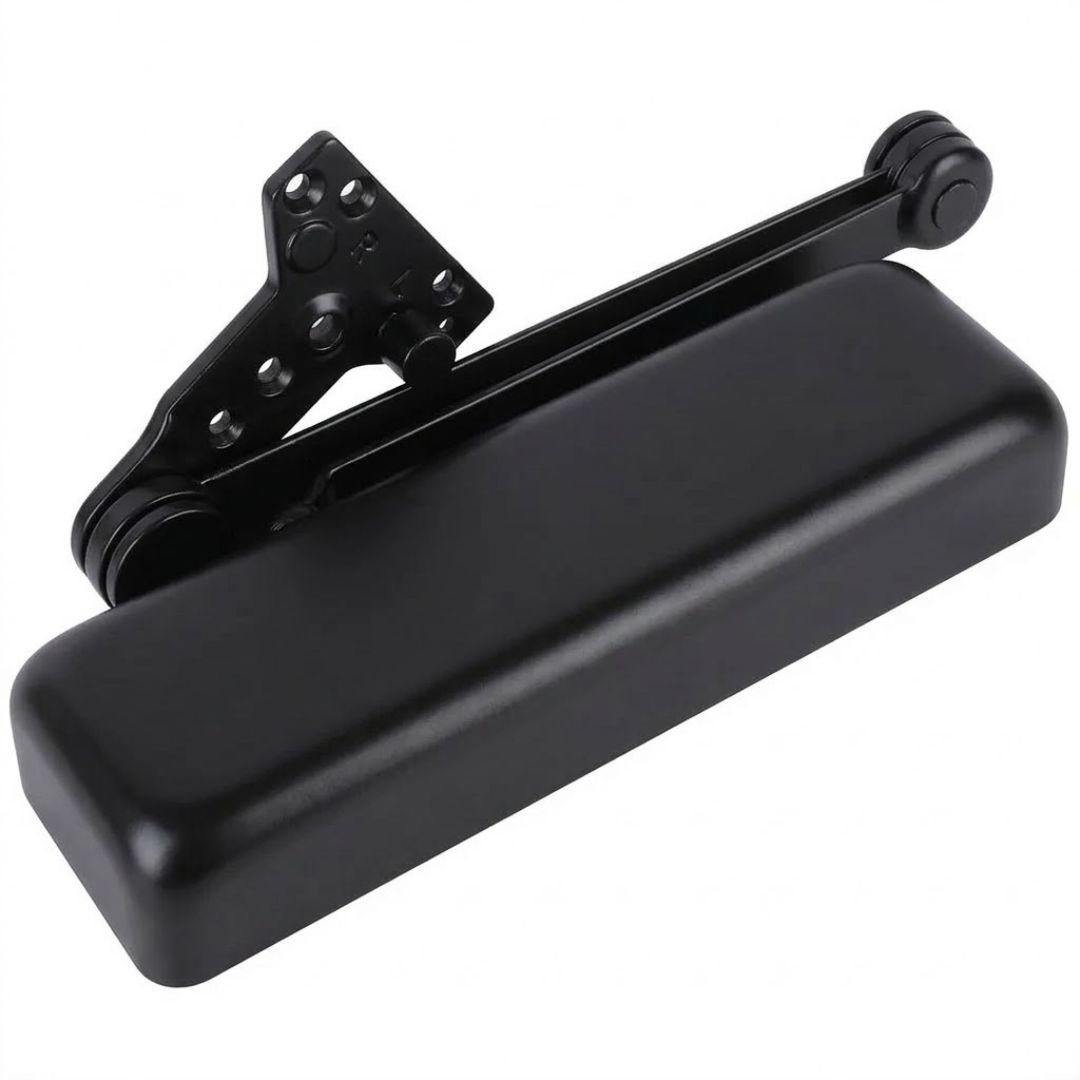

693 - Black Painted
693 - Black Painted

Handing *

About this item

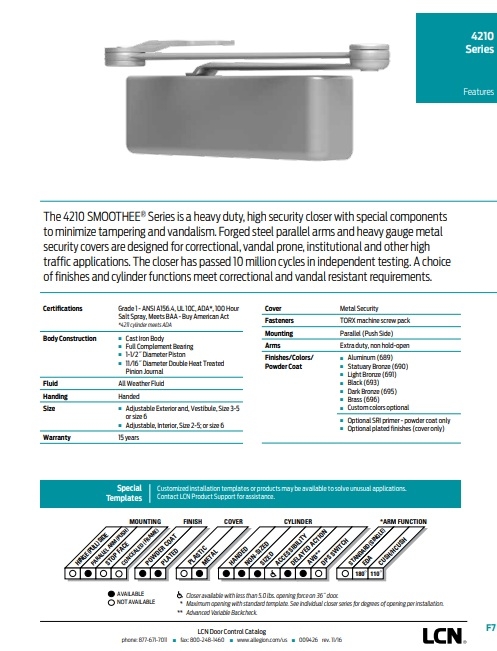

The 4210 SMOOTHEE® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel parallel arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Resources

LCN 4211 CUSH Heavy Duty, High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop Arm

Size: Adjustable Size 2-5

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Cush-N-Stop arm

Fluid: All Weather Fluid

Cover: Metal Security

Fasteners: TORX machine screw pack

Clearance: For EDA or CUSH is 5-1/2˝ (140 mm)from push side of door

Top Rail: Less than 5-1/8˝ (130 mm) measured from stop, requires PLATE 4210-18. Plate requires 2˝ (51 mm) minimum top rail

Stop Width: 2-3/4˝ (70 mm)recommended.

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4211 meeting ADA requirements

Warranty: 15 years

Model: LCN 4211 CUSH LH AL, 4211 CUSH RH AL

Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm

Product code: 4211-CUSH

In Stock

$653.48

$653.48

Picture of LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm
LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm

Product code: 4211-CUSH

In Stock

$653.48

$653.48

LCN 4211 CUSH High Security Closer - Mounting Parallel (Push Side) - Cush-N-Stop arm

SKU: 4211-CUSH
