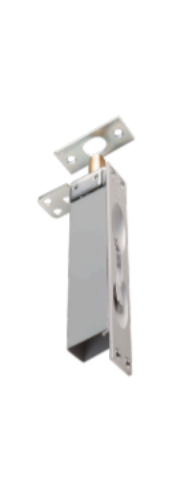

PDQ 93270 Series Manual Flush Bolt For Composite Wood Doors

*PDQ 93270 Series Manual Flush Bolt For Composite Wood Doors * ANSI Type L04261

FEATURES: - Compatible with ANSI/BHMA 156.116W. - Corner reinforcing plate. - 3⁄4" slide bolt throw, 3⁄4" backset. - 12' rod length (center of face to bolt end - retracted). - 1-1⁄ 2" adjustable slide bolt. PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately).

SPECIFICATIONS: BASE MATERIAL: -  Brass and steel. FASTENERS:  - 7 ea. #8 x 3⁄4" FH combo screws, 2 ea. #8-32 x 1/4" FH MS. FACE PLATE: - 1" x 6-3⁄4". STRIKE: - 15⁄16" x 2-1/4". GUIDE: 1" x 2". FINISHES: - 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome. CERTIFICATIONS, LISTINGS, COMPLIANCES: - UL/CUL listed for metal swing doors, 4'x8", 1 1/2 hrs. - Complies with ANSI/BHMA A156.16, Type L04261. -  Meets requirements of Buy American Act.

93270, 93270 PDQ, PDQ 93270, 93270PDQ, PDQ93270, PDQ Flush Bolts, Flush Bolts PDQ
