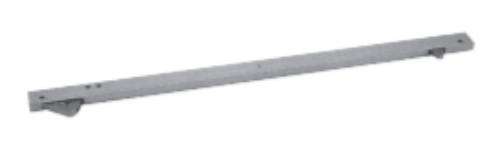

PDQ COORD-60 Door Coordinator - For Door Widths From 55"- 60"

PDQ COORD-60 Door Coordinator - For Door Widths From 55" - 60" - (Includes 1ea FB18 18" Filler Bar)

ANSI TYPE 21A

Coordinator size and length is a function of the active door size. It is recommended the coordinator extend a min of 6" beyond the active door width. EXAMPLES: 1 - Active door = 48", inactive door with astragal = 36" Coordinator size = 48 + 6 = 54" = COORD60. 2 - Active door = 36", inactive door with astragal = 24" Coordinator size = 42 + 6 = 48" = COORD52. 3 - Active door = 36", inactive door with astragal = 36" Coordinator size = 36 + 6 = 42" = COORD42. Features:

- Non-handed.  - Override protection to prevent damage in case of abnormal force on door. - Mechanism and filler bar completely fill width of opening . - Suitable for painting to match door and frame finish. -  Meets requirements of the Buy American Act. - SMARTSENSEcontrol board automatically accepts AC or DC input voltage.

Specifications:

BASE MATERIAL: - Steel. FASTENERS: - 8 Ea. 12-24 x 1-1/4 PH MS. - 6 Ea. #8 x 3⁄4" Combo Screws.  - Strike Plates. COORDINATOR  SIZES:  - COR42: 1-5/8W" x 5⁄8"H x 42L". - COR52: 1-5/8W" x 5/8"H x 52L". - COR60: 1-5/8W" x 5/8"H x 60L". FINISHES: - 600 (USP) primer. CERTIFICATIONS, LISTINGS, COMPLIANCES:  - UL listed for 3 hours for use with a pair of swing doors incorporating an astragal -  Complies with ANSI/BHMA156.3 Type 21A. -  Meets requirements of Buy American Act.
