Product Details

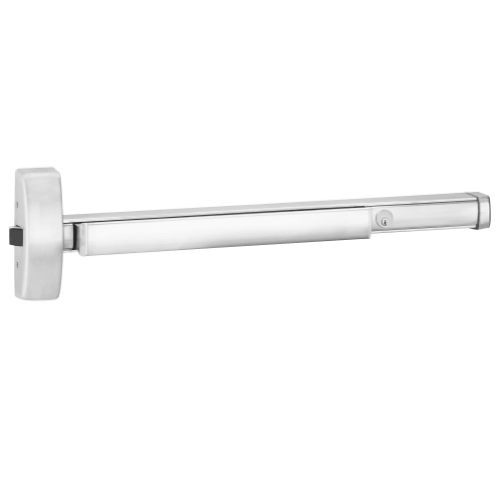

PHI Precision 2101CD Apex Rim Exit Device, Wide Stile, Exit Only, Cover Plate Prep, Cylinder Dogging
Description and Features:
Cylinder Dogging:
Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/ pull mode. To order, specify suffix "CD" (e.g. 2103CD). Requires the use of a 1-1/4 mortise cylinder.
Cylinders are not furnished standard with the device or trim. (BEST 7 pin standard).
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws. .
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications
Dogging:1-1/4" Cylinder dogging.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Stile Width:See Catalog Page # 36
Model:Stanley-Precision 2101cd-605-36, 2101cd-606-36 , 2101cd-612-36 , 2101cd-630-36 , 2101cd-613-36, 2101cd-625-36 2101cd60536, 2101cd606-36 , 2101cd61236 , 2101cd630-36 , 2101cd613-36, 2101cd62536, 2101cd-605-48, 2101cd-606-48 , 2101cd-612-48 , 2101cd-630-48, 2101cd-613-48, 2101cd-625-48, 2101cd60548, 2101cd606-48 , 2101cd61248 , 2101cd630-48 , 2101cd613-48, 2101cd62548, 2101cd-630, 2102-630, 2101cd-630, 2105-630, 2114-630, 2115-630
