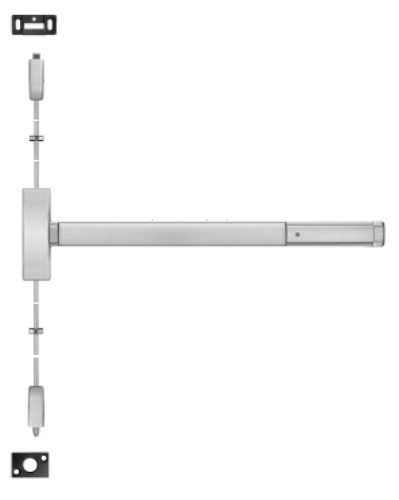

Precision 2203 Apex Vertical Rod Exit Device - Wide Stile

Precision 2203 Apex Vertical Rod Exit Device - Wide Stile

Product Details

Precision 2200 (2203) Apex Vertical Rod Exit Device - Wide Stile

Model:2201,2202,2203,2205,2214,2215 Functions(models) are field selectable. The “03" function is furnished standard

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width 48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights 12'- For 12’-0" door Heights (Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Model:Stanley-Precision 2203-605-36, 2203-606-36 , 2203-612-36 , 2203-630-36 , 2203-613-36, 2203-625-36 220360536, 2203606-36 , 220361236 , 2203630-36 , 2203613-36, 220362536, 2203-605-48, 2203-606-48 , 2203-612-48 , 2203-630-48, 2203-613-48, 2203-625-48, 220360548, 2203606-48 , 220361248 , 2203630-48 , 2203613-48, 220362548, 2201-630, 2202-630, 2203-630, 2205-630, 2214-630, 2215-630

Precision 2203 Apex Vertical Rod Exit Device - Wide Stile

Name: Precision 2203 Apex Vertical Rod Exit Device - Wide Stile
SKU: 2203
Price: 1724.25 USD
Availability: InStock

SKU: 2203

In Stock

Chat

$1,724.25

$3,025.00

You saved $1,300.75

About this item

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.

Resources

No resources added to this product.

Precision 2200 (2203) Apex Vertical Rod Exit Device - Wide Stile

Model:2201,2202,2203,2205,2214,2215 Functions(models) are field selectable. The “03" function is furnished standard

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width 48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Precision 2203 Apex Vertical Rod Exit Device - Wide Stile

Product code: 2203

In Stock

$3,025.00

$1,724.25

Precision 2203 Apex Vertical Rod Exit Device - Wide Stile

Product code: 2203

In Stock

$3,025.00

$1,724.25

PHI Precision 2103 Apex Rim Exit Device - Wide Stile

Product code: W561BD

In Stock

$2,451.00

$1,397.07

PHI Precision FL2103 Fire Rated Apex Rim Exit Device - Wide Stile

Product code: W561BD

In Stock

$2,712.00

$1,545.84

PHI Precision DEFL2103 Fire Rated Apex Rim Exit Device With Delayed Egress

Product code: W561BD

In Stock

$5,153.00

$2,937.21

Precision 2203 Apex Vertical Rod Exit Device - Wide Stile

Product code: W561BD

In Stock

$3,025.00

$1,724.25

Precision FL2203 Apex Fire Rated Vertical Rod Exit Device - Wide Stile, Key Retracts Latchbolt

Product code: W561BD

In Stock

$3,286.00

$1,873.02

PHI Precision 2303 Apex Mortise Exit Device - Wide Stile, Key Retracts Latchbolt

Product code: W561BD

In Stock

$3,341.00

$1,904.37

Precision 2308-630 (2300) Apex Mortise Exit Device - Wide Stile - Satin Stainless Steel

Product code: W561BD

In Stock

$3,341.00

$1,904.37

Precision FL2303 Apex Fire Rated Mortise Exit Device, Key Retracts Latchbolt

Product code: W561BD

In Stock

$3,234.00

$1,843.38

PHI Precision 2103CD Apex Rim Exit Device, Cylinder Dogging - Wide Stile

Product code: W561BD

In Stock

$2,583.00

$1,472.31

Precision 2203CD Apex Vertical Rod Exit Device With Cylinder Dogging - Wide Stile

Product code: W561BD

In Stock

$3,157.00

$1,799.49
