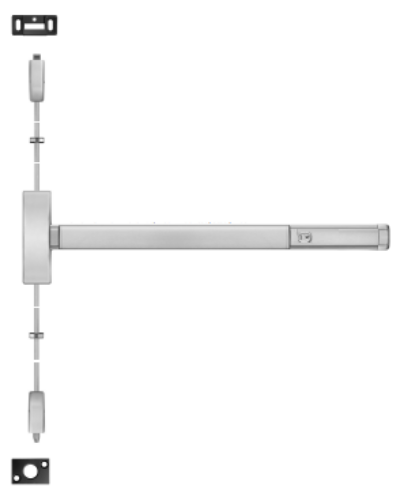

Precision 2203CD Apex Vertical Rod Exit Device With Cylinder Dogging - Wide Stile

Precision 2203CD Apex Vertical Rod Exit Device With Cylinder Dogging - Wide Stile

Model:2201,2202,2203,2205,2214,2215 Functions(models) are field selectable. The “03" function is furnished standard

Description and Features:

Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4 mortise cylinde

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights 12'- For 12’-0" door Heights (Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Model:Stanley-Precision 2203CD-605-36, 2203CD-606-36 , 2203CD-612-36 , 2203CD-630-36 , 2203CD-613-36, 2203CD-625-36  2203CD60536, 2203CD606-36 , 2203CD61236 , 2203CD630-36 , 2203CD613-36, 2203CD62536, 2203CD-605-48, 2203CD-606-48 , 2203CD-612-48 , 2203CD-630-48, 2203CD-613-48, 2203CD-625-48, 2203CD60548, 2203CD606-48 , 2203CD61248 , 2203CD630-48 , 2203CD613-48, 2203CD62548, 2201CD-630, 2202CD-630, 2203CD-630, 2205CD-630, 2214cD-630, 2215cd-630
