PHI Precision 2103CD Apex Rim Exit Device, Cylinder Dogging - Wide Stile

PHI Precision 2103CD Apex Rim Exit Device, Cylinder Dogging - Wide Stile

Product Details

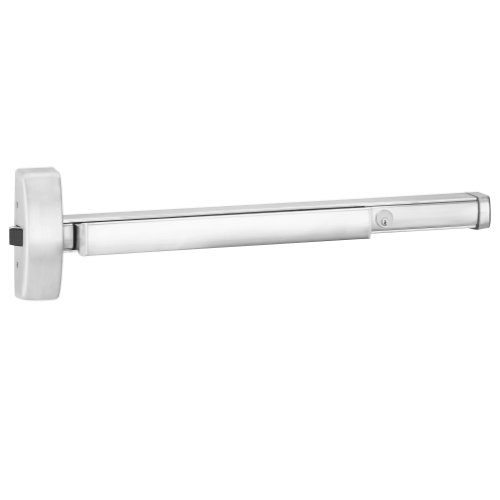

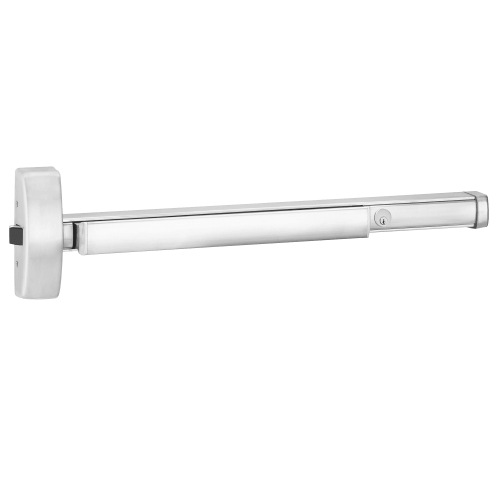

Precision 2103CD Apex Rim Exit Device With Cylinder Dogging - Wide Stile

Model:2101,2102,2103,2105,2114,2115 Functions(models) are field selectable. The “03" function is furnished standard

Description and Features:

Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4 mortise cylinde

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes: 36" - 2'-7" to 3' Door Width 48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications

Dogging:1/4" turn hex key dogging standard.

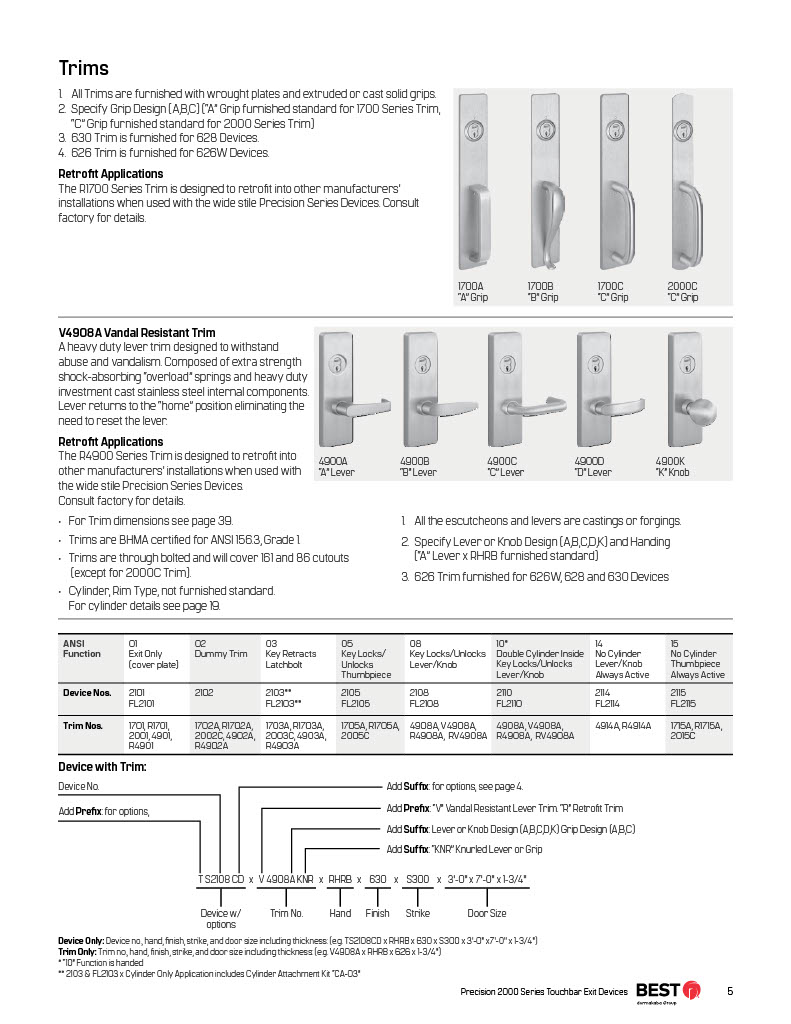

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

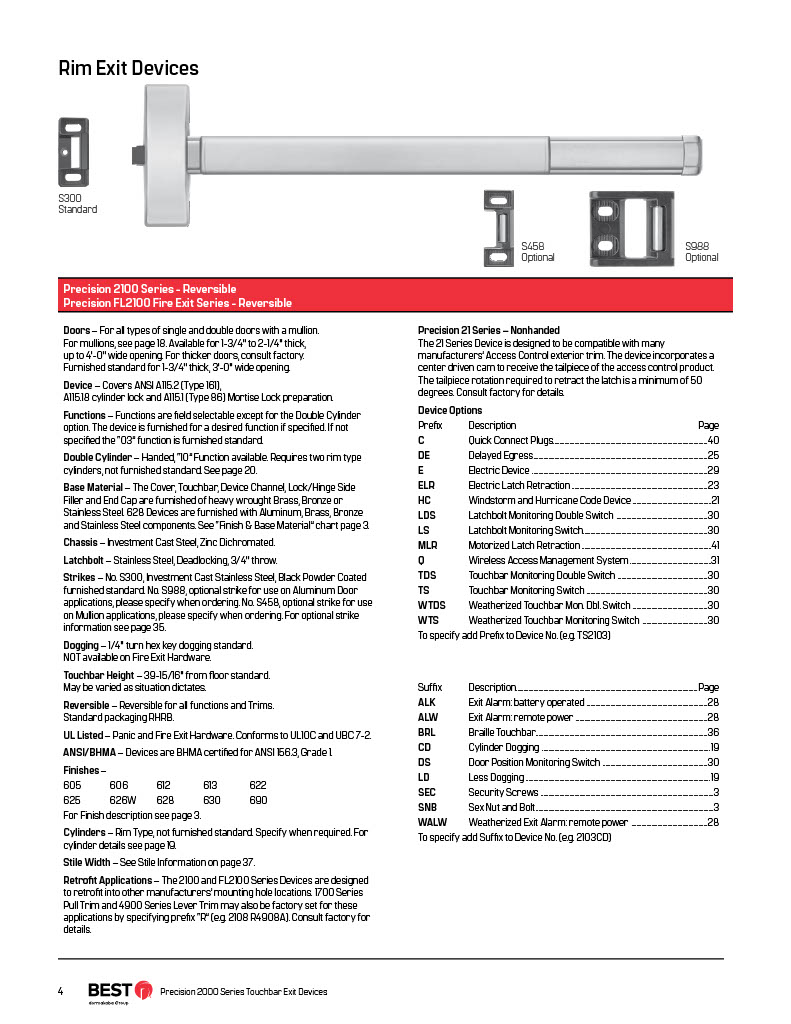

Stile Width:See Catalog Page # 36

Model:Stanley-Precision CD2103-605-36, CD2103-606-36 , CD2103-612-36 , CD2103-630-36 , CD2103-613-36, CD2103-625-36 CD210360536, CD2103606-36 , CD210361236 , CD2103630-36 , CD2103613-36, CD210362536, CD2103-605-48, CD2103-606-48 , CD2103-612-48 , CD2103-630-48, CD2103-613-48, CD2103-625-48, CD210360548, CD2103606-48 , CD210361248 , CD2103630-48 , CD2103613-48, CD210362548, CD2101-630, CD2102-630, CD2103-630, CD2105-630, CD2114-630, CD2115-630

PHI Precision 2103CD Apex Rim Exit Device, Cylinder Dogging - Wide Stile

Name: PHI Precision 2103CD Apex Rim Exit Device, Cylinder Dogging - Wide Stile
SKU: 2103CD
Price: 1472.31 USD
Availability: InStock

SKU: 2103CD

In Stock

Chat

$1,472.31

$2,583.00

You saved $1,110.69

About this item

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.
