Product Details

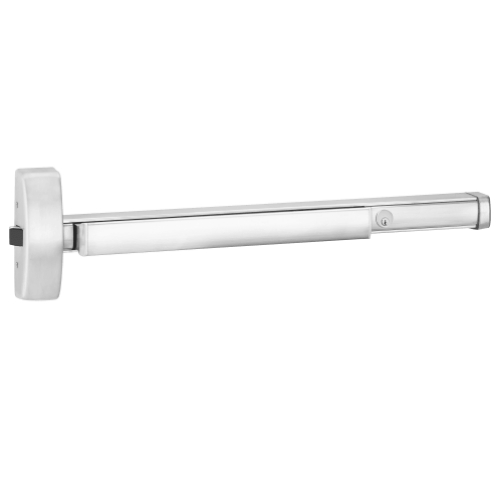

PHI Precision 2102 Exit Device, Exit Only, Dummy Trim Prep, Cylinder Dogging
Description and Features:
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws.
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications
Dogging:1-1/4" Cylinder dogging.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Stile Width:See Catalog Page # 36
Model:Stanley-Precision 2102CD-605-36, 2102CD-606-36 , 2102CD-612-36 , 2102CD-630-36 , 2102CD-613-36, 2102CD-625-36 2102CD60536, 2102CD606-36 , 2102CD61236 , 2102CD630-36 , 2102CD613-36, 2102CD62536, 2102CD-605-48, 2102CD-606-48 , 2102CD-612-48 , 2102CD-630-48, 2102CD-613-48, 2102CD-625-48, 2102CD60548, 2102CD606-48 , 2102CD61248 , 2102CD630-48 , 2102CD613-48, 2102CD62548, 2102CD-630, 2102CD-630, 2102CD-630, 2105-630, 2114-630, 2115-630
