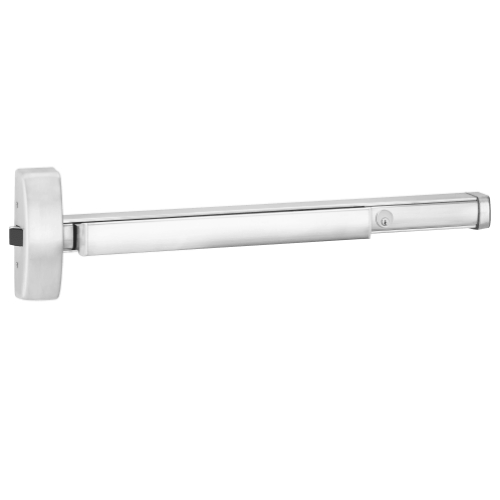

PHI Precision 2105CD Rim Wide Exit Device, Key Controls Thumb Piece, Cylinder Dogging
Product Details
PHI Precision 2105CD Rim Wide Exit Device, Key Controls Thumb Piece
Description and Features:
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws. .
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications
Dogging:1-1/4" Cylinder dogging.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Stile Width:See Catalog Page # 36
Model: Stanley-Precision 2105CD-605-36, 2105CD-606-36 , 2105CD-612-36 , 2105CD-630-36 , 2105CD-613-36, 2105CD-625-36 2105CD60536, 2105CD606-36 , 2105CD61236 , 2105CD630-36 , 2105CD613-36, 2105CD62536, 2105CD-605-48, 2105CD-606-48 , 2105CD-612-48 , 2105CD-630-48, 2105CD-613-48, 2105CD-625-48, 2105CD60548, 2105CD606-48 , 2105CD61248 , 2105CD630-48 , 2105CD613-48, 2105CD62548, 2105CD-630, 2102-630, 2105CD-630, 2105CD-630, 2114-630, 2115-630
