PHI Precision 2108 V4908D Rim Exit Device, Key Controls Lever/Knob, With V4908D Trim

Product Details

PHI Precision 2108*V4908D *Rim Exit Device, Key Controls Lever/Knob, With V4908D Trim

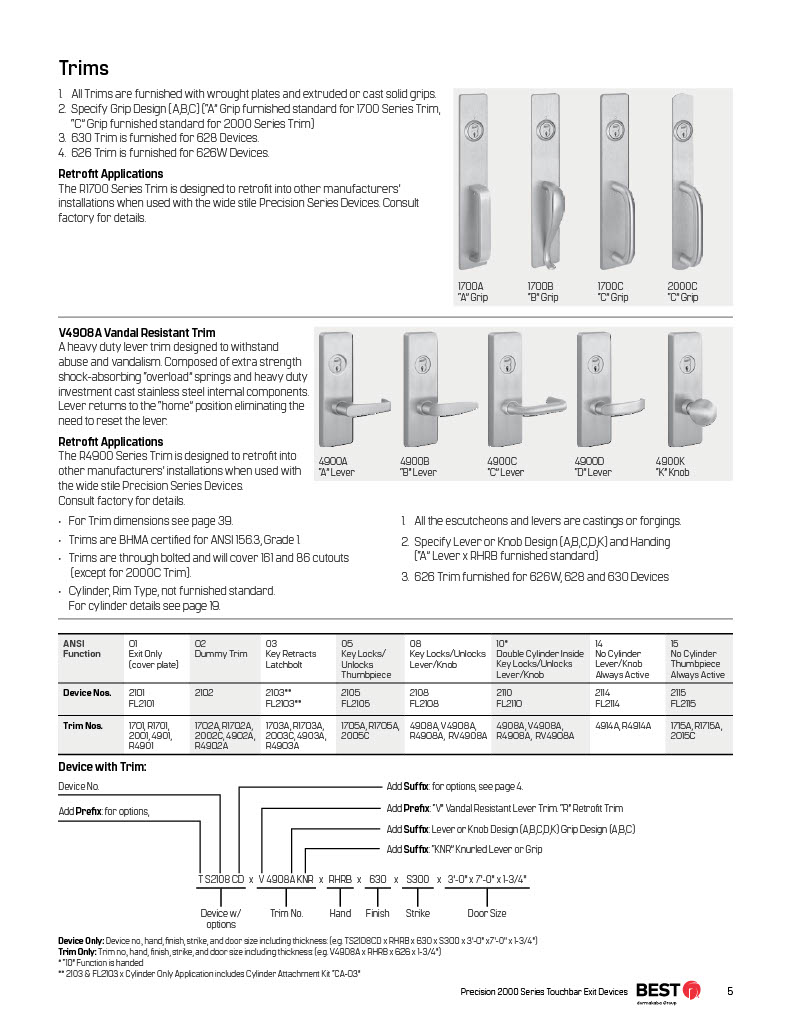

V4908A TRIM - Apex and Olympian Series Wide Stile Trim, Key Controls Lever, A Lever Design, Vandal Resistant

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

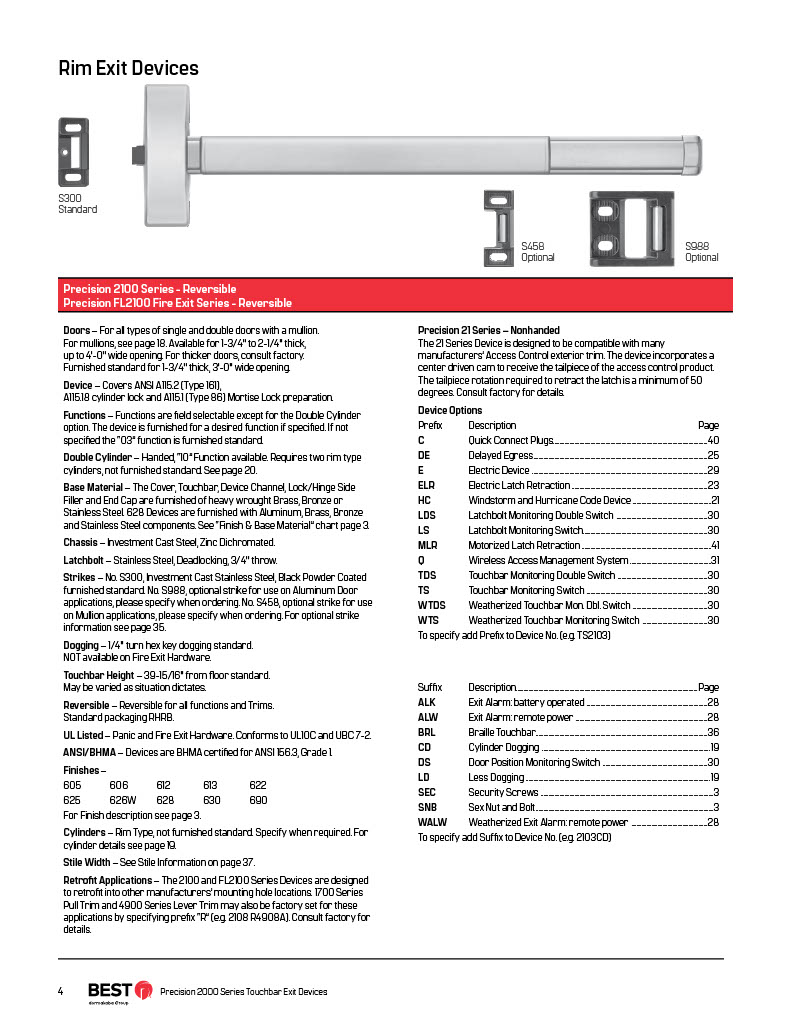

Stile Width:See Catalog Page # 36

 Model: Stanley-Precision 2108V4908D-605-36, 2108V4908D-606-36 , 2108V4908D-612-36 , 2108V4908D-630-36 , 2108V4908D-613-36, 2108V4908D-625-36  2108V4908D60536, 2108V4908D606-36 , 2108V4908D61236 , 2108V4908D630-36 , 2108V4908D613-36, 2108V4908D62536, 2108V4908D-605-48, 2108V4908D-606-48 , 2108V4908D-612-48 , 2108V4908D-630-48, 2108V4908D-613-48, 2108V4908D-625-48, 2108V4908D60548, 2108V4908D606-48 , 2108V4908D61248 , 2108V4908D630-48 , 2108V4908D613-48, 2108V4908D62548, 2108V4908D-630, 2102-630, 2108V4908D-630, 2108V4908D-630, 2114-630, 2115-630

PHI Precision 2108 V4908D Rim Exit Device, Key Controls Lever/Knob, With V4908D Trim

SKU: 2108V4908D

In Stock

Handing *

Size *

Finish *

630 - Satin Stainless - Steel
630 - Satin Stainless - Steel

$1,944.84

$3,412.00

You saved $1,467.16

About this item

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.

Resources

No resources added to this product.

PHI Precision 2108*V4908D *Rim Exit Device, Key Controls Lever/Knob, With V4908D Trim

V4908A TRIM - Apex and Olympian Series Wide Stile Trim, Key Controls Lever, A Lever Design, Vandal Resistant

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

 Model: Stanley-Precision 2108V4908D-605-36, 2108V4908D-606-36 , 2108V4908D-612-36 , 2108V4908D-630-36 , 2108V4908D-613-36, 2108V4908D-625-36  2108V4908D60536, 2108V4908D606-36 , 2108V4908D61236 , 2108V4908D630-36 , 2108V4908D613-36, 2108V4908D62536, 2108V4908D-605-48, 2108V4908D-606-48 , 2108V4908D-612-48 , 2108V4908D-630-48, 2108V4908D-613-48, 2108V4908D-625-48, 2108V4908D60548, 2108V4908D606-48 , 2108V4908D61248 , 2108V4908D630-48 , 2108V4908D613-48, 2108V4908D62548, 2108V4908D-630, 2102-630, 2108V4908D-630, 2108V4908D-630, 2114-630, 2115-630

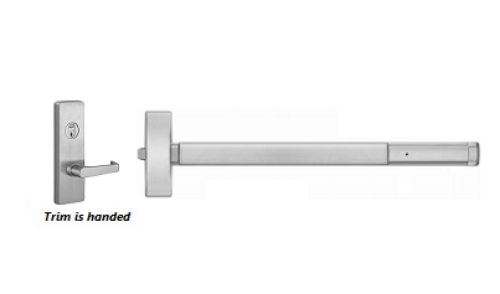

2108Trim2
PHI Precision 2108 V4908D Rim Exit Device, Key Controls Lever/Knob, With V4908D Trim

Product code: 2108V4908D

In Stock

$3,412.00

$1,944.84

2108Trim2
PHI Precision 2108 V4908D Rim Exit Device, Key Controls Lever/Knob, With V4908D Trim

Product code: 2108V4908D

In Stock

$3,412.00

$1,944.84
