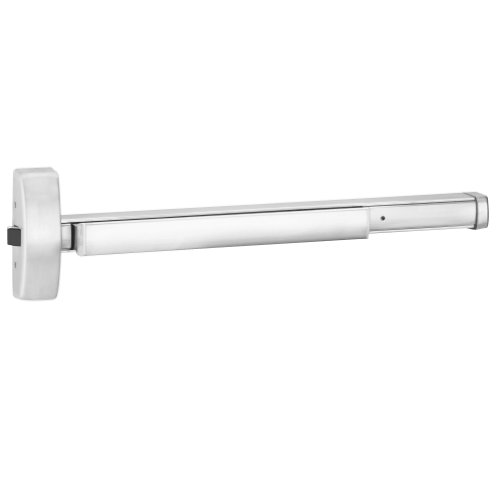

PHI Precision 2114 Rim Exit Device, Lever/Knob Always Active

PHI Precision 2114 Rim Exit Device, Lever/Knob Always Active

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

 Model: Stanley-Precision 2114-605-36, 2114-606-36 , 2114-612-36 , 2114-630-36 , 2114-613-36, 2114-625-36  211460536, 2114606-36 , 211461236 , 2114630-36 , 2114613-36, 211462536, 2114-605-48, 2114-606-48 , 2114-612-48 , 2114-630-48, 2114-613-48, 2114-625-48, 211460548, 2114606-48 , 211461248 , 2114630-48 , 2114613-48, 211462548, 2114-630, 2102-630, 2114-630, 2114-630, 2114-630, 2115-630
