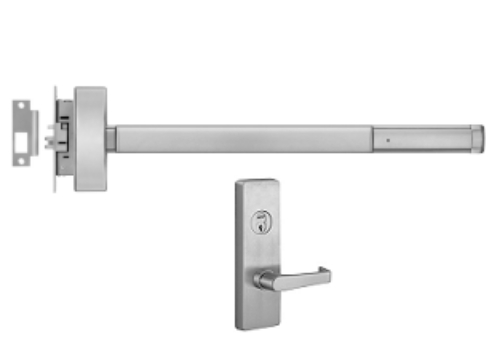

PHI Precision 2308-M4908A Apex Mortise Exit Device - Wide Stile, Key Controls Lever/Knob, With 4908A Trim
Product Details
PHI Precision 2308-4908A Apex Mortise Exit Device - Wide Stile, Key Controls Lever/Knob, With 4908A Trim
Description and Features:
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Device:Covers ANSI A115.1 (Type 86) Mortise Lock preparation
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Dogging:1/4" turn hex key dogging standard.
UL Listed: Panic and Fire Exit Hardware.
ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.
Fits doors machined per ANSI A115.1 (Type 86) Mortise Lock preparation.
Backset:2-3/4".
Case:Wrought Steel, Zinc Dichromate finish.
Lock front plate:8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw, anti-friction.
Guardbolt:Stainless Steel, sliding type.
Strikes:No. S982, handed curved lip strike furnished standard
Stile Width:See Catalog Page # 36
Model: Stanley-Precision 2308- M4908A-LHR-630-36, 2308- M4908A-LHR-606-48 , 2308- M4908A-LHR-630-36 , 2308- M4908A-LHR-630-36, 2308- M4908A-RHR-630-36, 2308- M4908A-RHR-606-48 , 2308- M4908A-RHR-630-36 , 2308- M4908A-RHR-630-36 2308 M4908A LHR 630 36, 2308 M4908A LHR 606 48 , 2308 M4908A LHR 630 36 , 2308 M4908A LHR 630 36, 2308 M4908A RHR 630 36, 2308 M4908A RHR 606 48 , 2308 M4908A RHR 630 36 , 2308 M4908A RHR 630 36
