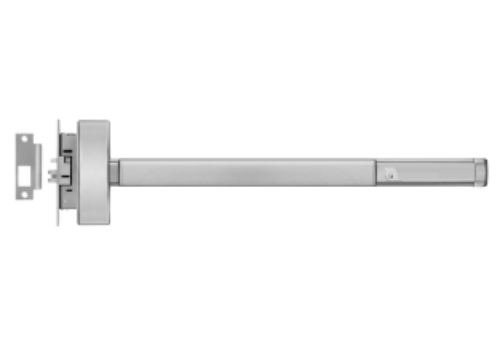

PHI Precision 2314CD Apex Mortise Exit Device - Wide Stile, Lever/Knob Always Active, Cylinder Dogging

PHI Precision 2314CD Apex Mortise Exit Device - Wide Stile, Lever/Knob Always Active, Cylinder Dogging

Description and Features:

Door Sizes: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.1 (Type 86) Mortise Lock preparation

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Dogging:1/4" turn hex key dogging standard.

UL Listed: Panic and Fire Exit Hardware.

ANSI/BHMA:  Devices are BHMA certified for ANSI 156.3, Grade 1.

Fits doors machined per ANSI A115.1 (Type 86) Mortise Lock preparation.

Backset:2-3/4".

Case:Wrought Steel, Zinc Dichromate finish.

Lock front plate:8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw, anti-friction.

Guardbolt:Stainless Steel, sliding type.

Strikes:No. S982, handed curved lip strike furnished standard

Stile Width:See Catalog Page # 36

Model: Stanley-Precision 2314-LHR-630-36, 2314-LHR-606-48 , 2314-LHR-630-36 , 2314-LHR-630-36, 2314-RHR-630-36, 2314-RHR-606-48 , 2314-RHR-630-36 , 2314-RHR-630-36
