PHI Precision FL2105 Rim Exit Device, Key Controls Thumb Piece, Fire Rated

PHI Precision FL2105 Rim Exit Device, Key Controls Thumb Piece, Fire Rated

Product Details

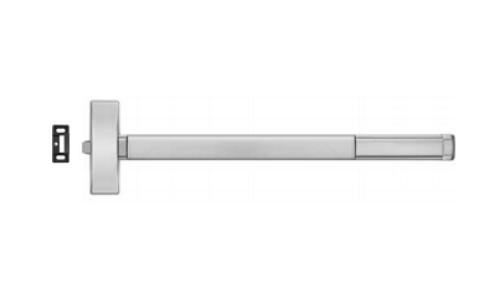

PHI Precision FL2105 Rim Exit Device, Key Controls Thumb Piece, Fire Rated

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws.

Door Sizes: 36" - 2'-7" to 3' Door Width 48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

Model:Stanley-Precision FL-2102-630-36, FL-2102-630-48, FL2102-630-36, FL2102-630-48, FL2102630-36, FL2102630-48, FL210263026, FL210263048, FL 2102 630 36, FL 2102 630 48, FL2102-630, FL2102-630, FL2102-630, FL2105-630, FL2114-630 ,FL2115-630, FL-2102, FL2115-630, FL2115-625, FL2115-612, FL2115606, FL2115605, FL2115613,

PHI Precision FL2105 Rim Exit Device, Key Controls Thumb Piece, Fire Rated

Name: PHI Precision FL2105 Rim Exit Device, Key Controls Thumb Piece, Fire Rated
SKU: FL-2105
Price: 1708.56 USD
Availability: InStock

SKU: FL-2105

In Stock

Chat

$1,708.56

About this item

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.

Resources

No resources added to this product.
