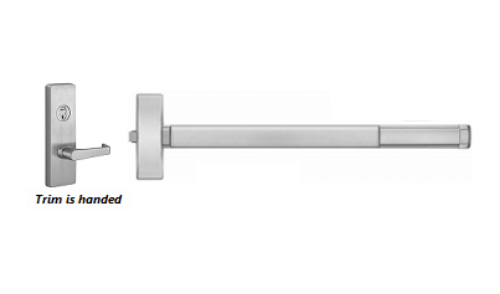

PHI Precision FL2108-V908D Rim Exit Device, Key Controls Lever/Knob, Fire Rated, With V908D Trim
Product Details
Precision FL2108-V4908D Rim Exit Device, Key Controls Lever/Knob, Fire Rated, With V4908D Trim
Description and Features:
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws.
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Stile Width:See Catalog Page # 36
Model:Model: Stanley-Precision FL-2108-630-36, FL-2108-630-48, FL2108-630-36, FL2108-630-48, FL2108630-36, FL2108630-48, FL210863086, FL210863048, FL 2108 630 36, FL 2108 630 48, FL2108-630, FL2108-630, FL2108-630, FL2105-630, FL2104-630 ,FL2105-630, FL-2108, FL2105-630, FL2105-625, FL2105-612, FL2105606, FL2105605, FL2105613
