Product Details

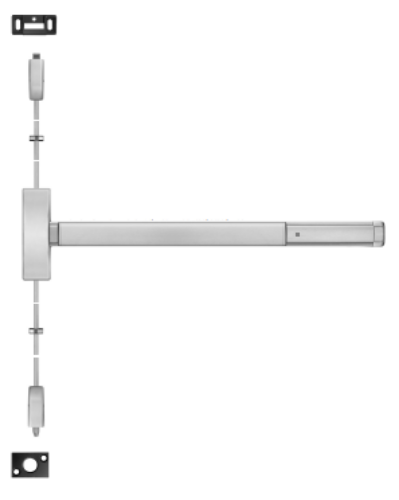

Precision 2205 Apex Vertical Rod Exit Device - Key Controls Thumb Piece - Wide Stile
Description and Features:
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws. .
Door Sizes:
Width:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Height:7'
- For 7’-0" doors
8'- For 8’-0" door Heights
10'- For 10’-0" door Heights
12'- For 12’-0" door Heights
(Note: 12’-0" top rod is Not available in “FL" fire rated option.)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.
Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.
Dogging:1/4" turn hex key dogging standard.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Model: Stanley-Precision 2205-605-36, 2205-606-36 , 2205-612-36 , 2205-630-36 , 2205-613-36, 2205-625-36 220560536, 2205606-36 , 220561236 , 2205630-36 , 2205613-36, 220562536, 2205-605-48, 2205-606-48 , 2205-612-48 , 2205-630-48, 2205-613-48, 2205-625-48, 220560548, 2205606-48 , 220561248 , 2205630-48 , 2205613-48, 220562548, 2205-630, 2202-630, 2205-630, 2205-630, 2214-630, 2215-630
