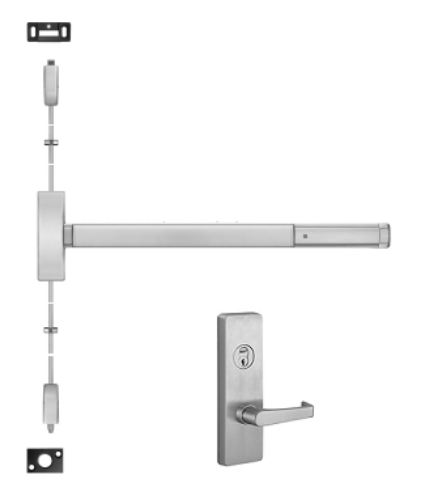

Precision 2208-4908A Apex Vertical Rod Exit Device - Key Controls Lever/Knob, with 4908A Trim

Precision 2208-4908A Apex Vertical Rod Exit Device - Key Controls Lever/Knob, with 4908A Trim - Wide Stile

Description and Features:

Apex and Olympian Series Wide Stile Trim, Key Locks/UnLocks Lever, Less Cylinder, A Lever Design.

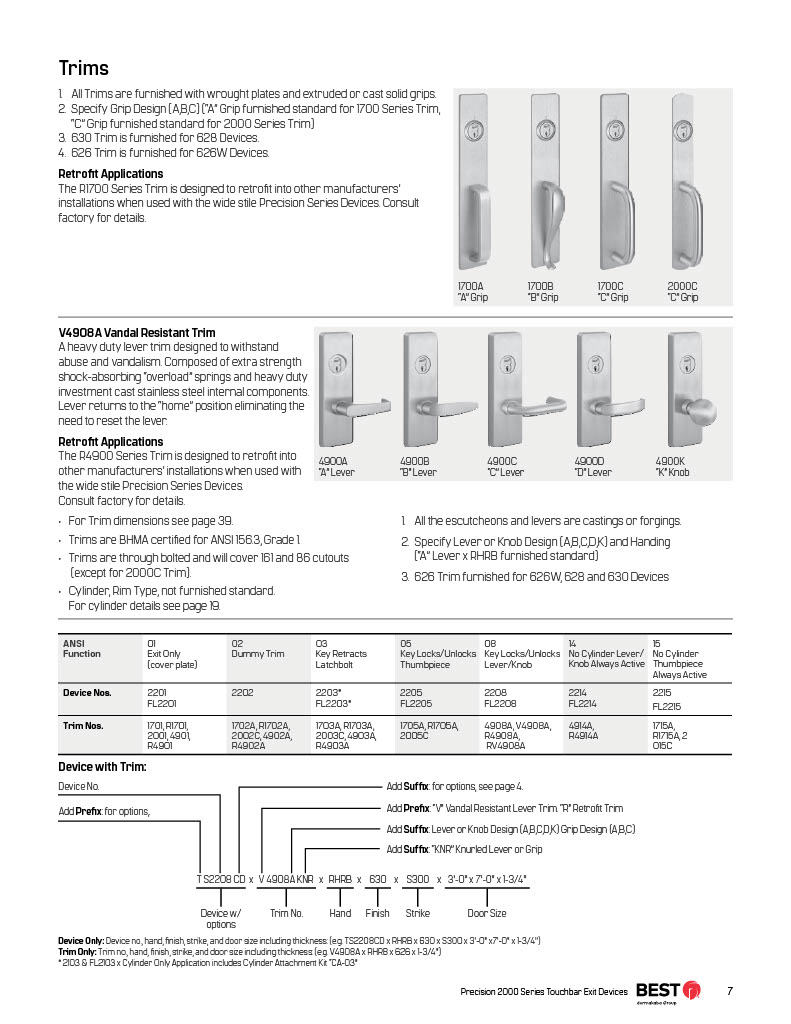

V4908A Trim: Vandal Resistant Trim A heavy duty lever trim designed to withstand abuse and vandalism. Composed of extra strength shock-absorbing "overload"springs and heavy duty investment cast stainless steel internal components. Lever returns to the "home" position eliminating the need to reset the lever.The trim is non-handed.Fasteners:

Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights 12'- For 12’-0" door Heights (Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Model: Stanley-Precision 2208-4908A-605-36, 2208-4908A-606-36 , 2208-4908A-612-36 , 2208-4908A-630-36 , 2208-4908A-613-36, 2208-4908A-625-36  2208-4908A60536, 2208-4908A606-36 , 2208-4908A61236 , 2208-4908A630-36 , 2208-4908A613-36, 2208-4908A62536, 2208-4908A-605-48, 2208-4908A-606-48 , 2208-4908A-612-48 , 2208-4908A-630-48, 2208-4908A-613-48, 2208-4908A-625-48, 2208-4908A60548, 2208-4908A606-48 , 2208-4908A61248 , 2208-4908A630-48 , 2208-4908A613-48, 2208-4908A62548, 2208-4908A-630, 2202-630, 2208-4908A-630, 2208-4908A-630, 2214-630, 2215-630
