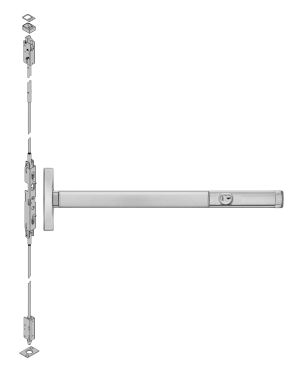

Precision 2602CD Apex Concealed Vertical Rod Exit Device, Exit Only, Dummy Trim Prep, Cylinder Dogging - Narrow Stile

Product Details

Precision 2602CD Apex Concealed Vertical Rod Exit Device, Exit Only, Cover Plate Prep, Cylinder Dogging - Narrow Stile

Model:2601,2602,2603,2605,2614,2615 Functions(models) are field selectable. The “03" function is furnished standard

Description and Features:

Doors:For all types of metal single and double door applications

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights

Base Material:Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top StrikeNo. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

UL Listed:  Panic and Fire Exit Hardware.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

Model:Stanley-Precision  2602-630-36,  2602-630-48 ,  2602-628-36 ,  2602-628-48, 2605-630-36, 2605-630-48 , 2605-628-36 , 2605-628-48, 2602-630-36,  2602-630-48 ,  2602-628-36 , 2602-628-48, 2614-630-36, 2615-630-48 , 2614-628-36 , 2615-628-48,  2602 630 36,  2602 630 48 ,  2602 628 36 ,  2602 628 48,  260263036,  260263048 ,  260262836 ,  260262848

Precision 2602CD Apex Concealed Vertical Rod Exit Device, Exit Only, Dummy Trim Prep, Cylinder Dogging - Narrow Stile

SKU: 2602CD

In Stock

Finish *

Width *

Height *

Electrical Options *

Rod *

$2,172.60

$3,621.00

You saved $1,448.40

About this item

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.

Resources

No resources added to this product.

Precision 2602CD Apex Concealed Vertical Rod Exit Device, Exit Only, Cover Plate Prep, Cylinder Dogging - Narrow Stile

Model:2601,2602,2603,2605,2614,2615 Functions(models) are field selectable. The “03" function is furnished standard

Description and Features:

Doors:For all types of metal single and double door applications

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights

Base Material:Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top StrikeNo. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

UL Listed:  Panic and Fire Exit Hardware.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

Model:Stanley-Precision  2602-630-36,  2602-630-48 ,  2602-628-36 ,  2602-628-48, 2605-630-36, 2605-630-48 , 2605-628-36 , 2605-628-48, 2602-630-36,  2602-630-48 ,  2602-628-36 , 2602-628-48, 2614-630-36, 2615-630-48 , 2614-628-36 , 2615-628-48,  2602 630 36,  2602 630 48 ,  2602 628 36 ,  2602 628 48,  260263036,  260263048 ,  260262836 ,  260262848

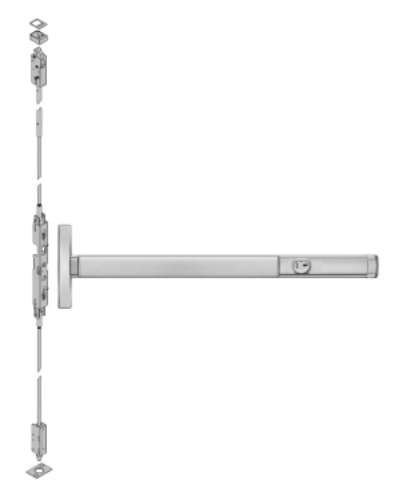

2600CD
