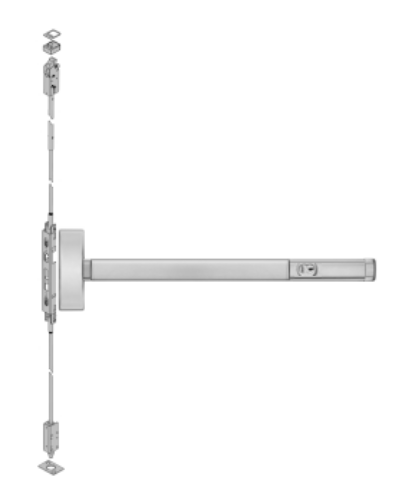

Precision 2805CD Apex CVR Exit Device, Key Locks/Unlocks Thumbpiece, Wide Stile, Cylinder Dogging

Precision 2805CD Apex Concealed Vertical Rod Exit Device, Key Locks/Unlocks Thumbpiece, Wide Stile, Cylinder Dogging

Description and Features:

Doors:  For all types of metal single and double door applications

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Lock Stile Assembly - Investment Cast Steel, Zinc Dich-romated.

Vertical Rods: Steel, plated. Top Rod is adjustable from 6’-8" to 8’-0" or from 8’-1" to 10’-0". Additional adjustments are available through the lock front filler.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Center Chassis:Steel plated, heavy wrought Steel Assembly with lock in place Top and Bottom Latch Adjustors. Adjustment accessible through the door after installation.

Top StrikeNo. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

Reversible:Reversible for all functions and trims. Standard packaging RHRB.

UL Listed:  Panic and Fire Exit Hardware.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

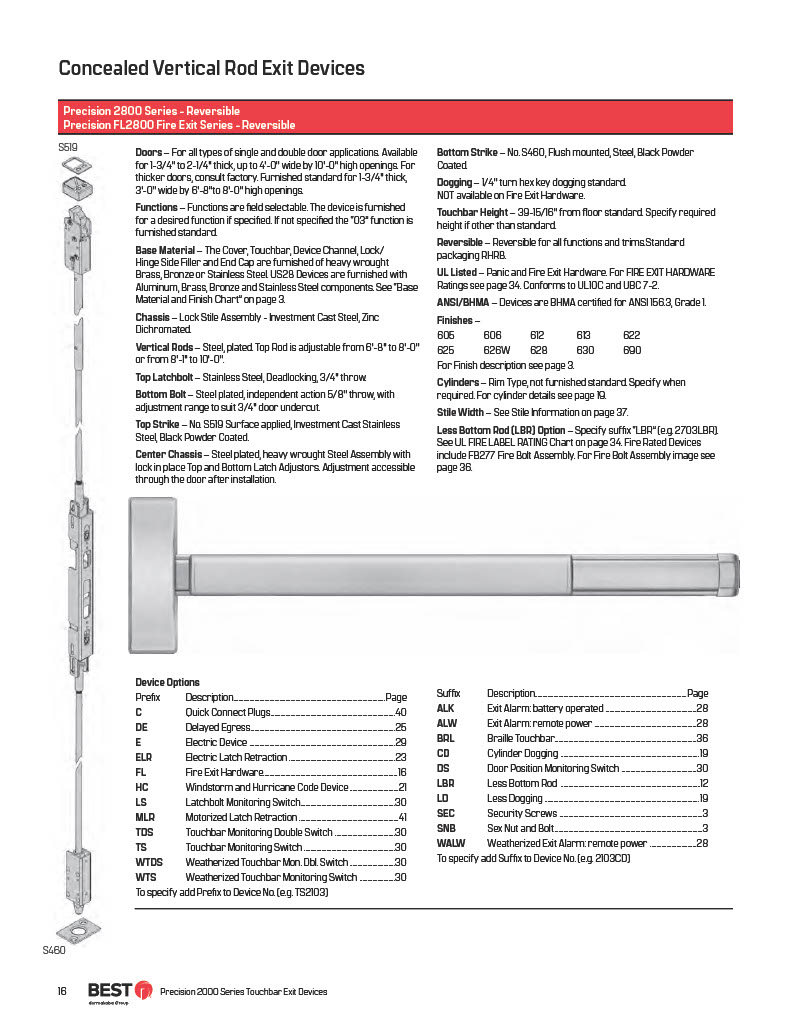

Stile Width:See Catalog Page # 36

Electrical Options:

MLR - Motorized Latch Retraction: PRECISION Motorized Latch Retraction (MLR) exit devices feature the top-quality materials and robust engineering you expect from PRECISION, while reducing noise, lowering current requirements, and allowing for longer wire runs compared to power hungry solenoiddriven products. Perfect for use in applications that require more flexibility and quieter performance, PRECISION MLR engineering integrates easily with existing security frameworks.

DE - Delayed Egress: The Delayed Egress (DE) Exit Device provides a controlled egress for openings which require Panic or Fire Exit Hardwar for safe egress. It is a self contained exit device, which when armed will deny exit to unauthorized personnel for 15 or 30 seconds, while simultaneously sounding a local or remote audible alarm. The Remote Monitoring feature will alert the security personnel that an attempt is being made to exit the opening. After the 15 (or 30) second delay of egress period the device will function as a standard exit device for safe egress.

ELR - Electric Latch Retraction: The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

TS - Touchbar Monitoring: TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

Model:Stanley-Precision 2803CD-630-36, 2803CD-630-48 , 2803CD-628-36 , 2803CD-628-48, 2805CD-630-36, 2805CD-630-48 , 2805CD-628-36 , 2805CD-628-48, 2802CD-630-36, 2801CD-630-48 , 2801CD-628-36 , 2802CD-628-48, 2814CD-630-36, 2815CD-630-48 , 2814CD-628-36 , 2815CD-628-48CD 628 36 , 2803CD 628 48, 2805CD 630 36, 2805CD 630 48 , 2805CD 628 36 , 2805CD 628 48, 2802CD 630 36, 2801CD 630 48 , 2801CD 628 36 , 2802CD 628 48, 2814CD 630 36, 2815CD 630 48 , 2814CD 628 36 , 2815CD 628 48
