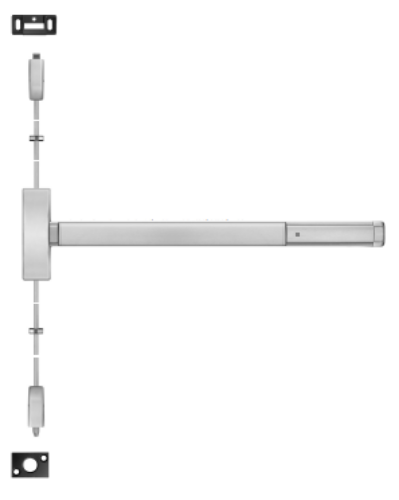

Precision ELR2201 / 2202 / 2203 / 2205 / 2208 / 2214 / 2215 Apex SVR Exit Device - Wide Stile

Precision ELR2201/2202/2203/2205/2208/2214/2215 Apex Surface Vertical Rod Exit Device  - Wide Stile

*ELR - Electric Latch Retraction: *The ELR option provides remote Latch Retraction of exitdevices. Continuous duty solenoids retract the Latchbolt(s)for momentary unlatching or continuously for dogging. TheELR feature can be interfaced with automatic door operators,card readers, push buttons, toggle/key switches, and firealarm systems.

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights 12'- For 12’-0" door Heights (Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Model:Model: Stanley-Precision 2201-605-36, 2201-606-36 , 2201-612-36 , 2201-630-36 , 2201-613-36, 2201-625-36  220160536, 2201606-36 , 220161236 , 2201630-36 , 2201613-36, 220162536, 2201-605-48, 2201-606-48 , 2201-612-48 , 2201-630-48, 2201-613-48, 2201-625-48, 220160548, 2201606-48 , 220161248 , 2201630-48 , 2201613-48, 220162548, 2201-630, 2202-630, 2201-630, 2205-630, 2214-630, 2215-630
