Precision FL2205 Apex Vertical Rod Exit Device - Key Controls Thumb Piece, Fire Rated

Precision FL2205 Apex Vertical Rod Exit Device - Key Controls Thumb Piece, Fire Rated

Product Details

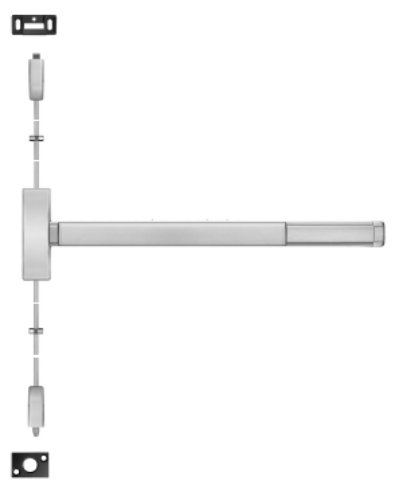

Precision FL2205 Apex Vertical Rod Exit Device - Exit Only, Cover Plate Prep, Wide Stile, Fire Rated, Key Controls Thumb Piece

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width 48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights 12'- For 12’-0" door Heights (Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Model:Stanley-Precision FL2205-605-36, FL2205-606-36 , FL2205-612-36 , FL2205-630-36 , FL2205-613-36, FL2205-625-36 FL220560536, FL2205606-36 , FL220561236 , FL2205630-36 , FL2205613-36, FL220562536, FL2205-605-48, FL2205-606-48 , FL2205-612-48 , FL2205-630-48, FL2205-613-48, FL2205-625-48, FL220560548, FL2205606-48 , FL220561248 , FL2205630-48 , FL2205613-48, FL220562548, FL2205-630, FL2205-630, FL2205-630, FL2205-630, FL2214-630, FL2215-630

Precision FL2205 Apex Vertical Rod Exit Device - Key Controls Thumb Piece, Fire Rated

Name: Precision FL2205 Apex Vertical Rod Exit Device - Key Controls Thumb Piece, Fire Rated
SKU: FL2205
Price: 1873.02 USD
Availability: InStock

SKU: FL2205

In Stock

Chat

$1,873.02

$3,286.00

You saved $1,412.98

About this item

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.

Resources

No resources added to this product.

Precision FL2205 Apex Vertical Rod Exit Device - Exit Only, Cover Plate Prep, Wide Stile, Fire Rated, Key Controls Thumb Piece

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width 48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
