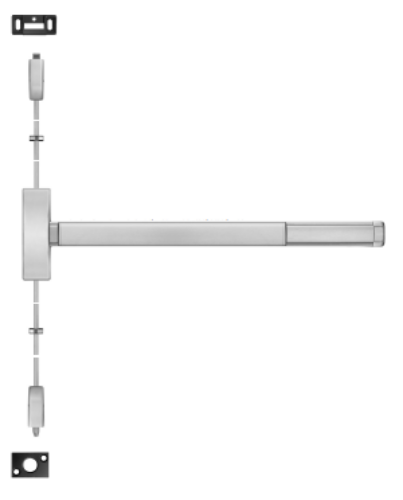

Precision FL2208 Apex Vertical Rod Exit Device - Key Controls Lever/Knob, Fire Rated
Product Details
Precision FL2205 Apex Vertical Rod Exit Device - Exit Only, Cover Plate Prep, Wide Stile, Key Controls Lever/Knob, Fire Rated
Description and Features:
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws. .
Door Sizes:
Width:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Height:7'
- For 7’-0" doors
8'- For 8’-0" door Heights
10'- For 10’-0" door Heights
12'- For 12’-0" door Heights
(Note: 12’-0" top rod is Not available in “FL" fire rated option.)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.
Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.
Dogging:1/4" turn hex key dogging standard.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Model:Stanley-Precision FL2208-608-36, FL2208-606-36 , FL2208-612-36 , FL2208-630-36 , FL220 8-613-36, FL2208-625-36 FL220860836, FL2208606-36 , FL220861236 , FL2208630-36 , FL2208613-36, FL220862536, FL2208-608-48, FL2208-606-48 , FL2208-612-48 , FL2208-630-48, FL2208-613-48, FL2208-625-48, FL220860848, FL2208606-48 , FL220861248 , FL2208630-48 , FL2208613-48, FL220862548, FL2208-630, FL2208-630, FL2208-630, FL2208-630, FL2214-630, FL2215-630
