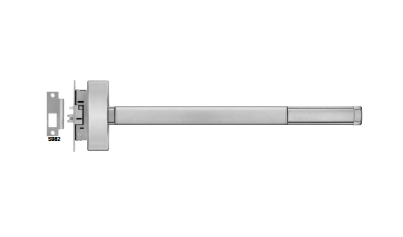

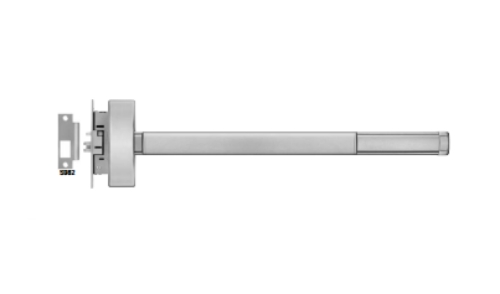

Precision FL2308 Apex Fire Rated Mortise Exit Device, Key Locks/Unlocks Lever/Knob
Product Details
Precision FL2308 Apex Fire Rated Mortise Exit Device - Key Locks/Unlocks Lever/Knob
Description and Features:
Door Sizes:
36" - 2'-7" to 3' Door Width
( If Required, cut to size in the field)
Device: Covers ANSI A115.1 (Type 86) Mortise Lock preparation
Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis: Investment Cast Steel, Zinc Dichromated.
UL Listed: Panic and Fire Exit Hardware.
ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.
Fits doors machined per ANSI A115.1 (Type 86) Mortise Lock preparation.
Backset: 2-3/4".
Case: Wrought Steel, Zinc Dichromate finish.
Lock front plate: 8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.
Latchbolt: Stainless Steel, Deadlocking, 3/4" throw, anti-friction.
Guardbolt: Stainless Steel, sliding type.
Strikes: No. S982, handed curved lip strike furnished standard
Stile Width: See Catalog Page # 36
Model: Stanley-Precision FL2303-LHR-630-36, FL2303-LHR-606-48 , FL2301-LHR-630-36 , FL2302-LHR-630-36, FL2303-RHR-630-36, FL2303-RHR-606-48 , FL2301-RHR-630-36 , FL2302-RHR-630-36
