Product Details

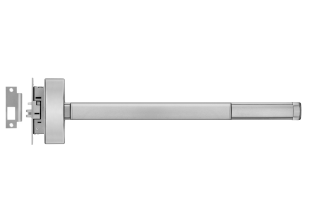

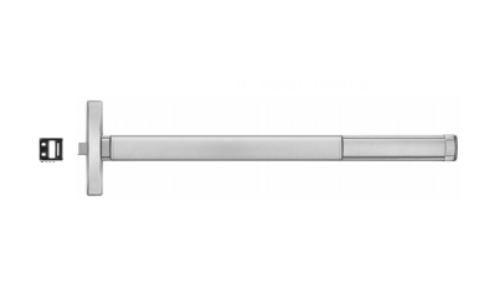

Precision FL2400-630 (FL2403) Apex Fire Rated Rim Exit Device - Narrow Stile - Satin Stainless Steel
Model:FL2401,FL2402,FL2403,FL2405,FL2414,FL2415
Functions(models) are field selectable. The “03" function is furnished standard
Description and Features:
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Strikes: No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, optional for Hollow Metal Door or Mullion applications.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
UL LISTED:Panic and Fire Exit Hardware.
Stile Width:See Catalog Page # 36
Model:Stanley-Precision FL2403-630-48, FL2403-630-36 , FL-2403-630-48, FL240363036
