Precision FL2601 Apex Concealed Vertical Rod Exit Device, Exit Only, Cover Plate Prep,. Narrow Stile, Fire Rated
Product Details

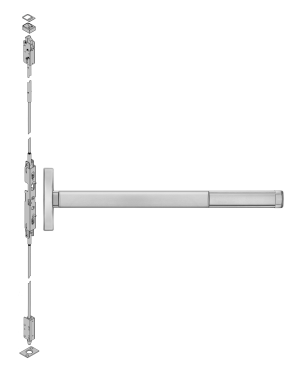

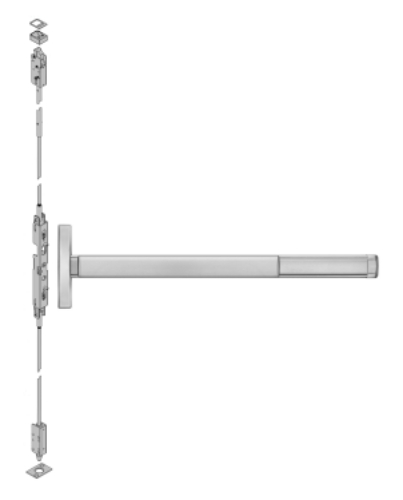

Precision 2601 Apex Concealed Vertical Rod Exit Device, Exit Only, Cover Plate Prep, Narrow Stile, Fire Rated
Description and Features:
Doors:For all types of metal single and double door applications
Door Sizes:
Width:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Height:7'
- For 7’-0" doors
8'- For 8’-0" door Heights
10'- For 10’-0" door Heights
Base Material:Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
Top StrikeNo. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.
Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.
Dogging:1/4" turn hex key dogging standard.
UL Listed: Panic and Fire Exit Hardware.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

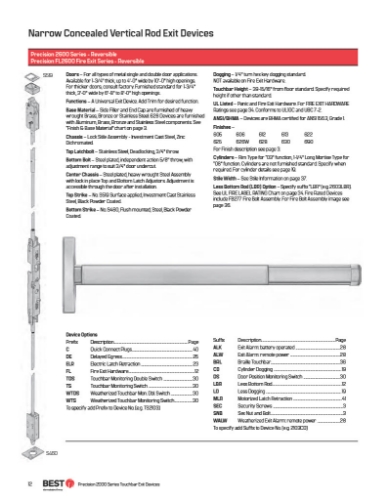

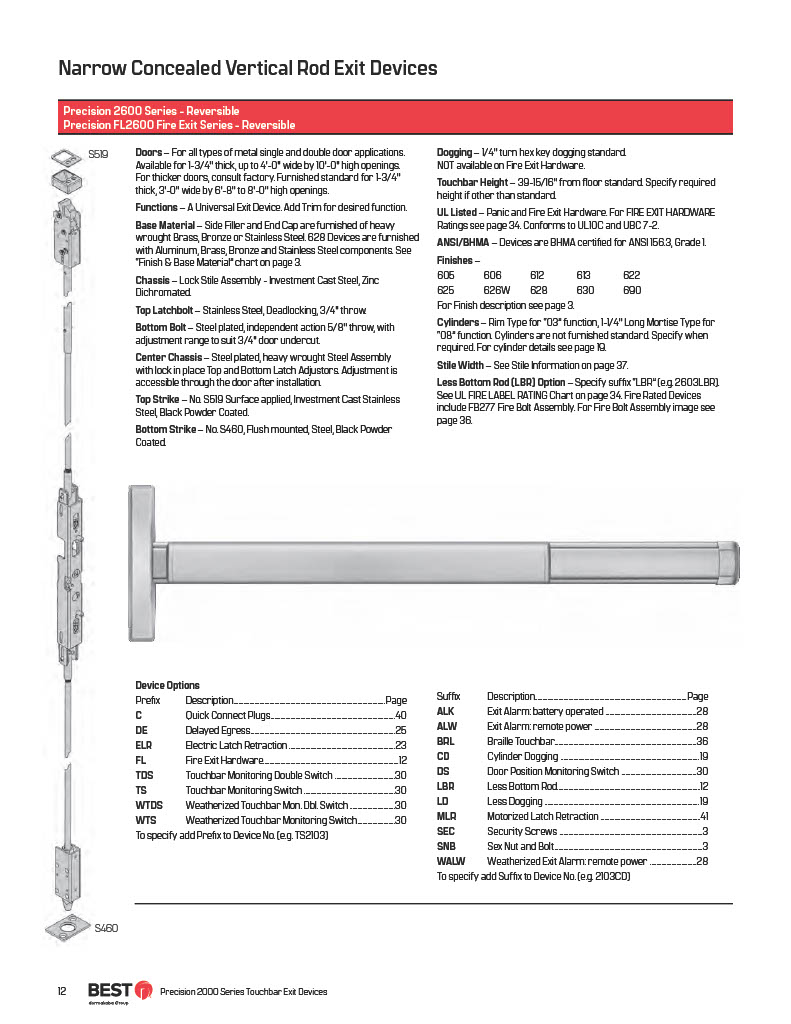

Stile Width:See Catalog Page # 36
Model:Stanley-Precision FL2601-630-36, FL2602-630-48 , FL2603-628-36 , FL2605-628-48, 2605-630-36, 2605-630-48 , 2605-628-36 , 2605-628-48, 2602-630-36, 2601-630-48 , FL2608-628-36 , 2602-628-48, FL2614-630-36, FL2615-630-48 , 2614-628-36 , 2615-628-48
